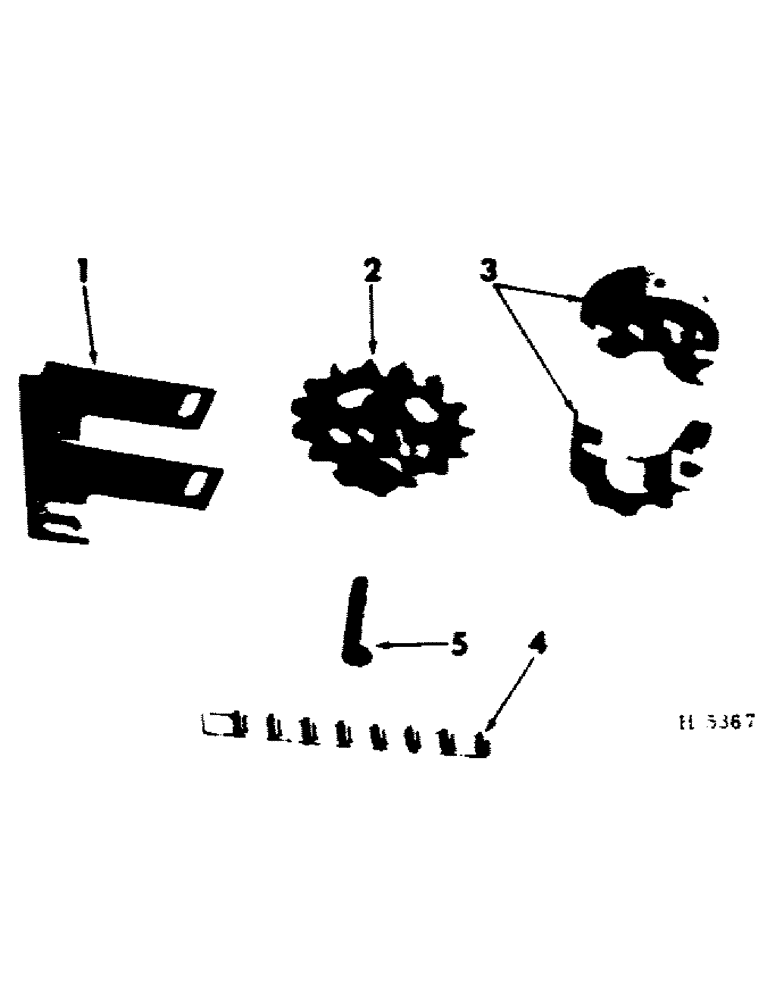

Запчасти Case IH 10 (A-17) - SPEED REDUCER, SPECIAL, GRAIN AND FERTILIZER

1

604534R92

BRACE, reducer mounting

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

608877R1

SPROCKET, 15T & 6T fertilizer reducer (1 used 13 x 7) (2 used 16 x 7, 18 x 7 & 16 x 8) (Combination drill)

1шт.

2

604530R1

SPROCKET ASSY.

SPROCKET, 15T & 7T grain reducer

2шт.

18713R1

SCREW,Short NK, 1/2"-13 x 4 1/2", G2

1/2 X 4-1/2" CRG BOLT

2шт.

178374R1

WASHER

17/32 X 1-1/4 X 16 GA WASHER

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

3

604529R1

SPROCKET ASSY.

SPROCKET, 10T roller split

4шт.

139329

SET SCREW,Hex Soc, 1/4"-20 x 5/8"

1/4 X 5/8" HDLS CONE-PT SET SCREW

8шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 X 1-1/2" BOLT

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

CHAIN, grain reducer drive (Order 1-CS-32 steel 10 ft chain & reduce to 24 links)

1шт.

4

CAHIN, fertilizer reducer drive (Order 1-CS-32 steel 10 ft chain & reduce to 23 links)

1шт.

5

604531R1

SPACER

JOURNAL, reducer sprocket

2шт.

18713R1

SCREW,Short NK, 1/2"-13 x 4 1/2", G2

1/2 X 4-1/2" CRG BOLT

2шт.

178374R1

WASHER

17/32 X 1-1/4 X 16 GA WASHER

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.
