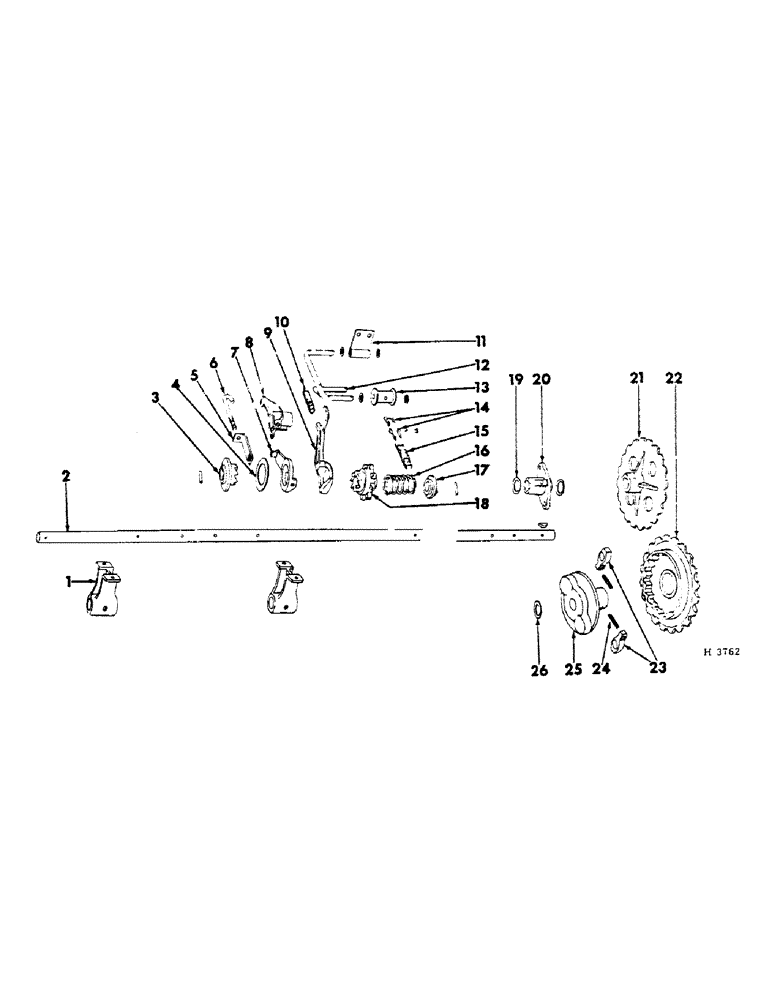

Запчасти Case IH 10 (A-16) - MAIN DRIVE PARTS

1

603120R1

BEARING

counter shaft inner (2 used 16 x 6) (3 used 12 x 7 & 13 x 7) (4 used 20 x 6, 24 x 6, 16 x 7, 18, 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

1/8" - 65 DEGREE ELBOW LUB-FITTING (1 per brg)

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16 X 7/8" BOLT

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

5/16 X 1" BOLT (Not 16 x 6, 12 x 7 & 13 x 7)

1шт.

120376

NUT,5/16"-18, G5

(1 per bolt) 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

2

603142R1

SHAFT, drive counter (12 x 7)

1шт.

2

603143R1

SHAFT, drive counter (13 x 7)

1шт.

2

603136R1

SHAFT, drive counter LH (16 x 6)

1шт.

2

603138R1

SHAFT, drive counter LH (20 x 6)

1шт.

2

603140R1

SHAFT, drive counter LH (24 x 6)

1шт.

2

603144R1

SHAFT, drive counter LH (16 x 7)

1шт.

2

604358R1

SHAFT, drive counter LH (16 x 8)

1шт.

2

603146R1

SHAFT, drive counter LH (18 x 7)

1шт.

2

606375R1

SHAFT, drive counter LH (20 x 8)

1шт.

2

605125R1

SHAFT, drive counter LH (16 x 10)

1шт.

2

603137R1

SHAFT, drive counter RH (16 x 6)

1шт.

2

603139R1

SHAFT, drive counter RH (20 x 6)

1шт.

2

603141R1

SHAFT, drive counter RH (24 x 6)

1шт.

2

604359R1

SHAFT, drive counter RH (16 x 8)

1шт.

2

603145R1

SHAFT, drive counter RH (16 x 7)

1шт.

2

603147R1

SHAFT, drive counter RH (18 x 7)

1шт.

2

606376R1

SHAFT, drive counter RH (20 x 8)

1шт.

2

605126R1

SHAFT, drive counter RH (16 x 10)

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1 per shaft 3/16" x 1 1/2"

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1 per shaft 1/4" x 1 1/4", Slotted

1шт.

3

603116R1

COLLAR CLAMP

COLLAR, 8T grain drive clutch (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 10)

1шт.

4

603265R1

WASHER

2 x 3-1/8 x 14 ga clutch (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

5

603181R1

SUPPORT

EXTENSION, grain drive clutch rod (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8 20 x 8 & 16 x 10)

1шт.

6

603151R1

ROD

grain drive clutch shifter (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

120377

NUT,3/8" - 16, Gr 5

(2 per rod) 3/8"-16, G5

1шт.

7

603133R1

CAM

grain drive clutch throw out (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

1/8" - 65 DEGREE ELBOW LUB-FITTING (1 used per cam)

1шт.

21782R1

WASHER

21/32 X 1-1/2 X 16 GA WASHER (1 used per cam)

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , 1 used per cam 1/8" x 1"

1шт.

8

603132R1

ARMATURE

ARM, clutch shifter rod (1 used on 12 x 7 & 13 x 7) ( 2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

18676R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2

5/16 X 2-1/4" CRG BOLT (1 per arm)

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

120376

NUT,5/16"-18, G5

(1 per bolt) 5/16"-18, G5

1шт.

9

603131R1

PLATE ASSY.

PLATE, clutch throw out cam (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

10

4A

SPRING

chain tightener (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

11

603182R1

BRACKET, chain tightener arm (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT (2 per bracket)

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 used per bolt) 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

12

603152R11

ARM, chain tightener (1959-1961)

1шт.

12

606253R91

ARM

chain tightener (1962 & since) (1 used 12 x 7 & 13 x 7) (2 used 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

178373R1

WASHER

17/32 X 1 X 16 GA WASHER

6шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

7шт.

13

603118R1

ROLLER

drive chain tightener large (1 used 12 x 7 & 13 x 7) (2 used 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

13

3240A

ROLLER

drive chain tightener small (1 used 12 x 7 & 13 x 7) (2 used 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

14

32X

COUPLER LINK W/PIN, chain (1959)

1шт.

15

CHAIN, grain drive (1959) (Order 1 - CM-32 malleable 10 ft chain, reduce to 34 links & add 1 - 32X coupler) (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

15

CHAIN, grain drive (1960 & since) (Order 1 - CS-32 steel 10 ft chain & reduce to 36 links) (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

16

35AC

SPRING

drive clutch (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

17

603117R1

COLLAR CLAMP

COLLAR, drive clutch spg (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

18

603115R1

DRIVE SPROCKET

SPROCKET, 8T grain drive (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 6, 20 x 6, 24 x 6, 16 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

19

Q3481

WASHER

1-1/32 x 1-1/2 x 16 ga

1шт.

20

603121R1

HUB CAP

BEARING, countershaft outer

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

1/8" - 65 DEGREE ELBOW LUB-FITTING

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1" CRG BOLT

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

21

603302R1

SPROCKET, 20T drive (16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

2шт.

113782

KEY

1/4 X 1" NO. 15 WOODRUFF KEY

2шт.

NLS

NO LONGER SERVICED

SPLIT (COTTER), 3/16" x 2"

2шт.

22

603301R1

DRIVE SPROCKET

SPROCKET, 20T drive (12 x 7 & 13 x 7)

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

23

3589A

PAWL

ratchet (12 x 7 & 13 x 7)

4шт.

24

606245R1

SPRING

SPRIING, pawl (12 x 7 & 13 x 7)

4шт.

25

603122R11

HOUSING, ratchet (12 x 7 & 13 x 7)

2шт.

617978R1

PIN,3/8" x 2 1/2", Coiled

2шт.

26

Q3480

WASHER

1-1/32 x 1-1/2 x 11 ga (12 x 7 & 13 x 7)

2шт.
