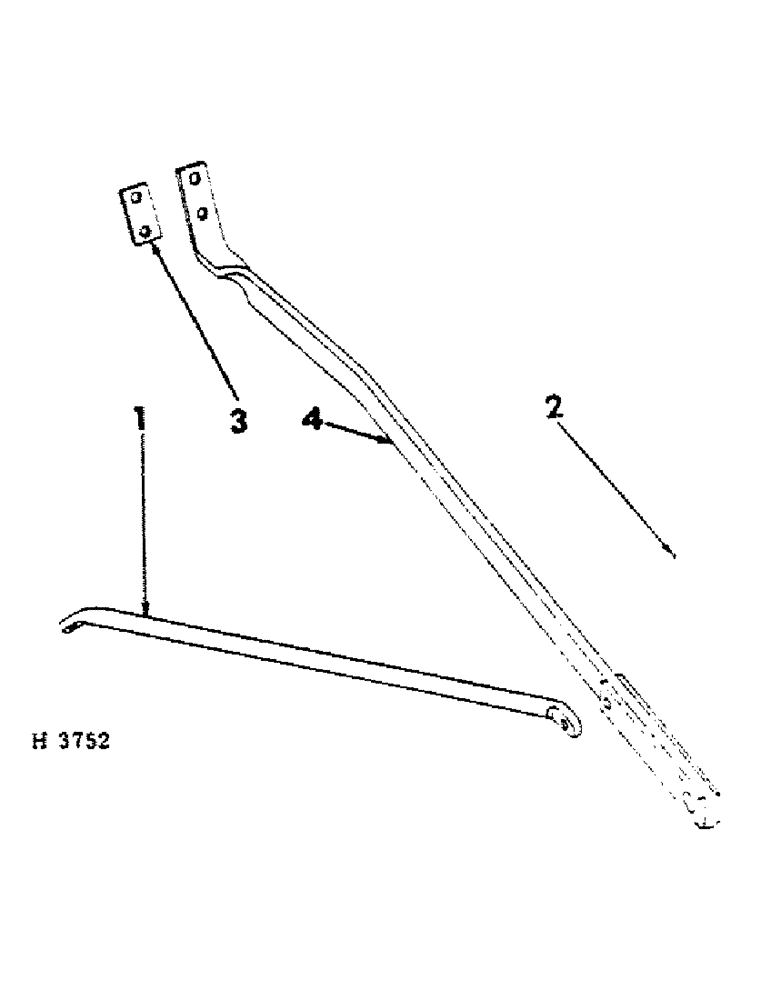

Запчасти Case IH 10 (A-15) - REAR TRAILING HITCH ATTACHMENT, 16 X 7, 18 X 7, 16 X 6, 20 X 6, 24 X 6, 16 X 8, 16 X 10, AND 20 X 8

1

603675R1

BRACE, drawbar LH

1шт.

2

603676R1

BRACE, drawbar RH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

3/8 X 1" CRG BOLT

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 X 2-1/2" BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

3

603673R1

SPACER, frame channel

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 X 1-3/4" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

603674R11

DRAWBAR, trailing hitch

1шт.

108179

1/2 X 1-3/4" BOLT

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 X 2-1/2" BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.
