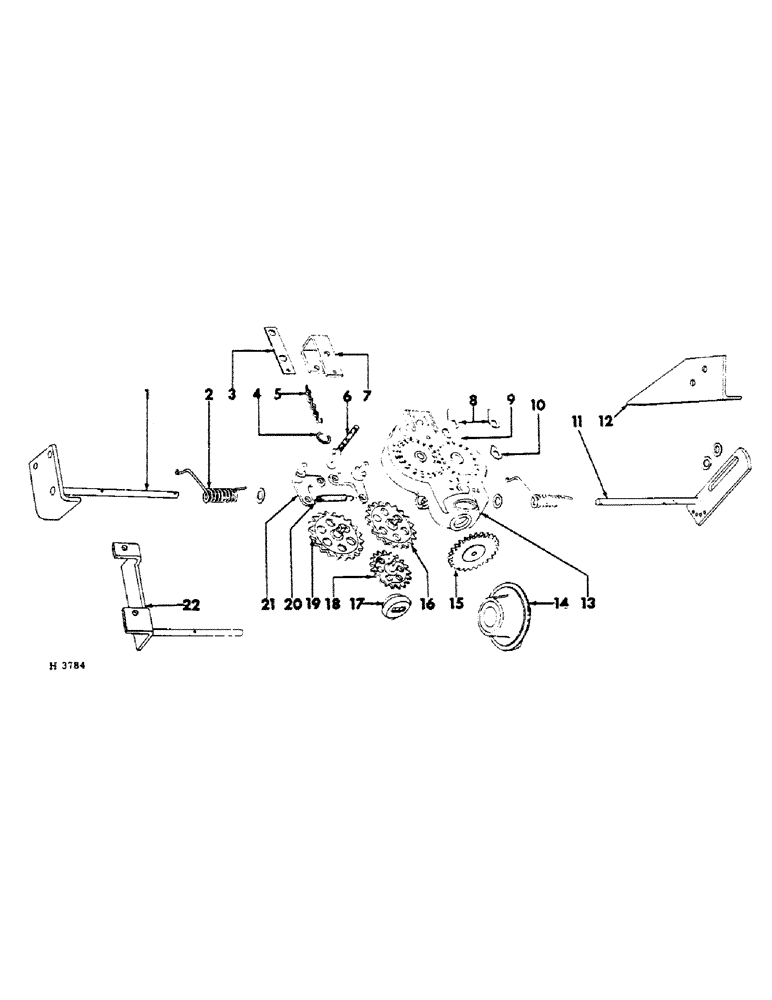

Запчасти Case IH 10 (A-14) - LAND MEASURE

1

604092R11

BRACKET, (16 x 6, 12 x 7 & 13 x 7)

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 X 3/4" BOLT

2шт.

469668R1

WASHER

13/32 X 3/4 X 16 GA WASHER

1шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

1шт.

Q3641

WASHER

13/32 X 3/4 X 24 GA WASHER

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

11529PA

SPRING

pressure

1шт.

3

604094R1

CLIP, land measure (16 x 6, 12 x 7, 13 x 7 & 16 x 10)

1шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

1шт.

4

604097R1

RING, throw-out chain

1шт.

5

604098R91

CHAIN, throw-out

1шт.

6

604090R1

EYEBOLT, throw-out chain

1шт.

120376

NUT,5/16"-18, G5

2шт.

7

604095R1

CLIP, (20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8 & 20 x 8)

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 X 2" BOLT

1шт.

32-1212

COTTER PIN,3/16" x 3/4"

5/16 X 3/4" C-PIN

1шт.

120376

NUT,5/16"-18, G5

1шт.

1202214

5/16" LK-WASHER

1шт.

8

N62677

POINTER, indicator long

2шт.

9

N2584

CASE, land measure

1шт.

10

N62678

POINTER, indicator short

1шт.

11

604093R11

BRACKET, (20 x 6, 24 x 6,16 x 7 & 18 x 7)

1шт.

11

604539R11

BRACKET, (16 x 8)

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16 X 7/8" BOLT

2шт.

469668R1

WASHER

13/32 X 3/4 X 16 GA WASHER

1шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

1шт.

Q3641

WASHER

13/32 X 3/4 X 24 GA WASHER

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

604096R1

BRACKET, (20 x 6, 24 x 6, 16 x 7, 18 x 7 & 16 x 8)

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

5/16 X 1" BOLT

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

603287R91

LAND MEASURE, 16 x 6 (See note)

1шт.

13

603288R91

LAND MEASURE, 20 x 6 (See note)

1шт.

13

603289R91

LAND MEASURE, 24 x 6 (See note)

1шт.

13

603290R91

LAND MEASURE, 12 x 7 (See note)

1шт.

13

603291R91

LAND MEASURE, 13 x 7 (See note)

1шт.

13

603292R91

LAND MEASURE, 16 x 7 (See note)

1шт.

13

603293R91

LAND MEASURE, 18 x 7 & 16 x 8 (See note)

1шт.

13

605145R91

LAND MEASURE, 20 x 8 & 16 x 10 (See note)

1шт.

14

603684R1

GEAR

WORM, counter shaft

1шт.

102892

SET SCREW

3/8 X 1/2" SQ-HD CUP-PT SET SCREW

1шт.

15

620775R1

GEAR

28T 20 x 6 outside

1шт.

15

N2613

GEAR, 35T 16 x 6 outside

1шт.

15

620404R1

GEAR

24T 24 x 6 outside

1шт.

15

603125R1

GEAR, 40T 12 x 7 outside

1шт.

15

620403R1

GEAR

38T 13 x 7 outside

1шт.

15

620960R1

GEAR, 30T 16 x 7 outside

1шт.

15

N2589

GEAR

26T 18 x 7 & 16 x 3 outside

1шт.

15

620961R1

GEAR

22T 20 x 8 & 16 x 10 outside

1шт.

13268R1

1/4 X 1-1/4" SQ-HD MACH BOLT

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

2586

GEAR, 20T land measure

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

17

N2588

GEAR, inside worm

1шт.

18

N2585

GEAR

19T worm

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

19

N2587

GEAR, 20T land measure

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

20

N62683

SPRING

gear stop

1шт.

21

N2591

STOP, land measure gear

2шт.

104086

RIVET,But Hd, 1/4" x 1 1/8"

1/4 X 1-1/8" B-HD RIVET

1шт.

22

605133R11

BRACKET, (20 x 8 & 16 x 10) (Not combination)

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

5/16 X 1" BOLT

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

469668R1

WASHER

13/32 X 3/4 X 16 GA WASHER

1шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

1шт.

Q3641

WASHER

13/32 X 3/4 X 24 GA WASHER

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
