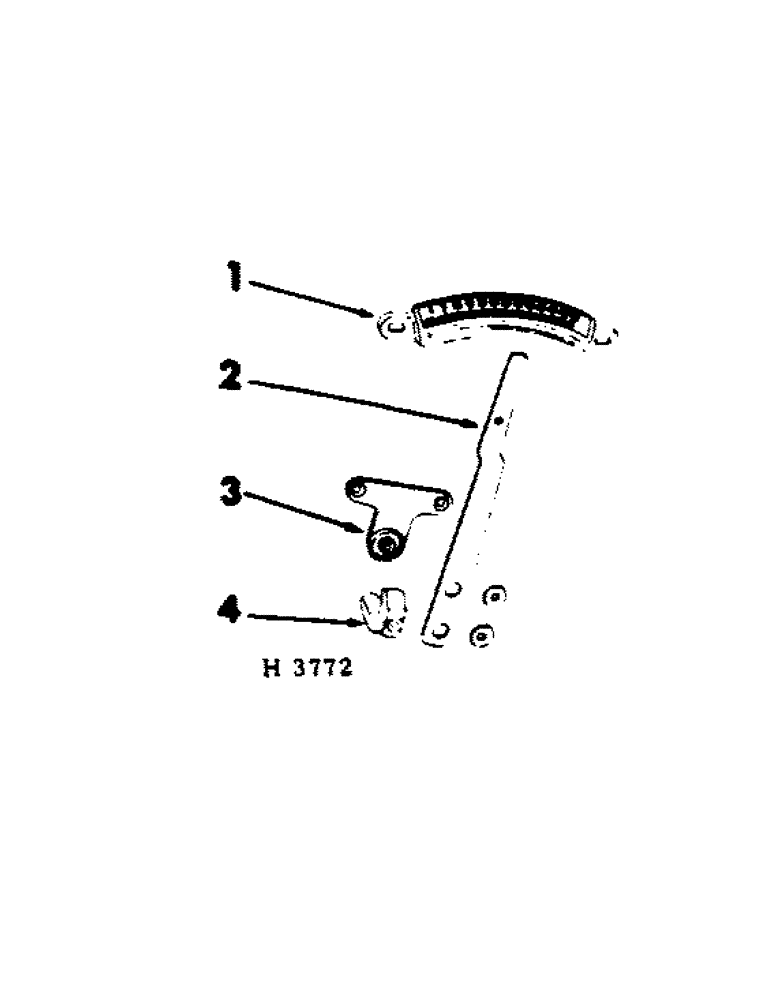

Запчасти Case IH 10 (A-13) - GRAIN FEED SHIFTER, PRIOR TO 1965 SEASON

1

603126R1

PLATE, grain indicator (16 x 6, 20 x 6 & 24 x 6)

1шт.

1

603127R1

INDICATOR

PLATE, grain indicator (12 x 7, 13 x 7, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

5/16 X 3/4" CRG BOLT

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

5/16" NUT

2шт.

2

603258R1

ARM

SHIFTER, grain feed shaft

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

5/16 X 3/4" CRG BOLT

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

5/16 X 1" CRG BOLT

1шт.

7500032

BUSHING

5/16" WING NUT

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

134238R1

WASHER

11/32 X 1 X 16 GA WASHER

1шт.

3

603128R1

BRACKET, grain feeder shifter

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

15542R1

5/16 X 3/4" NO. 3 PLOW BOLT

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

5/16" NUT

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

4

603898R1

FORK, feed shaft shifter

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

20893R1

WASHER

11/32 X 1 X 11 GA WASHER

1шт.

5/16" EXT-T LK-WASHER

1шт.
