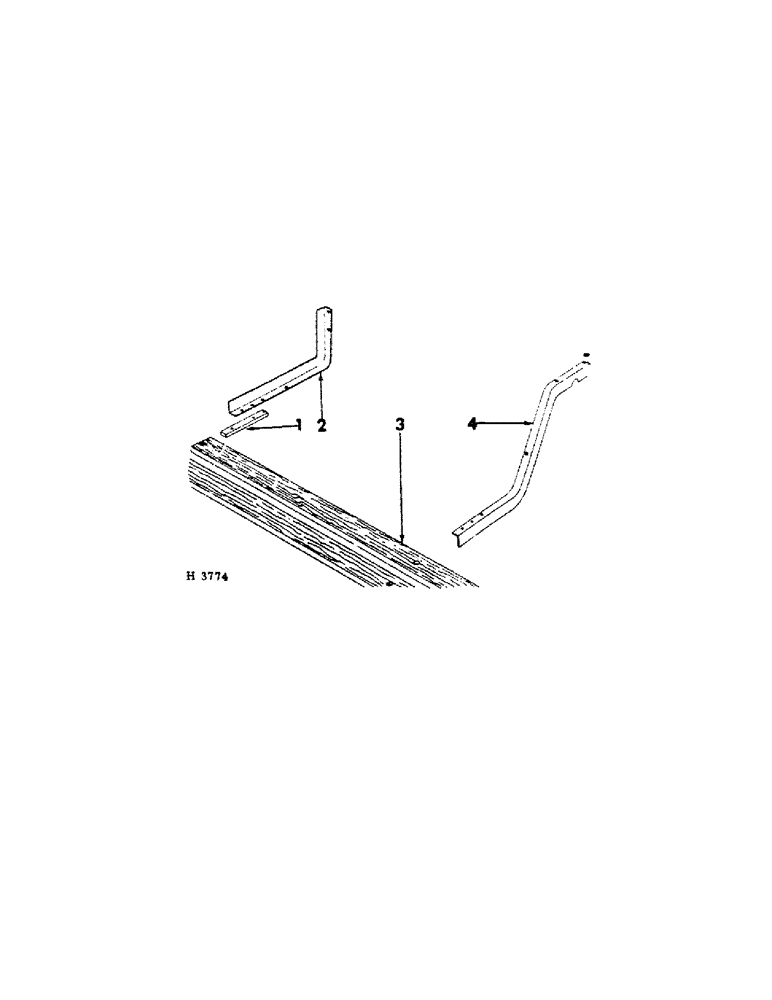

Запчасти Case IH 10 (A-09) - FOOTBOARD

1

603773R1

EXTENSION, footboard (Special w/fertilizer attachment) (4 used 16 x 6, 20 x 6, 24 x 6, 12 x 7, 13 x 7, 16 x 7, 18 x 7 & 16 x 8) (6 used 20 x 8 & 16 x 10)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT (1 per extension)

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

3/8 X 2-1/4" CRG BOLT (1 per extension)

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 per bolt) 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

2

603596R1

BRACE, footboard outer LH (Shown)

1шт.

2

603597R1

BRACE, footboard outer RH

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 X 7/8" BOLT (Combination drill)

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 X 1-3/8" BOLT (20 x 8 & 16 x 10)

2шт.

120377

NUT,3/8" - 16, Gr 5

(1 per bolt) 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

3

603598R1

FOOTBOARD (16 x 6)

2шт.

3

603599R1

FOOTBOARD (20 x 6)

2шт.

3

603600R1

FOOTBOARD (24 x 6)

2шт.

3

603601R1

FOOTBOARD (12 x 7)

2шт.

3

603602R1

FOOTBOARD (13 x 7)

2шт.

3

603603R1

FOOTBOARD (16 x 7)

2шт.

3

603604R1

FOOTBOARD (18 x 7)

2шт.

3

604391R1

FOOTBOARD (16 x 8)

2шт.

3

606407R1

FOOTBOARD (20 x 8)

2шт.

3

605172R1

FOOTBOARD (16 x 10)

2шт.

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

3/8 X 2" CRG BOLT (8 used 16 x 6, 20 x 6, 24 x 6, 12 x 7, 13 x 7, 16 x 7, 18 x 7 & 18 x 8) (12 used 20 x 8 & 16 x 10)

1шт.

New part number

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 used per bolt) 3/8"-16, G5

1шт.

4

607292R1

BRACE, footboard inner (Combination drill)

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 X 7/8" BOLT

2шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

603595R1

BRACE, footboard inner (Not combination drill) ( 2 used 16 x 6, 20 x 6, 24 x 6, 12 x 7, 13 x 7, 16 x 7, 18 x 7 & 16 x 8) (4 used 20 x 8 & 16 x 10)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 X 7/8" BOLT (1 per brace)

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 used per bolt) 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.
