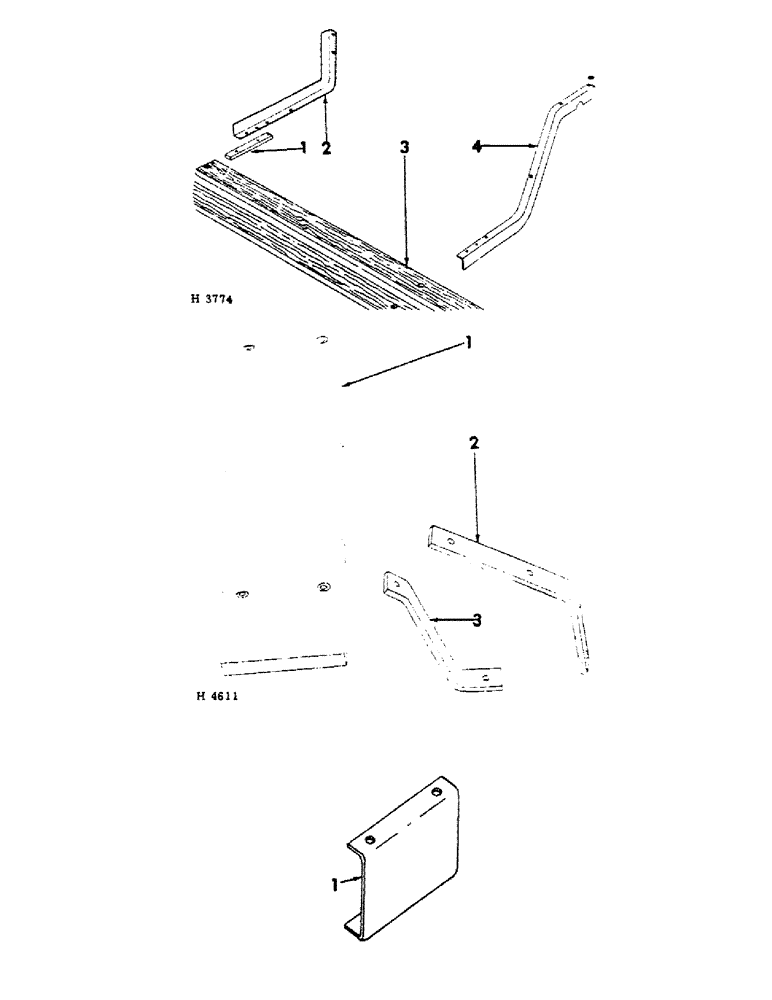

Запчасти Case IH 10 (A-09[1]) - FOOTBOARD, SPECIAL

1

605056R1

FOOTBOARD, 12 x 7

1шт.

1

605057R1

FOOTBOARD, 16 x 7

1шт.

1

605058R1

FOOTBOARD, 18 x 7 LH

1шт.

1

605059R1

FOOTBOARD, 18 x 7 RH

1шт.

1

605060R1

FOOTBOARD, 16 x 8

2шт.

1

606408R1

FOOTBOARD, 20 x 8

2шт.

1

605182R1

FOOTBOARD, 16 x 10

2шт.

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

3/8 X 2" CRG BOLT

6шт.

New part number

1шт.

18687R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 2

3/8 X 2-3/4" CRG BOLT

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

2

605054R1

SUPPORT, footboard upper (16 x 8, 16 x 10 & 20 x 8)

6шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

3

605055R1

SUPPORT, footboard lower (16 x 8, 16 x 10 & 20 x 8)

6шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.
