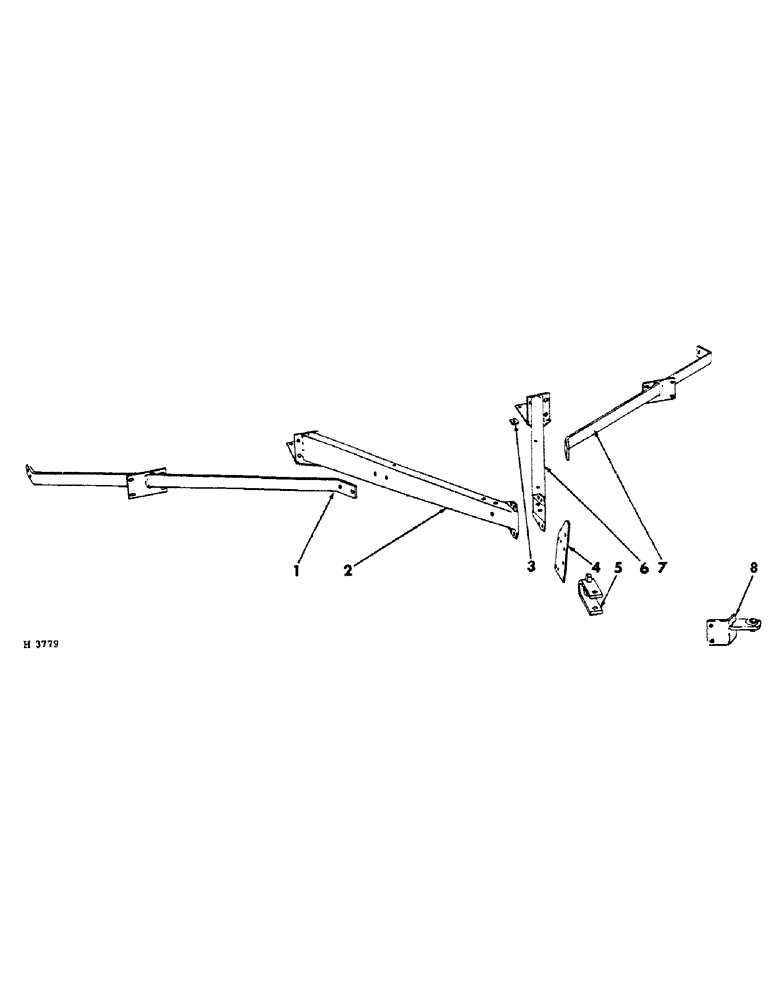

Запчасти Case IH 10 (A-08) - TRACTOR HITCH
№
Артикул
Название
Примечание
Количество
1
603362R91
BRACE, 20 x 6 hitch RH
1шт.
1
603364R91
BRACE, 24 x 6 hitch RH
1шт.
1
603366R91
BRACE, 18 x 7 hitch RH
1шт.
1
604375R91
BRACE, 16 x 8 hitch RH
1шт.
1
606391R91
BRACE, 20 x 8 hitch RH
1шт.
1
605148R91
BRACE, 16 x 10 hitch RH
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 X 1" BOLT
4шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 X 1-1/4" BOLT
6шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
1/2 X 1-1/2" BOLT (16 x 8)
1шт.
180188
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5
1/2 X 2-3/4" BOLT (16 x 8)
1шт.
619856R1
WASHER
13-32 X 1 X 16 GA WASHER
8шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
6шт.
2
603360R92
CHANNEL, draw RH (12 x 7 & 13 x 7)
1шт.
180179
BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5
1/2 X 1-3/4" BOLT
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
2
603358R91
CHANNEL, draw RH (16 x 6, 20 x 6, 24 x 6 , 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)
1шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
4шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 X 1-1/4" BOLT
3шт.
180181
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1/2 X 2" BOLT
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
11шт.
120384
WASHER,1/2"
LOCK, 1/2"
11шт.
3
603356R1
SPACER, channel bracket (12 x 7 & 13 x 7)
2шт.
3
650877R1
SPACER, channel bracket (16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)
2шт.
4
603340R1
PLATE, hitch draw (12 x 7 & 13 x 7)
1шт.
4
603341R1
PLATE. hitch draw (16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)
2шт.
5
603368R91
CLEVIS, draw (12 x 7 & 13 x 7) (Regular)
1шт.
5
603367R91
CLEVIS
draw (16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10) (Regular)
1шт.
N62060
5/8 X 2-13/16" STD-HD-DLD CLEVIS PIN
1шт.
Q3795
HEADED PIN,3/4" x 4"
3/4 X 4" STD-HD-DLD DRAW PIN
1шт.
575810R1
WASHER
21/32 X 1-1/2 X 11 GA WASHER
2шт.
432-1220
COTTER PIN,3/16" x 1 1/4"
Pin, Split (Cotter), 3/16" x 1 1/4"
1шт.
432-1624
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), , draw 1/4" x 1 1/2"
1шт.
6
603359R92
CHANNEL, draw LH (12 x 7 & 13 x 7)
1шт.
180179
BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5
1/2 X 1-3/4" BOLT
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
6
603357R91
CHANNEL, draw LH (16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)
1шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
4шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 X 1-1/4" BOLT
3шт.
180181
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1/2 X 2" BOLT
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
11шт.
120384
WASHER,1/2"
LOCK, 1/2"
11шт.
7
603361R91
BRACE, 20 x 6 hitch LH
1шт.
7
603363R91
BRACE, 24 x 6 hitch LH
1шт.
7
603365R91
BRACE, 18 x 7 hitch LH
1шт.
7
604374R91
BRACE, 16 x 8 hitch LH
1шт.
7
606390R91
BRACE, 20 x 8 hitch LH
1шт.
7
605147R91
BRACE, 16 x 10 hitch LH
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 X 1" BOLT
4шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 X 1-1/4" BOLT
6шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
1/2 X 1-1/2" BOLT (16 x 8)
1шт.
180188
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5
1/2 X 2-3/4" BOLT (16 x 8)
1шт.
619856R1
WASHER
13/32 X 1 X 16 GA WASHER
8шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
6шт.
8
606019R91
SUPPORT, hitch ball joint (1965-1966) (Special)
1шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
5/8 X 2" BOLT
2шт.
413-1264
BOLT,Hex, 3/4" - 10 x 4", Gr 5
3/4 X 4" BOLT ,Course threads
1шт.
21782R1
WASHER
21/32 X 1-1/2 X 16 GA WASHER
1шт.
575813R1
WASHER
25/32 X 1-1/4 X 11 GA WASHER
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
Выбрано товаров: 70
