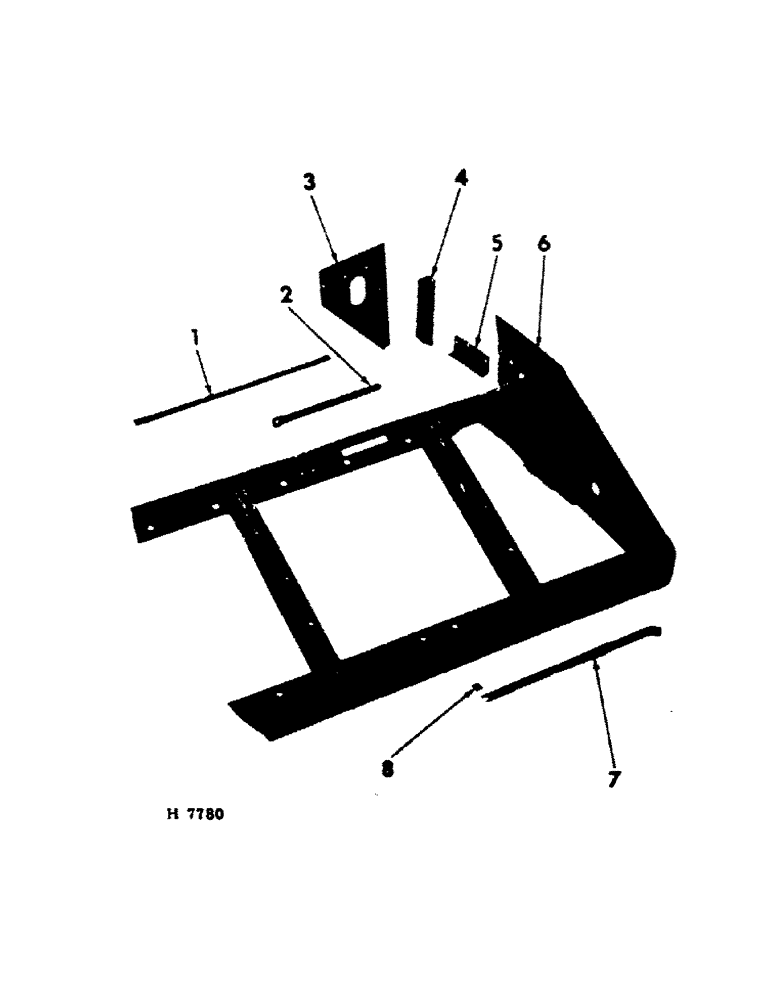

Запчасти Case IH 10 (A-05) - FRAME

1

605132R1

SUPPORT, end panel rear (20 x 8 & 16 x 10 drills w/fertilizer attachment)

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1" CRG BOLT

2шт.

130382

FRAME

3/8" LK-WASHER

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

607228R1

BRACE, end panel support (13 x 7, 16 x 7, 18 x 7 & 16 x 8 combination drill)

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 X 1-1/2" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

607882R1

BRACKET, frame end LH (Shown)

1шт.

3

607883R1

BRACKET, frame end RH

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 X 3/4" CRG BOLT

6шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

4

607233R1

ANGLE, end panel support LH (Shown)

1шт.

4

607234R1

ANGLE, end panel support RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

5

603191R1

BRACKET, panel inner LH (Old frame)

1шт.

5

603192R1

BRACKET, panel inner RH (Old frame)

1шт.

5

607277R1

BRACKET, panel inner LH (New frame) (Shown)

1шт.

5

607278R1

BRACKET, panel inner RH (New frame)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Not 20 x 8 & 16 x 10) Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT (20 x 8 & 16 x 10)

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

607275R92

FRAME, 16 x 6

1шт.

6

607230R92

FRAME, 20 x 6

1шт.

6

607231R92

FRAME, 24 x 6

1шт.

6

607229R92

FRAME, 12 x 7

1шт.

6

607263R93

FRAME, 13 x 7

1шт.

6

607268R93

FRAME, 16 x 7

1шт.

6

607274R93

FRAME, 18 x 7

1шт.

6

607269R93

FRAME, 16 x 8

1шт.

6

607295R92

FRAME, 20 x 8

1шт.

6

607294R92

FRAME, 16 x 10

1шт.

7

605131R1

SUPPORT, end panel front (20 x 8 & 16 x 10 drills w/fertilizer attachment)

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 X 1-1/2" BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

603901R1

WASHER

front support tapered (Not combination drill) (20 x 8 & 16 x 10 w/fertilizer)

4шт.
