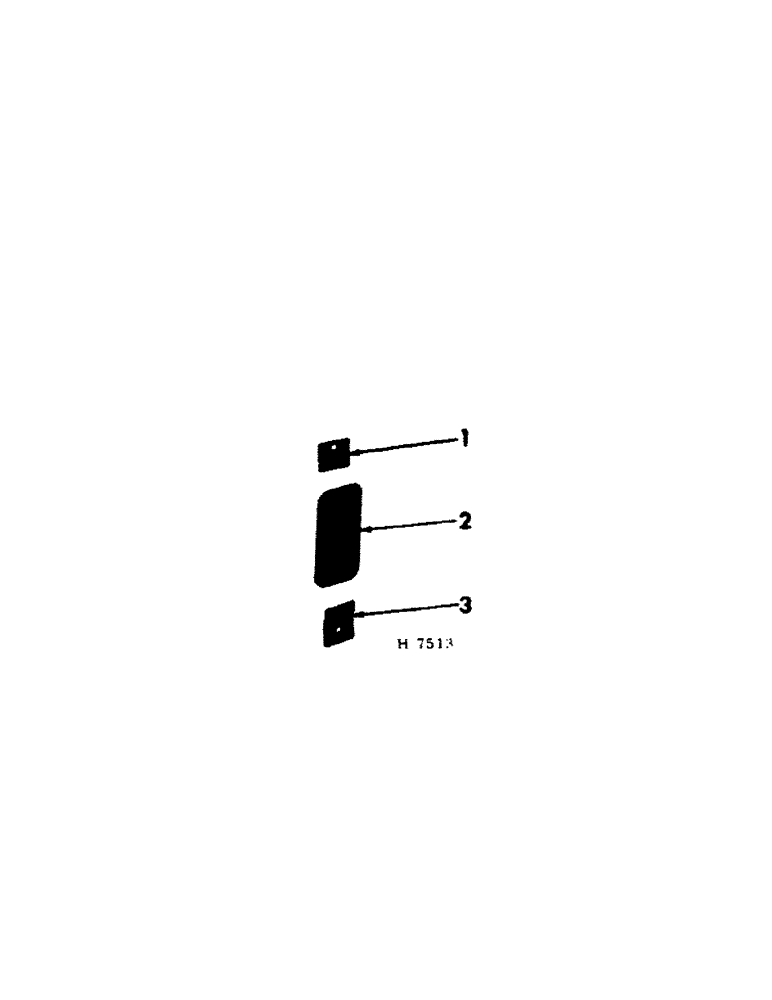

Запчасти Case IH 10 (A-05[1]) - GRAIN HOPPER SEED VISION WINDOW

1

603229R1

RETAINER, vision window top

2шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2" SLT-RD-HD SCREW

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

603264R1

GLASS

WINDOW, seed vision

2шт.

3

603230R1

RETAINER, vision window bottom

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT (2-16 x 10)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT (2 - not 16 x 10)

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
