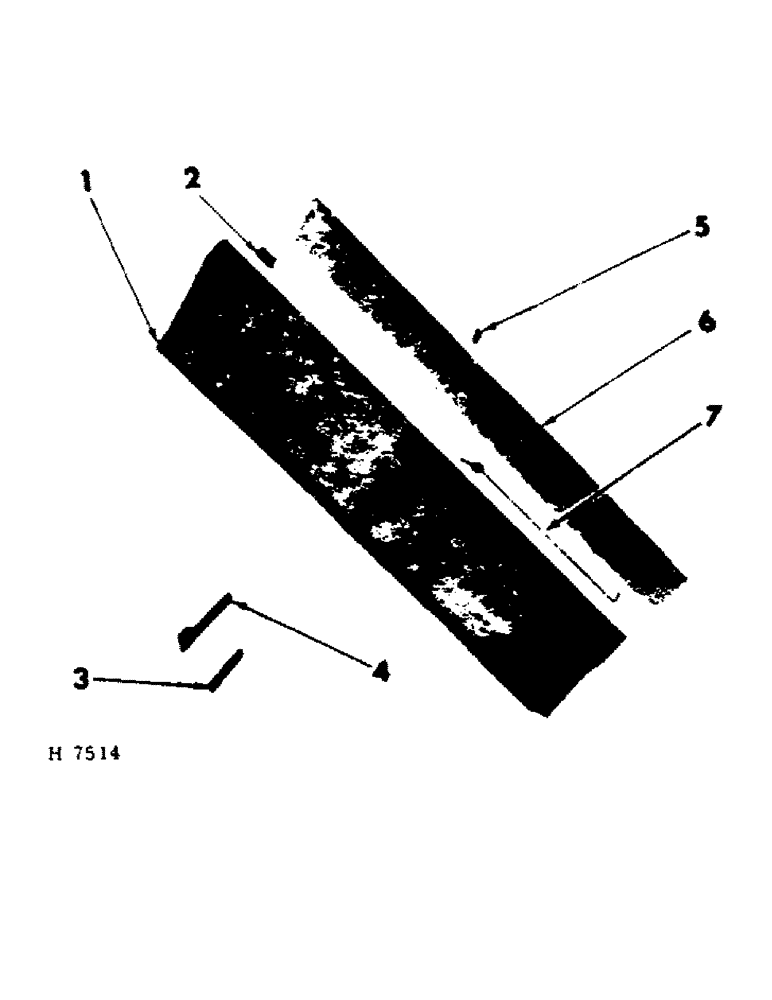

Запчасти Case IH 10 (A-04) - HOPPER LID

1

603273R91

LID, 16 x 6 hopper (Note A)

1шт.

1

603274R91

LID, 20 x 6 hopper (Note A)

1шт.

1

603275R91

LID, 24 x 6 hopper (Note A)

1шт.

1

603276R91

LID, 12 x 7 hopper (Note A)

1шт.

1

603277R91

LID, 13 x 7 hopper (Note A)

1шт.

1

603278R91

LID, 16 x 7 hopper (Note A)

1шт.

1

603279R91

LID, 18 x 7 hopper (Note A)

1шт.

1

604371R91

LID, 16 x 8 hopper (Note A)

1шт.

1

606384R91

LID, 20 x 8 hopper (Note A)

1шт.

1

605143R91

LID, 16 x 10 hopper (Note A)

1шт.

1

603573R91

LID, 16 x 6 hopper (Note B)

1шт.

1

603574R91

LID, 20 x 6 hopper (Note B)

1шт.

1

603575R91

LID, 24 x 6 hopper (Note B)

1шт.

1

603576R91

LID, 12 x 7 hopper (Note B)

1шт.

1

603577R91

LID, 13 x 7 hopper (Note B)

1шт.

1

603578R91

LID, 16 x 7 hopper (Note B)

1шт.

1

603579R91

LID, 18 x 7 hopper (Note B)

1шт.

1

604389R91

LID, 16 x 8 hopper (Note B)

1шт.

1

606400R91

LID, 20 x 8 hopper (Note B)

1шт.

1

604170R91

LID, 16 x 10 hopper (Note B)

1шт.

1

607280R91

LID, 13 x 7 hopper (Note C)

1шт.

1

607283R91

LID, 16 x 7 hopper (Note C)

1шт.

1

608509R91

LID, 18 x 7 hopper (Note C)

1шт.

1

607286R91

LID, 16 x 8 hopper (Note C)

1шт.

2

603213R1

HINGE, hopper lid (Note A)

1шт.

2

603026R1

HINGE

hopper lid (Note B & C) (4 used 16 x 6, 12 x 7 & 13 x 7) (5 used 20 x 6, 16 x 7, 18 x 7 & 16 x 8) (6 used 24 x 6) (7 used 20 x 8 & 16 x 10)

1шт.

113956

WASHER,Slotted Rd Hd, 1/4"-20 x 5/8"

1/4 X 5/8" SLT-RD-HD SCREW (2 per hinge)

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 per bolt) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 per bolt 1/4"

1шт.

3

603177R1

STRAP, hinge lower (Note A)

1шт.

3

603496R1

STRAP, hinge lower (Note B)

1шт.

104067

RIVET,But Hd, 3/16" x 1/2"

3/16 X 1/2" HARD RIVET (Note B)

1шт.

104068

3/16 X 5/8" HARD RIVET (Note A) But Hd, 3/16" x 5/8"

1шт.

615002R1

WASHER

13/64 X 1/2 X 16 GA WASHER

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16 X 1-1/4" G-PIN

1шт.

4

603176R11

STRAP, hinge upper (Note A)

1шт.

4

603495R11

STRAP, hinge upper (Note B)

1шт.

104067

RIVET,But Hd, 3/16" x 1/2"

3/16 X 1/2" B-HD RIVET (Note B)

1шт.

104068

3/16 X 5/8" B-HD RIVET (Note A) But Hd, 3/16" x 5/8"

1шт.

615002R1

WASHER

13/64 X 1/2 X 16 GA WASHER

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

5

N11662

HINGE, fertilizer cover (Note C)

5шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2" SLT-RD-HD SCREW

10шт.

109084

NUT,1/4"-20, G5

10шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK 1/4"

10шт.

6

607270R1

COVER, 13 x 7 fertilizer (Note C)

1шт.

6

607271R1

COVER, 16 x 7 fertilizer (Note C)

1шт.

6

608512R1

COVER, 18 x 7 fertilizer (Note C)

1шт.

6

607272R1

COVER, 16 x 8 fertilizer (Note C)

1шт.

7

607225R91

SUPPORT, hopper lid (Note C)

1шт.

120376

NUT,5/16"-18, G5

2шт.

20893R1

WASHER

11/32 X 1 X 11 GA WASHER

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
