Запчасти Case IH 96 (AC-07) - DOUBLE DISK OPENER AND SCRAPER, ONE PER ROW

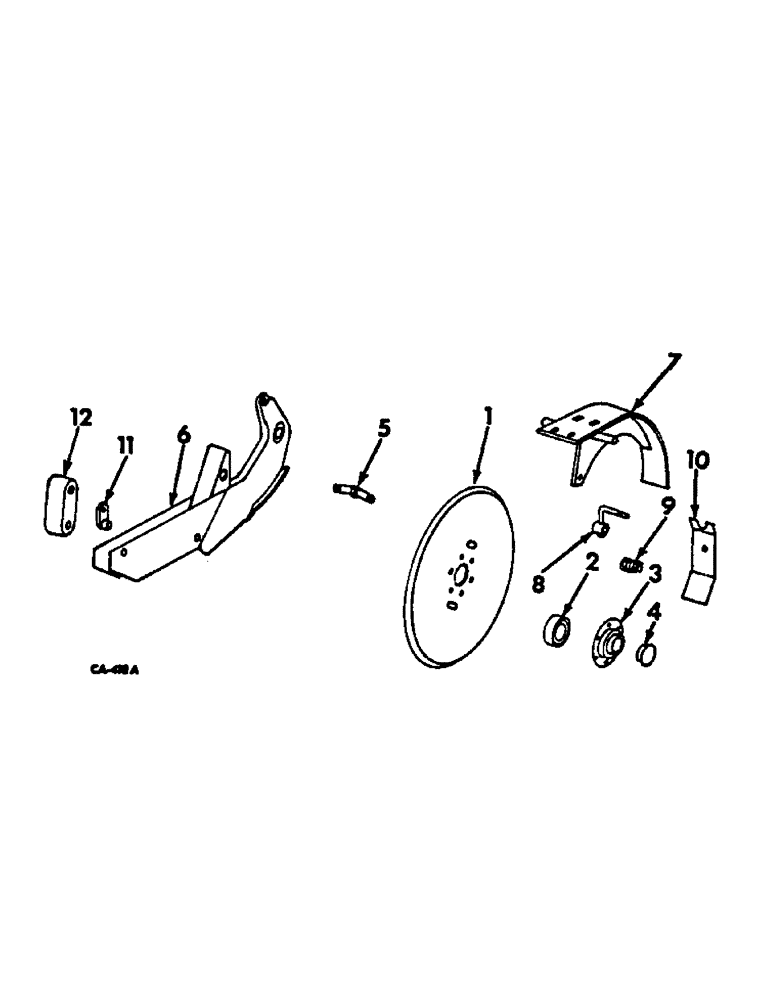

Схема запчастей Case IH 96 - (AC-07) - DOUBLE DISK OPENER AND SCRAPER, ONE PER ROW
7
3
11
8
6
2
10
5
1
9
4
12

Артикул

Название

Примечание

Количество

1

492756R1

DISC

DISK, 13-1/2 in. dia.

2шт.

2

492757R91

BALL BEARING

ball

2шт.

2

492757R91GV

BEARING

Value, Ball Bearing

2шт.

3

492710R1

RETAINER

FLANGE, bearing

2шт.

4

492709R1

CAP

bearing housing

2шт.

47-410

RIVET,FH, 1/4" x 5/8"

1/4 x 5/8 flat hd solid

12шт.

5

492750R1

BOLT,5/8" - 11

double disk

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 znp hex. jam

1шт.

18266R1

NUT, 5/8-11 hex. jam LH thd

1шт.

6

492705R92

BRACKET

ASSY, double disk

1шт.

14078R1

RIVET, 3/8 x 2-1/8 x 74 deg csk hd solid

1шт.

14080R1

RIVET, 3/8 x 2-1/4 x 74 deg csk hd solid

1шт.

14072R1

RIVET, 3/8 x 2 x 74 deg csk hd sld

1шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 znd sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

7

492702R1

GUARD

ASSY, double disk opener

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

3/8 x 3/4 x 16 ga C-Z

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

8

474344R91

SPACER

ASSY, scraper

2шт.

120376

NUT,5/16"-18, G5

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

2шт.

9

6633

SPRING

2шт.

10

471240R1

SUPPORT

SCRAPER, disk

2шт.

11

492708R1

BLOCK

runner

1шт.

12

(Not used in this application)

1шт.

Выбрано товаров: 35
