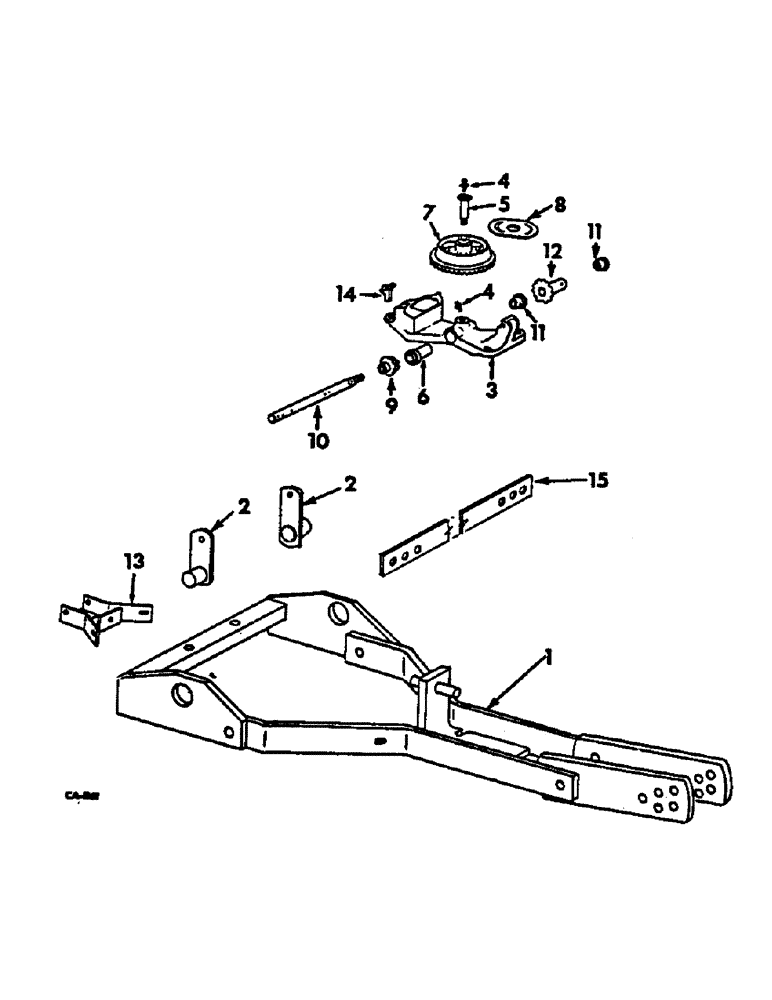

Запчасти Case IH 96 (AC-06) - PLANTER FRAME AND JOCKEY BAR

1

542343R1

FRAME ASSY, planter, one per row

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

2шт.

21635R1

PIN, 1/4 x 1-104 C-Z self-opening cot.

2шт.

19475R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 2

1/2 x 3-1/4 znd hex-hd mach

1шт.

19278R1

BOLT, 1/2 x 3-3/4 znd hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

2

542347R1

BRACKET ASSY, brg

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

3

492646R1

BRACKET

hopper

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 znd sq-nk crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF-2 str lub

2шт.

5

472119R1

STUD,1/2" - 13 x 2 23/64"

BOLT, ring gear hub

1шт.

6

492648R1

BUSHING,0.875" ID x 1.3" OD x 2.595"

hopper bracket

1шт.

7

492649R1

GEAR

ring 40T

1шт.

8

492651R1

PLATE

timing

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 znd hex-hd cap

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

492758R1

GEAR

seed hopper drive

1шт.

10

492653R3

GEAR, main drive

1шт.

178591

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, 1/2 C-Z int-ext-tooth lock

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

3шт.

11

492654R1

ADAPTER

sprocket

1шт.

12

492675R1

SPROCKET ASSY.

SPROCKET ASSY, 12T

1шт.

13

492678R1

BRACKET

ASSY, att

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

4шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

14

541905R1

NUT

LOCKING ASSY, nut

1шт.

18899R1

BOLT,Sq Hd, 5/16"-18 x 2 1/2", G2

5/16 x 2-1/2 znd sq-hd mach

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

15

471600R1

BAR, jockey

1шт.
