Запчасти Case IH 96 (AC-05) - PRESS WHEEL FRAME, ONE PER ROW

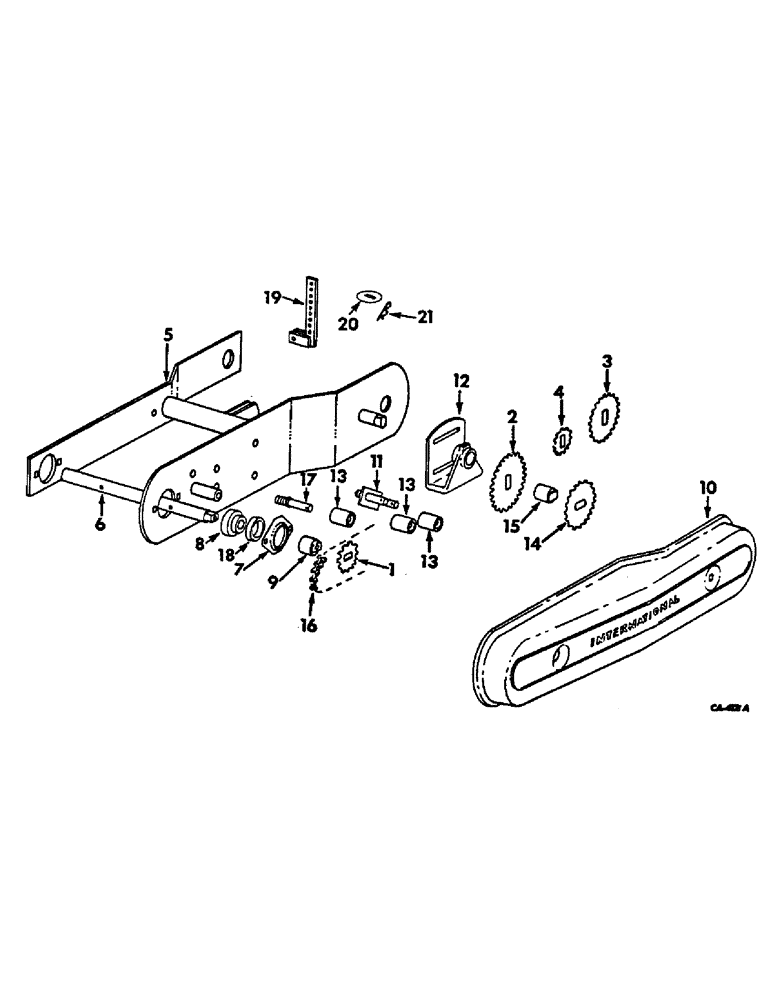

Схема запчастей Case IH 96 - (AC-05) - PRESS WHEEL FRAME, ONE PER ROW
10
15
16
19
6
18
20
7
14
3
4
9
13
17
13
11
21
1
5
12
8
13
2

Артикул

Название

Примечание

Количество

1

492655R1

SPROCKET ASSY.

SPROCKET, 13T

2шт.

2

492746R1

SPROCKET ASSY.

SPROCKET, 24 T

4шт.

3

492656R1

SPROCKET ASSY.

SPROCKET, 16 T

4шт.

4

492747R1

SPROCKET ASSY.

SPROCKET, 12T

4шт.

5

492657R2

FRAME ASSY, press wheel

2шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"

1шт.

6

492664R2

AXLE

press wheel

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

178591

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, 1/2 C-Z int-ext tooth lock

2шт.

7

492665R1

FLANGE

TTE, brg

8шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120376

NUT,5/16"-18, G5

8шт.

8

165482C91

BEARING ASSY,19.05mm ID x 42mm OD x 12mm W

w/o locking collar

4шт.

9

492667R2

HUB

drive

2шт.

10

492701R1

GUARD, drive chain LH

1шт.

10

540890R1

GUARD, drive chain RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

4шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

4шт.

11

493077R1

BRACKET

ASSY, idler

2шт.

12235R1

1/8" x 5/8", extended prong 1/8" x 5/8"

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

135629

GATHERING CHAIN

1/2 C-Z ext-tooth lock

2шт.

12

541498R1

BRACKET

tightener

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

8шт.

13

492759R1

ROLLER

idler

6шт.

14

524664R1

SPROCKET ASSY.

SPROCKET, 20T

2шт.

15

492673R2

HUB

sprocket drive

2шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 znd hex-hd mach

4шт.

178566

WASHER, 3/8 C-Z int-ext tooth lock

2шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

16

CHAIN, drive, use 67 links from 10 ft. roll marked 475879R91 and 1 connecting link 1306D

4шт.

17

493121R1

STUD

PIN, pivot idler

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

18

165483C11

BEARING

COLLAR W/SETSCREW, locking

4шт.

19

541495R1

STRAP

ASSY, depth adj

2шт.

24554R1

HEADED PIN,3/8" x 1"

PIN, 3/8 x 1 C-Z std-hd hardened

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Ext. prong 1/8" x 3/4"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

20

468420R1

WASHER

press wheel adj

12шт.

21

473865R91

LINCH PIN

PIN ASSY, depth stop

2шт.

Выбрано товаров: 47
