Запчасти Case IH 96 (AC-03) - MAIN FRAME

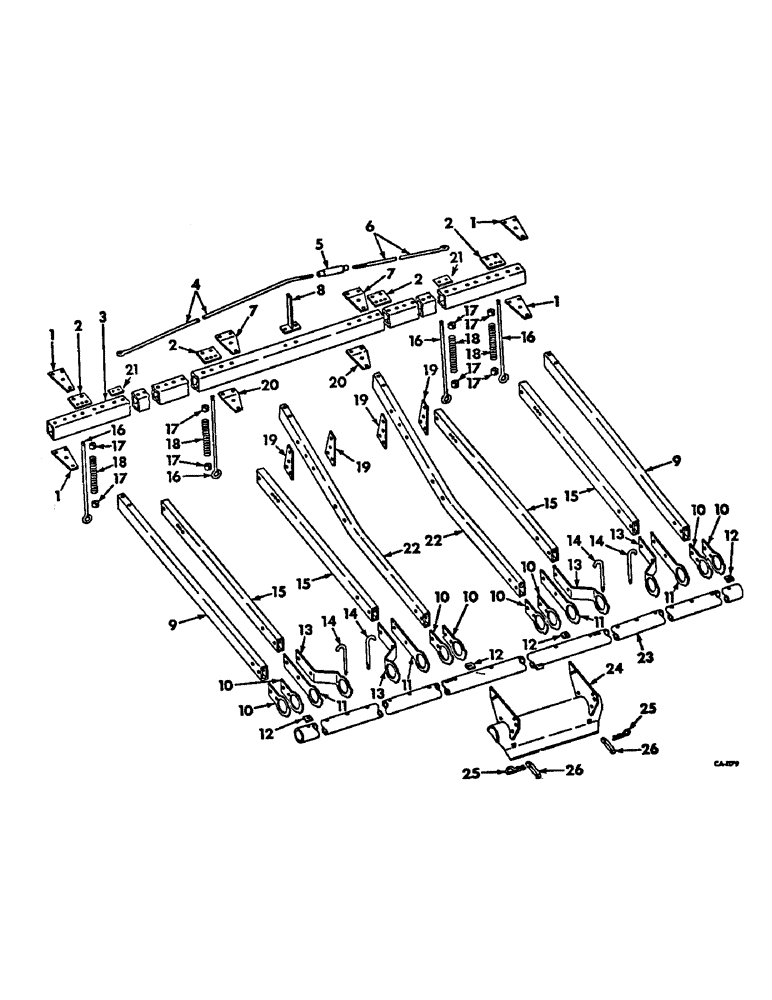

Схема запчастей Case IH 96 - (AC-03) - MAIN FRAME
11
19
10
6
18
14
14
17
24
17
17
16
3
9
16
19
17
20
1
18
17
1
25
1
7
21
10
22
4
14
18
17
25
7
2
18
10
13
16
19
13
10
15
15
22
2
19
10
9
20
21
17
15
26
2
23
2
10
11
26
5
12
10
13
14
10
17
1
12
13
16
12
12
11
15
8
11

Артикул

Название

Примечание

Количество

1

471576R1

PLATE, support brace

4шт.

18814R1

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2

1/2 x 4-1/2 znd hex-hd mach

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

2

471583R1

PLATE, pressure rod bracket support, one per row

1шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2-13 x 4 C-Z hex-hd mach, 2 per row

1шт.

120384

WASHER,1/2"

LOCK, , 2 per row 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 per row 1/2"-13, G5

1шт.

3

471582R1

PIPE, rear frame, 6-row and 4-row skip

1шт.

3

471581R1

PIPE, rear frame, for 4-row planters

1шт.

4

471587R1

ROD, truss long, 6-row and 4-row skip

1шт.

124847

COLLAR

5/8-11 C-Z hex. jam

1шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2-13 x 4-1/2 C-Z hex-hd cap

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

5

516347R1

TURNBUCKLE, truss rod, 6-row and 4-row skip

1шт.

6

471593R1

ROD, truss short, 6-row and 4-row skip

1шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2-13 x 4-1/2 C-Z hex-hd cap

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

7

483668R1

PLATE, support brace upper LH

1шт.

7

483669R1

PLATE, support brace upper RH

1шт.

18814R1

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2

1/2 x 4-1/2 znd hex-hd mach

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

8

471585R11

SUPPORT ASSY, truss rod, 6-row and 4-row skip

1шт.

9

483671R1

BRACE, outside support

2шт.

10

471573R1

PLATE, support brace

8шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2 x 3-1/2 C-Z hex-hd mach

4шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2 x 3 C-Z hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

11

471568R1

SUPPORT, beam straight, one per row

1шт.

12

471594R1

WASHER, locating

4шт.

21937R1

PIN, 1/2 x 3-9/16 C-Z std-hd

4шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot.

4шт.

13

471567R1

SUPPORT, beam offset, one per row

1шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2 x 3-1/2 C-Z hex-hd mach, 2 per row

1шт.

120384

WASHER,1/2"

LOCK, , 2 per row 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 per row 1/2"-13, G5

1шт.

14

471572R1

PIN, beam assy locating, one per row

1шт.

520175R1

CLIP

PIN, 3/16 x 2-7/8 Q.A. cot., one per row

1шт.

15

483665R1

BEAM, support, one per row

1шт.

16

471588R1

ROD, pressure, one per row

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot.

4шт.

17

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR ASSY, pressure rod, one per row

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2-13 x 5/8 sq-hd cup-pt set, for pressure spring attachment

1шт.

21803R1

SET SCREW,1/2" - 13 x 5/8", Steel

SCREW, 1/2-13 x 5/8 C-Z sq-hd cup-pt set

1шт.

18

6639

SPRING

pressure rod, special, for pressure spring attachment, 2 for 4-row, 3 for 6-row

1шт.

19

471579R1

BRACKET, chain, special

4шт.

19475R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 2

1/2 x 3-1/4 C-Z hex-hd mach

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

477527R1

PIN

1/2 x 2-7/8 std-hd

2шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

2шт.

20

483666R1

PLATE, support brace lower LH

1шт.

20

483667R1

PLATE, support brace lower RH

1шт.

18814R1

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2

1/2 x 4-1/2 znd hex-hd mach

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

21

542342R1

CLIP, frame truss reinforcement

1шт.

443156

SCREW, 1/2-13 x 4-1/2 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

22

483670R1

BRACE, inside support

2шт.

23

471570R21

PIPE ASSY, front frame, 6-row and 4-row skip

1шт.

23

471569R11

PIPE ASSY, front frame, for 4-row planters

1шт.

24

471589R92

SUPPORT ASSY, front frame

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

25

471194R1

AXLE PIN

PIN, 1/4 x 3-1/4 cd-pltd QA cotter

2шт.

26

471592R1

PIN, front frame support

2шт.

17176R1

LOCK PIN,3/16" x 1", Slotted

Pin, 3/16" x 1", Slotted

1шт.

Выбрано товаров: 76
