Запчасти Case IH 96 (AC-25) - GAUGE SHOE ATTACHMENT, 15 IN. WIDE, ONE PER ROW

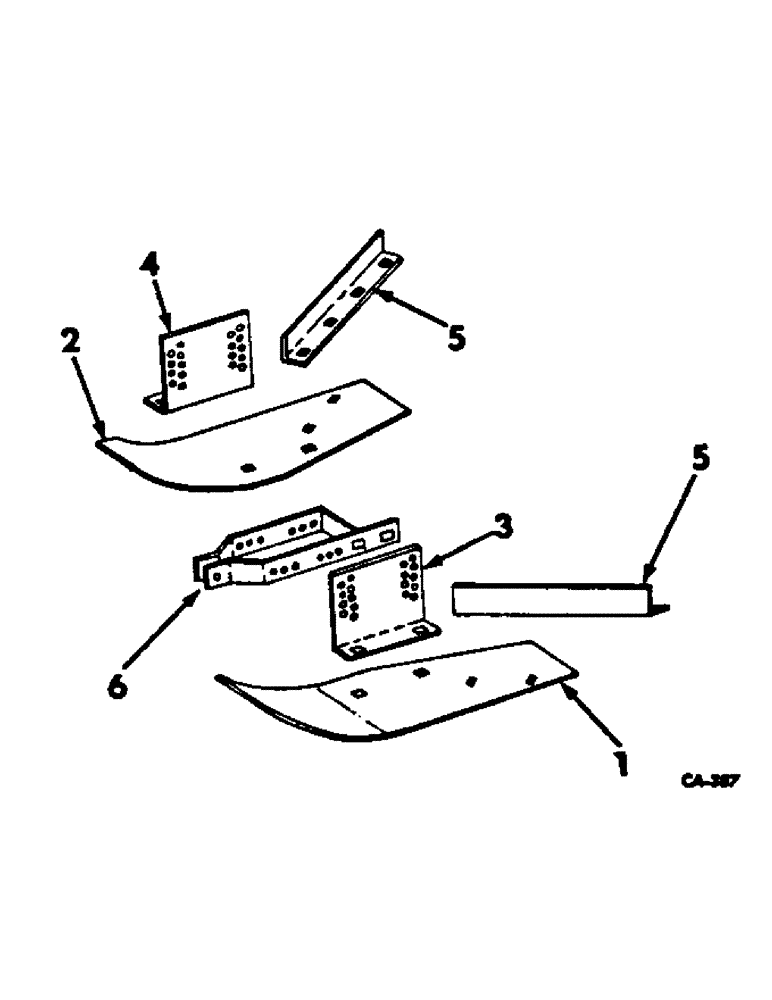

Схема запчастей Case IH 96 - (AC-25) - GAUGE SHOE ATTACHMENT, 15 IN. WIDE, ONE PER ROW
3
1
2
5
4
5
6

Артикул

Название

Примечание

Количество

1

474653R2

SHOE

LH

2шт.

19040R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1", Gr 2

BOLT, 7/16 x 1 C-Z no. 3 hd plow

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

4шт.

2

474654R2

SHOE

RH

2шт.

19040R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1", Gr 2

BOLT, 7/16 x 1 C-Z no. 3 plow

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

4шт.

3

474655R1

SUPPORT

LH

2шт.

4

474656R1

SUPPORT

RH

2шт.

22019R1

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 2

7/16 x 3-1/4 C-Z hex-hd mach

2шт.

20317R1

BOLT, 7/16 x 1-1/8 znd hex-hd mach

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

6шт.

5

PO25155

ANGLE

SWEEP, clod

4шт.

19040R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1", Gr 2

BOLT, 7/16 x 1 C-Z no. 3 hd plow

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

8шт.

6

492728R1

STRAP

ASSY, shoe

2шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 znd hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20869R1

WASHER

1/2 x 7/8 x 16 ga C-Z

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

Выбрано товаров: 23
