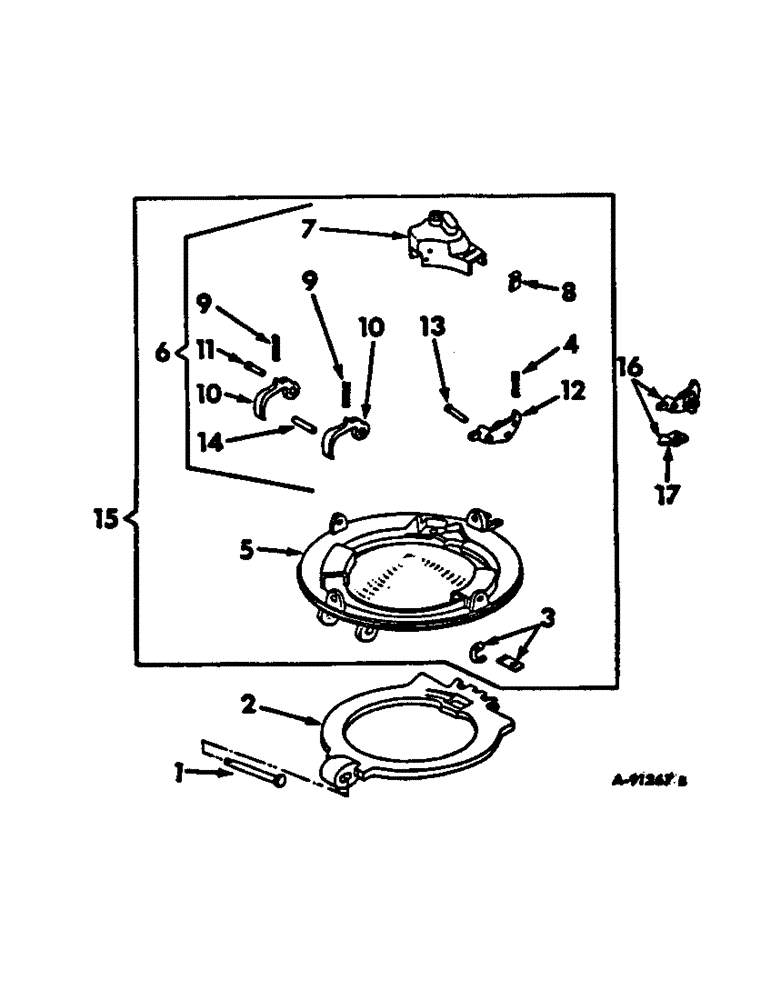

Запчасти Case IH 96 (AC-21) - BEET AND CORN PLANTER EQUIPMENT, ONE PER ROW

1

21959R1

HEADED PIN,5/16" x 3 1/2"

PIN, 5/16 x 3-1/2 C-Z std-hd

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

2

484888R1

PLATE ASSY.

PLATE, reversible bottom corn

2шт.

3

490272R1

VALVE SPRING

SPRING ASSY, bottom plate retainer

2шт.

4

542320R1

SPRING

knockout pawl

2шт.

5

BOTTOM, International hopper, order bottom assy, 488790R91

1шт.

6

484871R91

SERVICE KIT

corn double pawl

2шт.

6

484884R92

COVER

ASSY, beet double pawl, consists of ref nos 7 through 14

2шт.

7

COVER, double pawl, for corn order 484871R92, for beet order 484884R92

1шт.

8

484879R1

DOOR

GATE, double pawl cover

2шт.

9

484881R1

SPRING

cutoff pawl

4шт.

10

484875R1

PAWL

corn cutoff

4шт.

10

484874R1

PAWL

beet cutoff

4шт.

11

484883R1

PIN

3/16 x 1 knurled hd, cutoff pawl pivot

2шт.

12

484885R11

ARM

ASSY, corn roller knocker

2шт.

12

484872R11

ARM

ASSY, beet roller knocker

2шт.

488808R1

SCREW

no. 10 x 1/2 C-Z slt-pan-hd tap

2шт.

131015

WASHER

3/16 x 7/16 x .038 C-Z

2шт.

13

484882R1

PIN

3/16 x 1-1/2 knurled hd, knocker arm pivot

2шт.

14

22433R1

PIN,3/16" x 1 5/16"

3/16 x 1-5/16 C-Z chamfered str, cutoff pawl stop

2шт.

15

488790R91

BOTTOM

ASSY, International hopper, consists of Ref. nos. 1, 3, and 5 through 14

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

8шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga C-Z

8шт.

138538

LOCK WASHER

WASHER, 5/16 C-Z int-tooth lock

10шт.

181620

SCREW,Hex, 5/16" - 24 x 2", Gr 5

5/16-24 x 2 C-Z hex-hd cap

2шт.

124920

JAM NUT,Jam, 5/16"-24, G5

2шт.

16

484878R12

ARM

ASSY, small seed knocker, note

1шт.

436694

SCREW,Slotted Pan Hd, #8-32 x 7/16"

8-32 x 7/16 C-Z slt-pan-hd mach

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

120622

NUT,#8-32

2шт.

17

484880R2

STRIP

small seed knocker arm

2шт.
