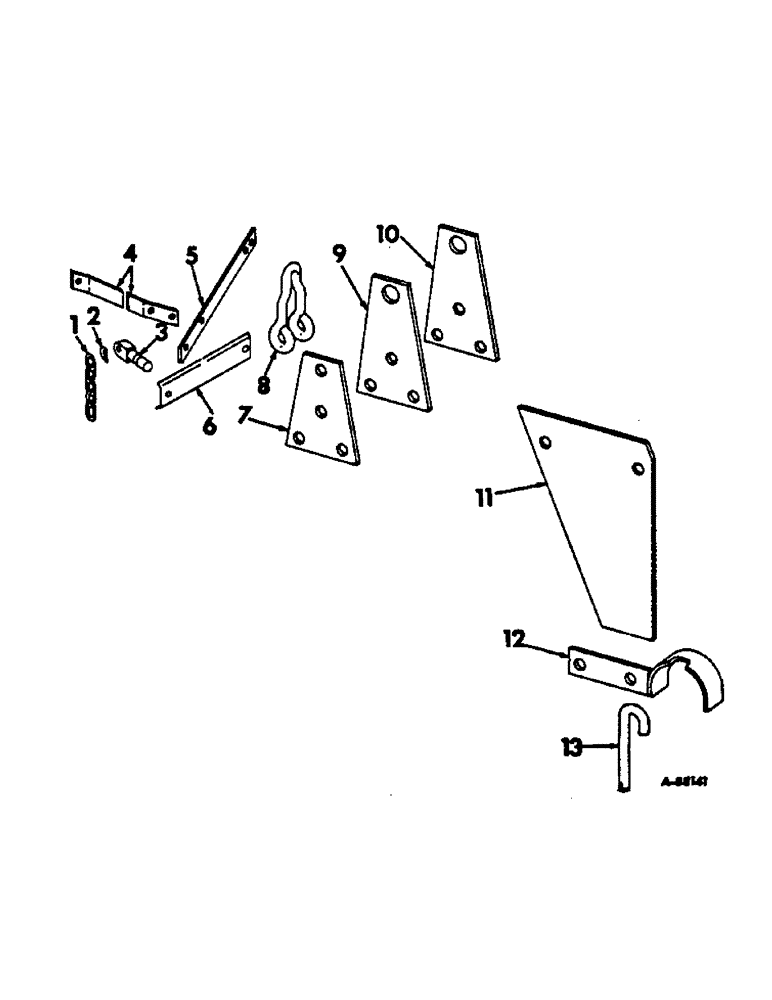

Запчасти Case IH 96 (AC-17) - COMPLETING PACKAGES, FRONT AND REAR SUPPORT BRACES AND CHAIN

1

471452R1

CHAIN, lift 20 links, see notes A and B

2шт.

1

472954R1

CHAIN, lift 31 links, see notes C and D

2шт.

2

PO26868A

WASHER, chain indicator, see notes A, B, C and D

2шт.

3

523090R1

PIN

EYEBOLT, hitch rockshaft, see notes A, B and D

2шт.

21637R1

PIN, 1/4 x 1-3/4 C-Z self-opening cot.

2шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga C-Z

2шт.

3

376504R1

EYEBOLT

hitch rockshaft, see note C

1шт.

21982R1

PIN, 3/16 x 1-1/2 C-Z self-opening cot.

1шт.

4

471602R1

BRACE, support rear, see notes A and C

2шт.

4

471605R1

BRACE, support rear, see note B

2шт.

4

483672R1

BRACE, support rear LH, see notes D and E

1шт.

4

483673R1

BRACE, support rear RH, see notes D and E

1шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

Hex, 3/4"-10 x 1-1/4", G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

5

471603R1

BRACE, support front, notes D and E

2шт.

5

471601R1

BRACE, support front left, see notes A, B and C

2шт.

5

489001R1

BRACE, support front right, see note A

1шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

Hex, 3/4"-10 x 1-1/4", G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

6

477101R1

STRIP, rub, see note B

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

7

471579R1

BRACKET, chain, see notes A thru D

4шт.

19475R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 2

1/2 x 3-1/4 C-Z hex-hd mach

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

22089R1

HEADED PIN,1/2" x 2 7/8"

PIN, 1/2 x 2-7/8 C-Z std-hd

2шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot.

2шт.

8

471584R1

CLEVIS, chain, see notes A thru D

2шт.

21666R1

HEADED PIN,3/4" x 2 15/16"

PIN, 3/4 x 2-15/16 znp std-hd

2шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga C-Z

2шт.

21630R1

COTTER PIN

PIN, 1/8 x 1 C-Z self-opening cot.

2шт.

9

483674R1

BRACKET, lift outside, see note E

2шт.

10

483675R1

BRACKET, lift inside, see note E

2шт.

11

483676R1

PLATE, rub, see note E

2шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 C-Z hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

12

483677R91

BRACKET ASSY, spacer LH, see note E

1шт.

12

483678R91

BRACKET ASSY, spacer RH, see note E

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

12378

CLIP

NUT, 1/2-13 C-Z hex.

2шт.

13

471572R1

PIN, beam locating, see note E

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.
