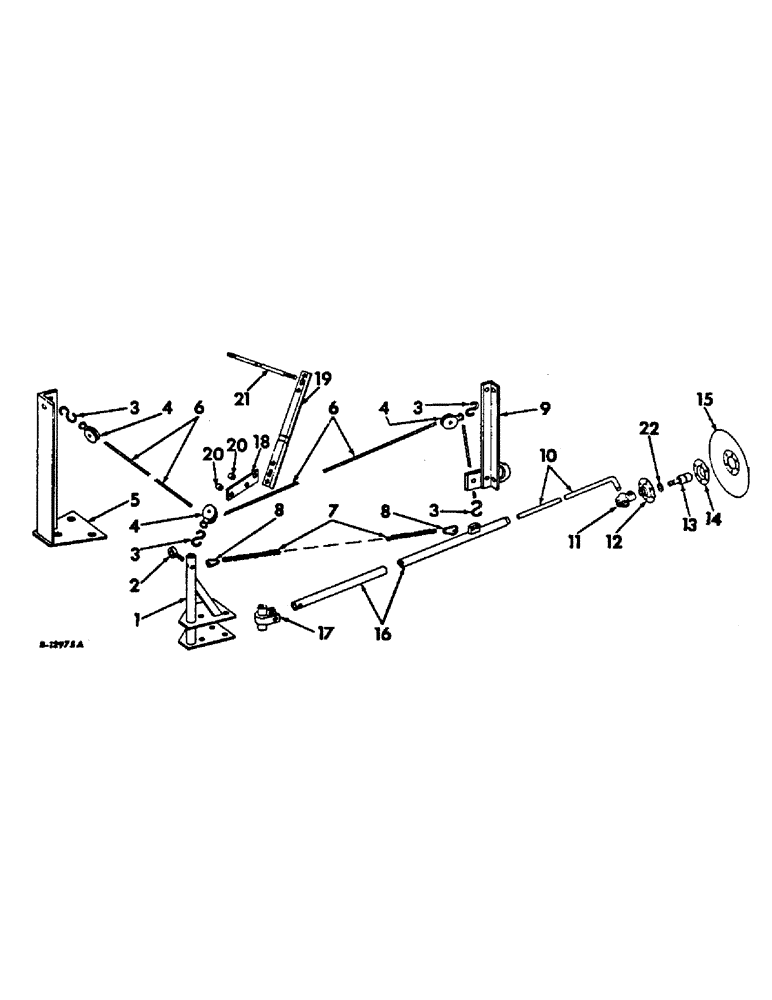

Запчасти Case IH 96 (AC-16) - MARKER ATTACHMENT

1

471612R91

PIVOT ASSY, marker support left

1шт.

1

471613R91

PIVOT ASSY, marker supper right

1шт.

18815R1

BOLT,Hex, 1/2"-13 x 5", G2

1/2 x 5 C-Z hex-hd mach

3шт.

21936R1

HEADED PIN,1/2" x 4 3/4"

PIN, 1/2 x 3/4 C-Z std-hd

1шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot.

1шт.

2

10400F

BOLT

EYEBOLT, marker pipe

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

3

520841R1

S-HOOK, marker

7шт.

4

514938R91

PULLEY

5шт.

5

471624R12

SUPPORT ASSY, pulley

1шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2 x 4 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

6

ROPE, 368 in. long, for 4-row planters

1шт.

6

ROPE, 448 in. long, for 6-row planters

1шт.

7

472707R1

CHAIN, marker 7 ft. long, no. 1-0 mach twist links

2шт.

8

472695R1

LINK

chain repair

4шт.

9

471621R91

BRACKET ASSY, pulley left

1шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2 x 3-1/2 C-Z hex-hd mach

2шт.

19475R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 2

1/2 x 3-1/4 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

9

471622R91

BRACKET ASSY, pulley right

1шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2 x 3 C-Z hex-hd mach

2шт.

19475R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 2

1/2 x 3-1/4 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

10

478732R1

ROD

marker disk clamp

2шт.

11

478032R1

CLAMP

axle

2шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2 x 2 C-Z sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

2шт.

12

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

disk brg inner

2шт.

13

ST438

BEARING

ASSY, ball

2шт.

14

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

disk brg outer

2шт.

15

469372R1

DISC,13"

DISK, 13 in.

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

120376

NUT,5/16"-18, G5

12шт.

16

471628R11

EXTENSION ASSY, marker, 6-row planters

2шт.

623080R1

SCREW, 1/2-13 x 1 cd-pltd sq-hd cup-pt set

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

16

471630R11

EXTENSION ASSY, marker, 4-row planters

2шт.

623080R1

SCREW, 1/2-13 x 1 cd-pltd sq-hd cup-pt set

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

2шт.

17

471618R91

PIVOT ASSY, marker

2шт.

21974R1

PIN, 1/2 x 2-7/16 C-Z std-hd

2шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot.

2шт.

18

480072R1

BAR, adapter, for 450 and 560 tractors

2шт.

18835R1

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 2

3/4 x 1-1/4 znd hex-hd mach

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

19

480071R1

ANGLE, pulley support

2шт.

18840R1

BOLT

3/4-10 x 2-3/4 C-Z hex-hd mach

4шт.

20

109070R1

SPACER,3/4" Pipe x 1 1/2"

angle, all tractors except Farmall 504

4шт.

19703R1

BOLT, 5/8 x 1-1/4 C-Z sq-nk crg

4шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., all tractors except Farmall 504

4шт.

21

480073R1

ROD, tie

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

22

480679R1

WASHER

dirt seal felt

2шт.
