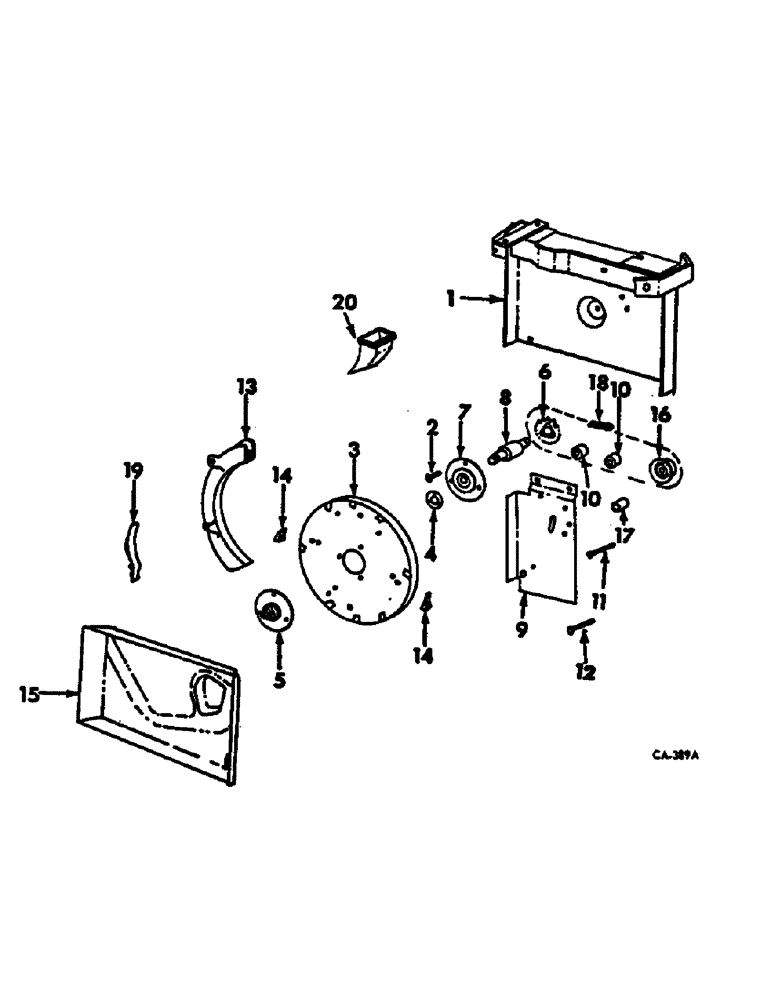

Запчасти Case IH 96 (AC-14) - HILL DROP UNIT, ONE PER ROW

1

492683R2

FRAME ASSY, seed unit

2шт.

21982R1

PIN, 3/16 x 1-1/2 C-Z slf-opening cot.

2шт.

2

493743R1

SCREW

no. 8 x 1/2 C-Z self tap.

6шт.

3

472129R3

WHEEL

plastic seed

2шт.

4

493741R1

WASHER

WASHER, brg flange

2шт.

5

493742R1

FLANGE

seed brg

2шт.

6

492691R1

SPROCKET ASSY.

SPROCKET, 12T

2шт.

7

493744R1

FLANGE

seed brg

2шт.

451195

SCREW,Slotted Pan Hd, 1/4"-20 x 1"

1/4 x 1 C-Z slt-pan-hd mach

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

21549R1

WASHER

9/32 x 3/4 x 18 ga C-Z

6шт.

8

492693R91

BEARING ASSY,0.6267" ID x 1.1811" OD x 4.55"

rotor

2шт.

LEC271506

SHIM

7/16-20 C-Z hex.

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

21755R1

WASHER

15/32 x 16 x 18 C-Z

2шт.

9

492695R2

RETAINER

2шт.

10

493323R1

SPACER

case retainer

4шт.

11

493322R1

PIN

long attaching

2шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

12

493325R1

PIN

short locating

2шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot.

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot.

2шт.

13

479129R92

VALVE SPRING

SPRING ASSY, seed retaining

2шт.

480994R1

RIVET, 3/16 x 1/2 anp. cks-hd

8шт.

16547R1

WASHER,0.2" ID x 0.5" OD x 0.04" Thk

13/64 x 1/2 x 11 ga C-Z

8шт.

14

468464R1

LUG

seed wheel plastic

8шт.

120619

NUT

10-24 C-Z sq

16шт.

120621

SCREW,Sl Flat Hd, #10 - 24 x 1"

10-24 x 1 C-Z slt flt-hd mach

8шт.

15

492698R2

COVER

side valve

2шт.

16

482635R2

ROLLER

chain tightener

2шт.

17

492700R1

SPACER

chain tightener

2шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

5/16 x 1-1/2 znp crg

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

18

CHAIN, rotor drive, use 51 links from 10 ft. roll marked, 489466R91, and 1 connecting link, 489647R1

2шт.

19

489471R1

GUIDE

drill

2шт.

21916R1

PIN

1/4 x 2 C-Z std-hd

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

20

492647R1

TUBE

hill drop seed

2шт.
