Запчасти Case IH 96 (AC-13) - DISK FURROWING ATTACHMENT, 9-1/4 IN.

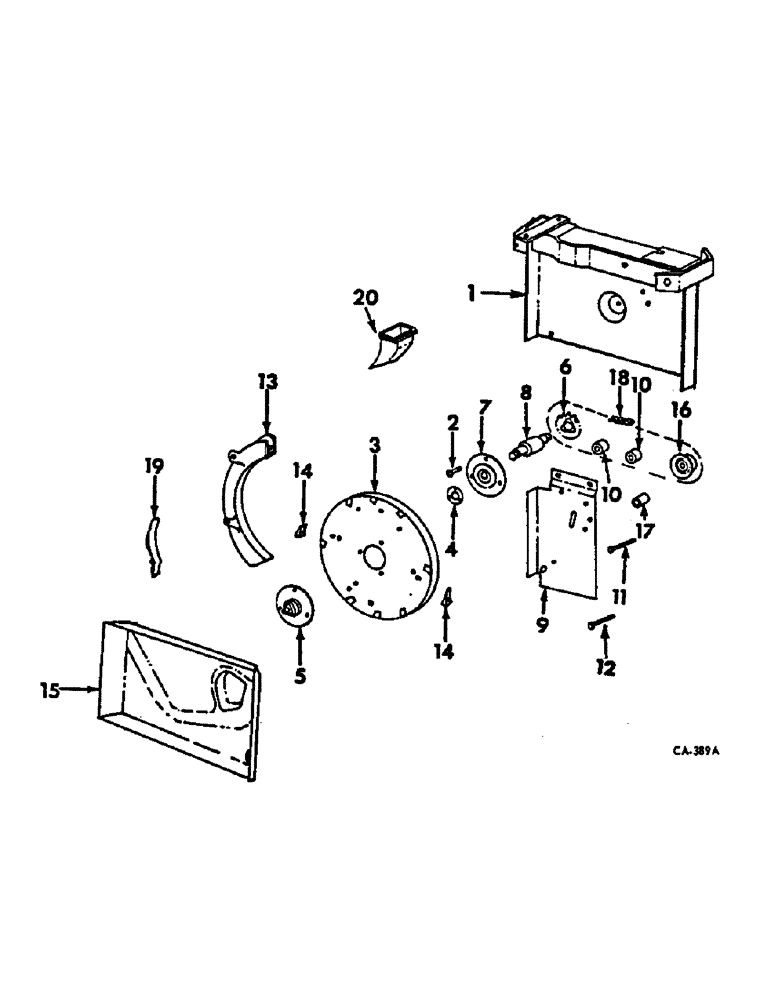

Схема запчастей Case IH 96 - (AC-13) - DISK FURROWING ATTACHMENT, 9-1/4 IN.
20
17
1
16
4
8
14
13
6
12
18
10
14
19
3
2
7
15
11
5
9
10

Артикул

Название

Примечание

Количество

1

492715R1

BRACKET

ASSY, disk mounting

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

brg inner

2шт.

3

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

brg outer

2шт.

4

ST438

BEARING

ASSY, disk ball

2шт.

5

480674R1

DISC

DISK, 9-1/4 in.

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

6

480675R91

BRACKET

ASSY, disk LH mounting

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 C-Z hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

480676R91

BRACKET

ASSY, disk RH mounting

1шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 C-Z hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

8

480679R1

WASHER

dirt seal felt

2шт.

1

492715R1

BRACKET

ASSY, disk mounting

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

472020R1

BEARING HOUSING,19.66 mm ID x 38.125 mm OD

HOUSING, brg inner

2шт.

3

472021R1

HOUSING,38.125 mm ID x 76.2 mm OD

brg outer

2шт.

4

472022R91

BEARING, BALL,18.961 mm ID x 38.1 mm OD x 91.13 mm

BEARING ASSY, disk

2шт.

5

479848R1

DISC

DISK, 12 in.

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

10шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

10шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

6

472248R91

MOUNTING ASSY, disk LH

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 C-Z hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

472249R91

MOUNTING ASSY, disk RH

1шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 C-Z hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt

1шт.

Выбрано товаров: 42
