Запчасти Case IH 96 (AC-12[A]) - DISK COVERING ATTACHMENT

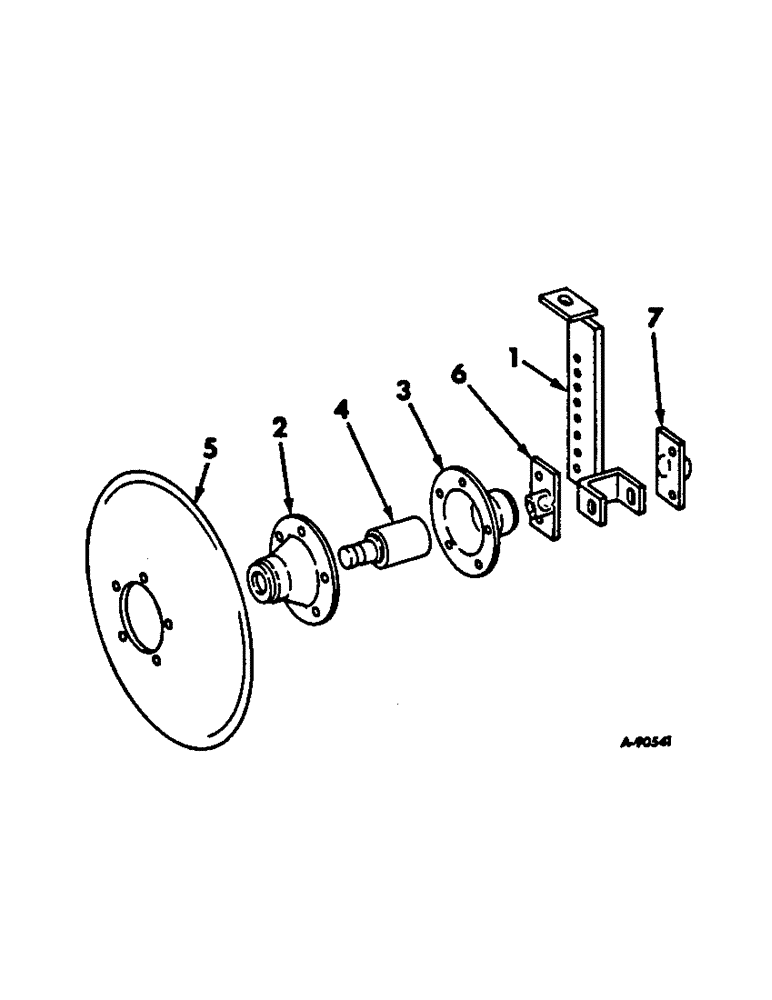

Схема запчастей Case IH 96 - (AC-12[A]) - DISK COVERING ATTACHMENT
5
2
1
7
3
6
4

Артикул

Название

Примечание

Количество

1

542204R1

ARM ASSY, pivot LH

2шт.

1

542205R1

ARM ASSY, pivot RH

2шт.

2

492800R1

BOLT,3/8" - 16 x 3.0"

U-BOLT

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

8шт.

3

542209R1

ARM ASSY, disk LH

2шт.

3

542210R1

ARM ASSY, disk RH

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

8шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

ext prong 3/16" x 1 1/2"

4шт.

4

542212R1

SPRING

depth

4шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 ga C-Z

4шт.

542214R1

BOLT, adj znd 1/2 x 2-1/4 sq-nk crg

4шт.

5

478032R1

CLAMP

axle

4шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2 x 2 znd sq-nk crg

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, cup pt set

4шт.

6

480674R1

DISC

DISK, 9-1/4 dia

4шт.

480679R1

WASHER

dirt seal felt

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 znd hex-hd cap

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

120376

NUT,5/16"-18, G5

24шт.

7

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

disk brg inner

4шт.

8

478034R91

BEARING ASSY,30mm OD x 82.53mm L

BEARING ASSY, ball

4шт.

9

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

disk brg outer

4шт.

Выбрано товаров: 26
