Запчасти Case IH 96 (AC-11[A]) - RUNNER WINGS AND DIRT SHIELDS, ONE PER ROW

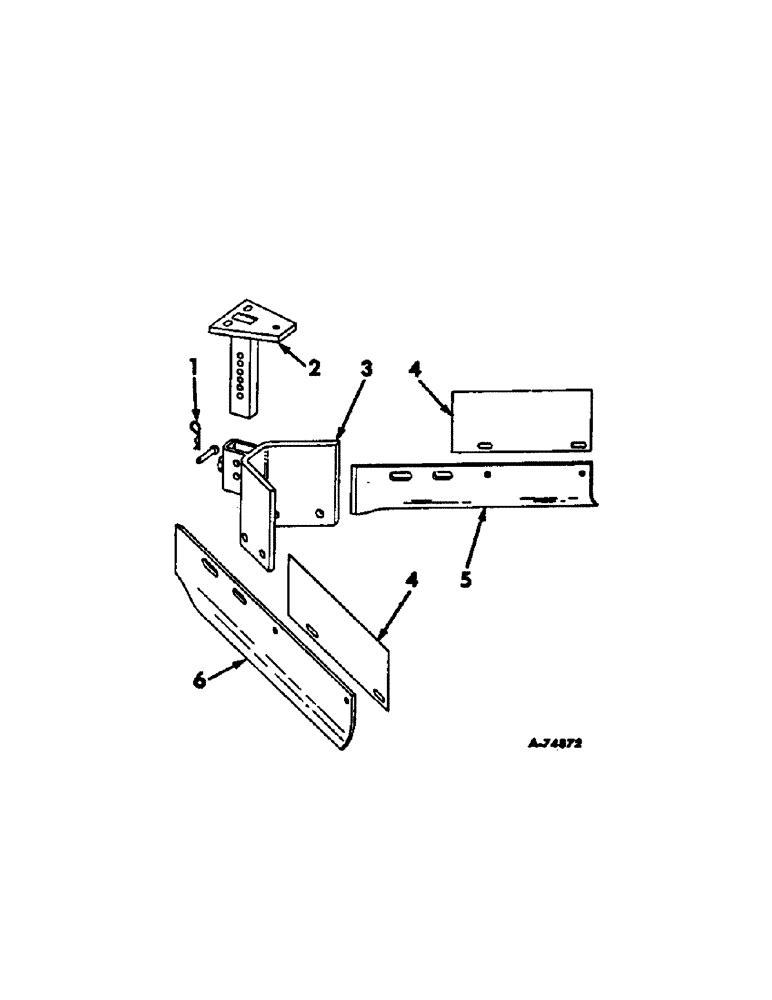

Схема запчастей Case IH 96 - (AC-11[A]) - RUNNER WINGS AND DIRT SHIELDS, ONE PER ROW
2
4
5
4
3
6
1

Артикул

Название

Примечание

Количество

1

473443R1

COTTER PIN

quick attachable cot.

1шт.

2

492721R1

SUPPORT ASSY.

STANDARD ASSY, runner wing

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

3

469320R91

BRACKET

ASSY, wing support

1шт.

22216R1

SCREW

1/2-13 x 1-1/2 C-Z sq-hd cup-pt set

1шт.

22232R1

HEADED PIN,1/4" x 1 7/8"

PIN, 1/4 x 1-7/8 C-Z std-hd

1шт.

21549R1

WASHER

9/32 x 3/4 x 18 C-Z

1шт.

4

469327R1

SHIELD

dirt

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

5

469326R1

RUNNER

WING, runner RH

1шт.

6

469325R1

RUNNER

WING, runner LH

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

Выбрано товаров: 20
