Запчасти Case IH 96 (AC-10[A]) - WHEEL SCRAPERS, ONE PER ROW

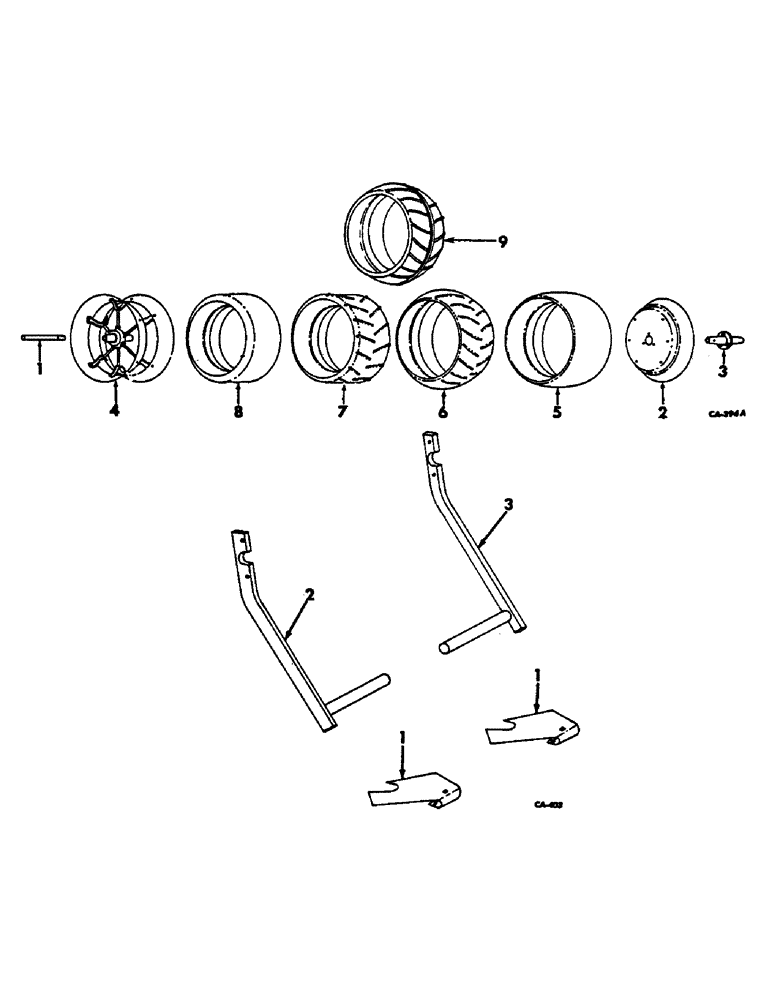

Схема запчастей Case IH 96 - (AC-10[A]) - WHEEL SCRAPERS, ONE PER ROW
7
9
8
4
3
3
2
2
6
5
1
1
1

Артикул

Название

Примечание

Количество

1

492730R1

TUBE

BUSHING, wheel, for 8 x 20 tires

2шт.

2

483327R1

WHEEL

DISK, 7 x 18 in. press wheel half

4шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16-20 x 5/8 znd hex-hd mach

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

120376

NUT,5/16"-18, G5

5/16-20 C-Z hex.

12шт.

3

492731R1

HUB

wheel, for 8 x 20 tires

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

4

471246R91

NO LONGER SERVICED

WHEEL ASSY, 8 x 20 in. press wheel

2шт.

PO19374

RIVET, 3/8 x 25/32 spec-hd

24шт.

5

622855R1

TYRE/TIRE

TIRE, 8 x 20 in. smooth crowned semi-pneumatic rubber

2шт.

5

492733R1

TYRE/TIRE

TIRE, 7 x 18 in. smooth crowned semi-pneumatic rubber

2шт.

6

477312R1

TYRE/TIRE

TIRE, 8 x 20 in. crowned traction tread semi-pneumatic rubber

2шт.

7

483326R1

TYRE/TIRE

TIRE, 7 x 18 in. concave traction tread semi-pneumatic rubber

2шт.

8

492732R1

TYRE/TIRE

TIRE, 7 x 18 in. smooth concave semi-pneumatic rubber

2шт.

9

542241R1

TYRE/TIRE

TIRE, 7 x 18 in. semi-pneumatic dual rib traction tread

2шт.

1

622850R1

SCRAPER

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crk

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

492724R1

ARM

ASSY, scraper LH

1шт.

3

540841R1

ARM

ASSY, scraper RH

1шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 znd hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.
