Запчасти Case IH 96 (AC-09[A]) - RUNNER OPENER, ONE PER ROW

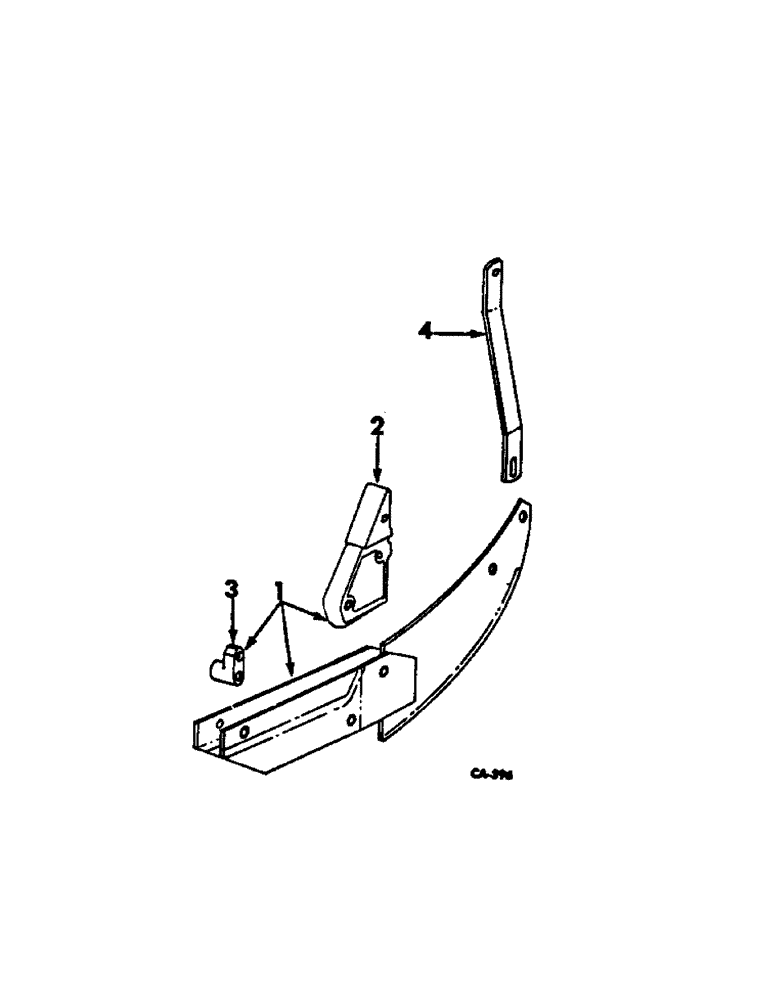

Схема запчастей Case IH 96 - (AC-09[A]) - RUNNER OPENER, ONE PER ROW
3
2
4

Артикул

Название

Примечание

Количество

1

492740R92

OPENER

ASSY, runner, for hill drop

1шт.

1

489403R91

OPENER

ASSY, runner, for drill

1шт.

2

492742R2

FROG

runner, for hill drop

1шт.

14064R1

RIVET, 3/8 x 1-13/16 x 74 deg csk-hd

1шт.

14036R1

RIVET, 3/8 x 1-1/2 74 deg C-Z csk-hd

1шт.

14078R1

RIVET, 3/8 x 2-1/8 74 deg csk-hd solid

1шт.

2

489404R1

FROG, runner, for drill

1шт.

14036R1

RIVET, 3/8 x 1-1/2 74 deg C-Z csk-hd

1шт.

14064R1

RIVET, 3/8 x 1-13/16 x 74 deg csk-hd

1шт.

3

492708R1

BLOCK

runner, for hill drop

1шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 znd sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd crg hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

3

489406R1

BLOCK

runner, for drill

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

492745R1

SUPPORT

BRACE, runner

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

2шт.

Выбрано товаров: 27
