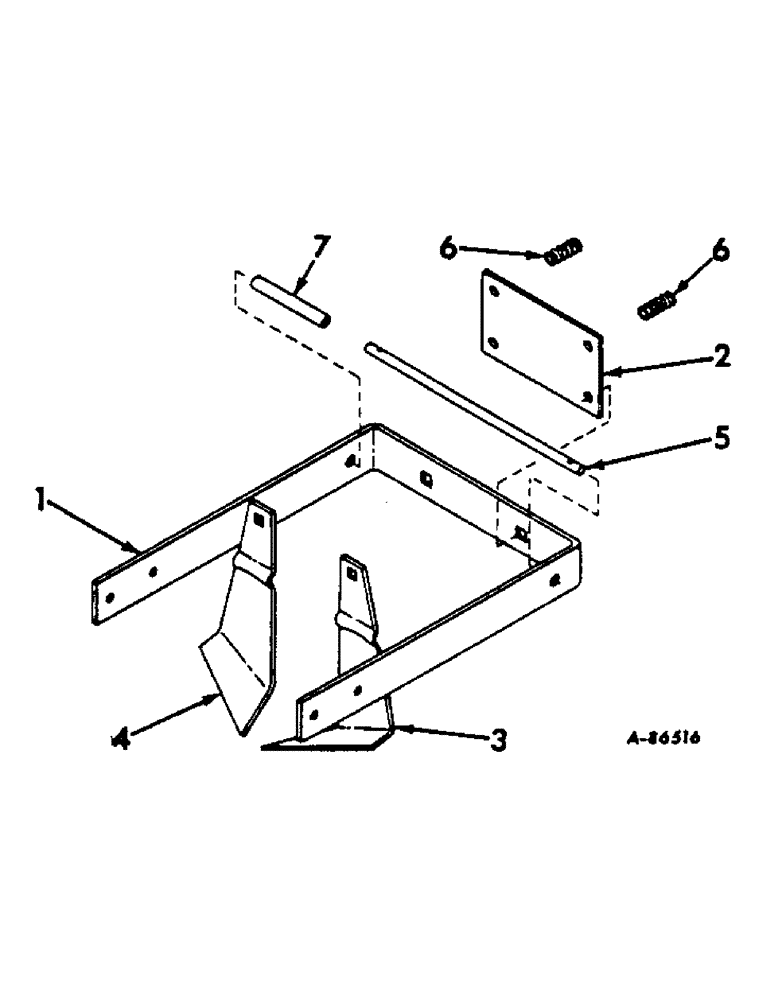

Запчасти Case IH 90 (R-07) - PRESS WHEEL SCRAPER, ONE PER ROW

1

482607R1

BRACKET, press wheel scraper

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16-18 x 1 C-Z hex-hd mach

4шт.

102376

NUT, 5/16-18 C-Z hex.

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

482608R1

STRIP, scraper adj

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

482609R1

BLADE, press wheel scraper LH

1шт.

4

482610R1

BLADE, press wheel scraper RH

1шт.

18687R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 2

BOLT, 3/8 x 2-3/4 C-Z sq-nk crg

2шт.

274993

SHIELD

3/8-16 cd-pltd stover lock

2шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga

2шт.

5

482611R1

PIN, press wheel scraper

1шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

6

44035H

SPRING, compression

2шт.

7

197947R1

SPACER

1шт.
