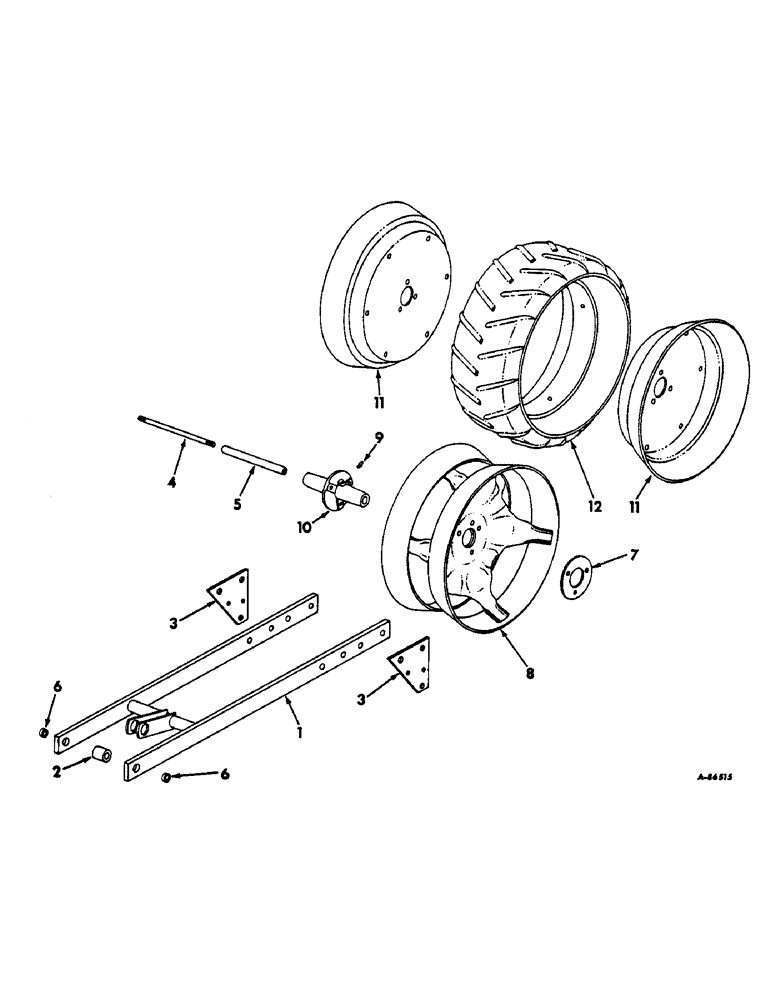

Запчасти Case IH 90 (R-06) - PRESS WHEEL AND FRAME, ONE PER ROW

1

490030R1

FRAME ASSY, press wheel, drill

1шт.

1

482462R91

FRAME ASSY, press wheel

1шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2 x 1-1/2 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

522591R1

PLUG

locking

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

2шт.

2

482461R1

PIN

SWIVEL, adj screw

1шт.

180168

SCREW,Hex, 1/2" - 13 x 5/8", Gr 5

BOLT, 1/2 x 5/8 C-Z hex-hd mach

1шт.

3

482466R1

PLATE, press wheel

2шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

102635

NUT,3/8"-16, G5

4шт.

4

482467R1

STUD, press wheel axle

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

5

482468R1

TUBE, press wheel axle

1шт.

6

482469R1

BUSHING

press wheel frame

2шт.

7

464466R1

RETAINER

WASHER, press wheel

1шт.

8

624494R1

WHEEL ASSY, press

1шт.

8

486609R1

WHEEL

ASSY, press, will work for 624494R1

1шт.

9

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub, in press wheel hub

1шт.

10

472106R1

HUB

press wheel

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

11

483328R1

DISC

DISK HALF, press wheel 7 x 16

2шт.

11

483327R1

WHEEL

DISK HALF, press wheel 7 x 18

2шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

12

483326R1

TYRE/TIRE

TIRE, flat traction tread 7 x 18 zero pressure

1шт.

12

483118R1

TYRE/TIRE

TIRE, flat traction tread semi-pneumatic

1шт.

12

477311R1

TYRE/TIRE

TIRE, crowned tread zero pressure

1шт.

12

624478R1

TYRE/TIRE

TIRE, crowned smooth zero pressure

1шт.
