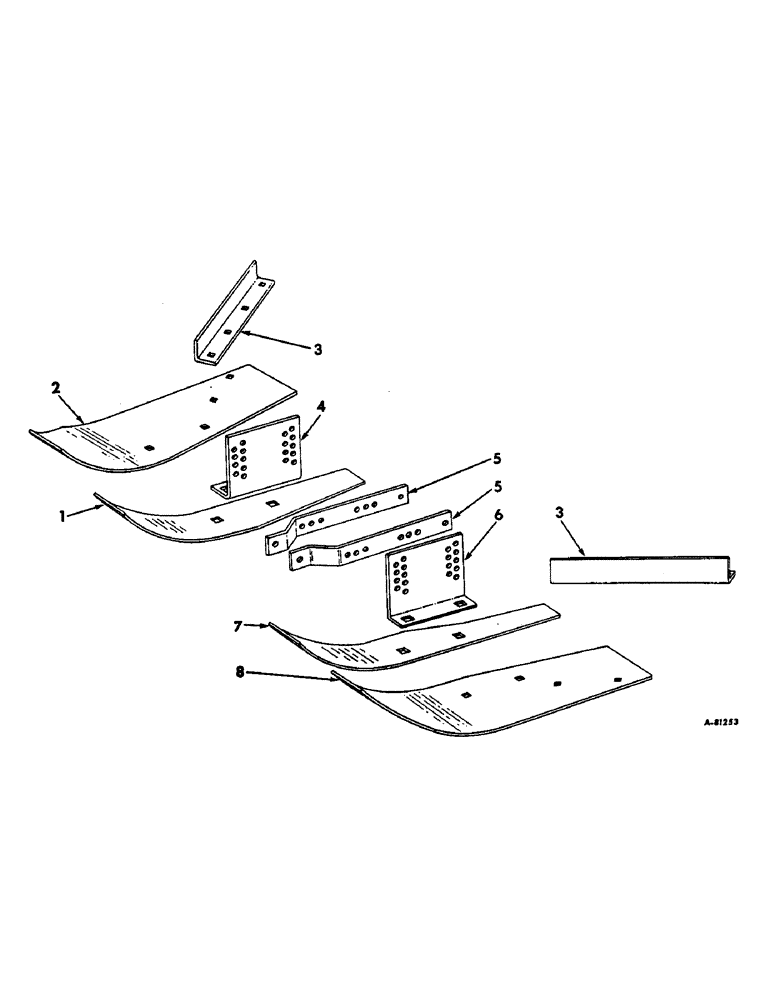

Запчасти Case IH 90 (R-32) - GAUGE SHOE, ONE PER ROW

1

474660R1

SHOE

RH, 7-1/2 in.

1шт.

19040R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1", Gr 2

BOLT, 7/16-14 x 1 C-Z no. 3 hd

2шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

2

474654R2

SHOE

RH, 15 in.

1шт.

15552R1

BOLT, 7/16-14 x 1 no. 3 hd 7/16"-14 x 1", G2, Full Thd

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

3

PO25155

ANGLE

SWEEP, clod

2шт.

15552R1

BOLT, 7/16-14 x 1 no. 3 hd 7/16"-14 x 1", G2, Full Thd

4шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

4

474656R1

SUPPORT

RH

1шт.

5

474657R1

STRAP, attaching

2шт.

17649R1

BOLT, 7/16-14 x 3-1/4 hex-hd mach

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2-13 x 2-3/4 C-Z hex-hd mach

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

474655R1

SUPPORT

LH

1шт.

7

474659R1

SHOE

LH, 7-1/2 in.

1шт.

19040R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1", Gr 2

BOLT, 7/16-14 x 1 C-Z no. 3 hd

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

8

474653R2

SHOE

LH, 15 in.

1шт.

15552R1

BOLT, 7/16-14 x 1 no. 3 hd 7/16"-14 x 1", G2, Full Thd

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.
