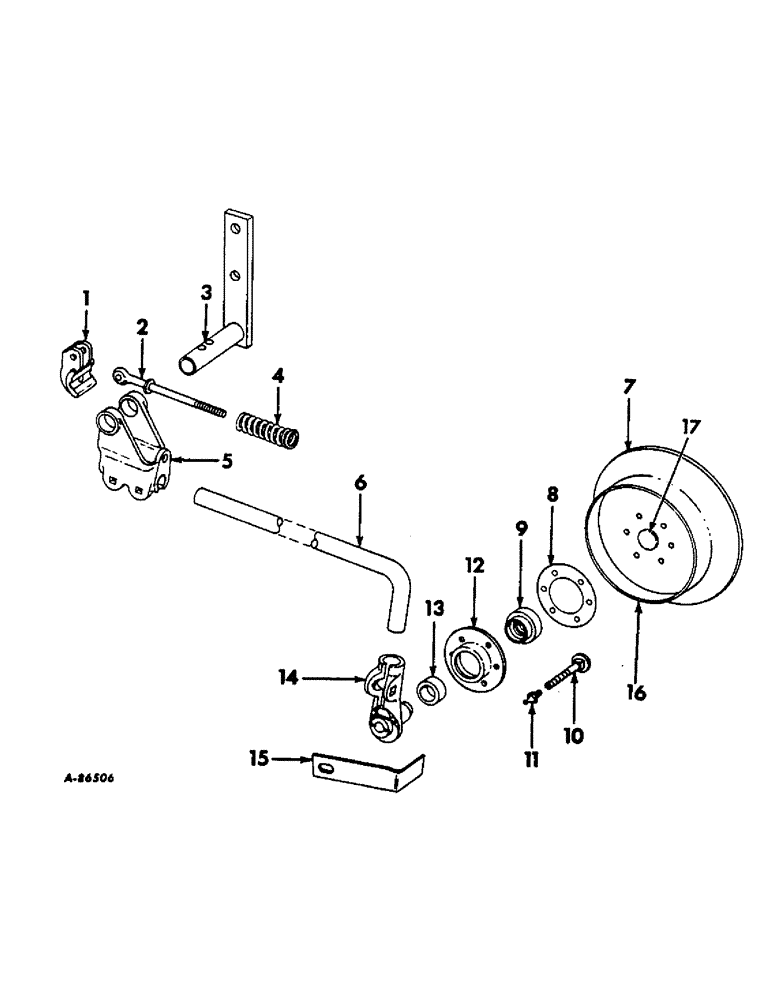

Запчасти Case IH 90 (R-30) - DISK COVERING ATTACHMENT, ONE PER ROW

1

478069R1

ANCHOR, pressure rod

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

477143R11

ROD

ASSY, pressure

2шт.

102635

NUT,3/8"-16, G5

3/8-18 hex.

2шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

2шт.

CP14227

PIN

5/16 x 1-3/16 std-hd

2шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

4шт.

142619H

WASHER

13/32 x 3/4 x 11 ga C-Z

4шт.

3

482521R91

BRACKET ASSY, LH covering

1шт.

3

482522R91

BRACKET ASSY, RH covering

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

4

477144R1

SPRING

pressure rod

2шт.

5

471636R1

BRACKET, pivot

2шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4 C-Z sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

482602R1

ROD, covering disk

2шт.

7

468484R93

DISC

DISK ASSY

2шт.

7

517686R2

DISK, 10 in.

2шт.

8

SA6222

GASKET

2шт.

9

ST616

BALL BEARING,0.75" ID x 2.377" OD x 0.625"

BEARING, ball

2шт.

10

517687R2

BOLT,Carriage, 1/2" - 13 x 2 1/2"

1/2 x 2-1/2 sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

102384

HYDRAULIC VALVE

WASHER, 1/2 C-Z med lock

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

11

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub

2шт.

12

517685R1

RETAINER

HUB, bearing

2шт.

13

SA6219

RUBBER SEAL

dust

2шт.

14

517683R3

SUPPORT

2шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

15

468487R2

SCRAPER, covering disk LH

1шт.

15

468488R2

SCRAPER, covering disk RH

1шт.

16

477550R1

BAND, disk

2шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 x 3/4 small b-hd

2шт.

17

F7509

PLUG, disk

2шт.
