Запчасти Case IH 90 (R-29) - COTTON PLANTING EQUIPMENT, ONE PER ROW

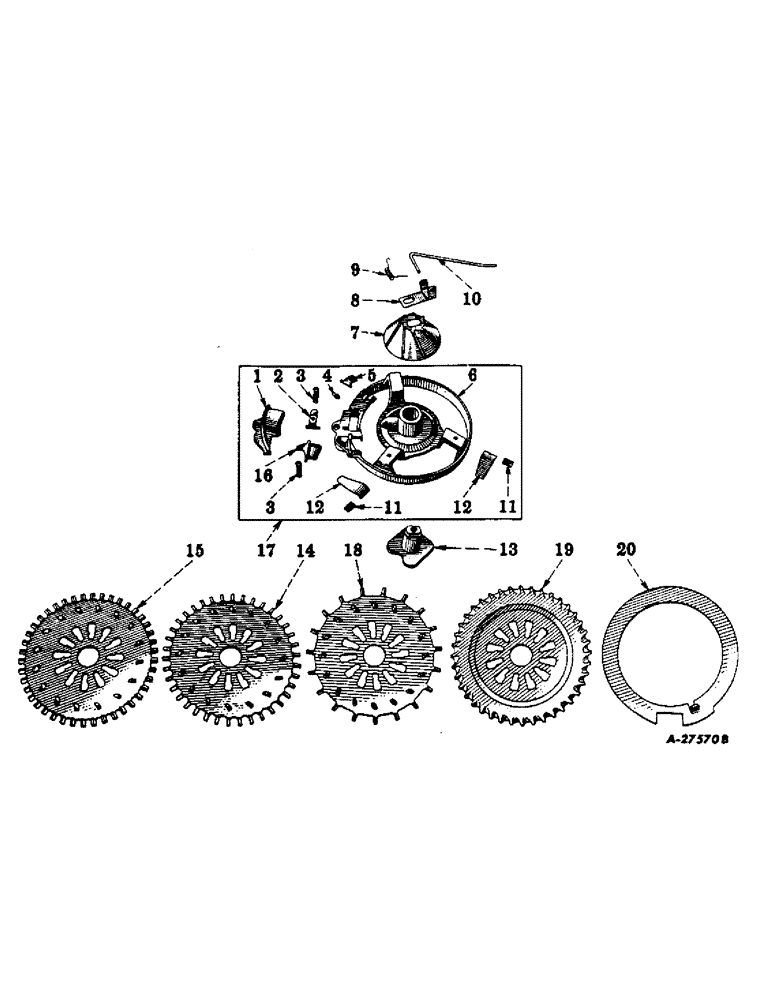

Схема запчастей Case IH 90 - (R-29) - COTTON PLANTING EQUIPMENT, ONE PER ROW
7
5
13
12
10
11
4
3
15
11
2
1
8
9
17
12
6
20
14
19
16
18
3

Артикул

Название

Примечание

Количество

1

486796R1

CAP

pawl cover, for fiberglass hoppers

1шт.

843381C1

SQUARE NUT,Sq. 1/4"-20

1/4-20 C-Z sq mach screw

1шт.

133043

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 C-Z slt-rd-hd mach

1шт.

2

621721R5

KNOCKER

1шт.

3

PO51

SPRING

cutoff and knocker

2шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub, cotton bottom

1шт.

5

13607AB

HINGE

GATE, hinged

1шт.

6

621713R31

BOTTOM, hopper

1шт.

7

621716R1

PLATE

cotton agitator

1шт.

8

621725R92

ARM

COMPLETE, agitator, main piece

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

551173R1

WASHER

13/32 x 1-1/8 x 16 ga

1шт.

9

PO26760

SPRING

agitator

1шт.

10

622259R1

ARM

spring agitator

1шт.

11

445135

NUT

10-24 mach spring nut

2шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW, 10-24 x 1/2 C-Z rd-hd-slt mach

2шт.

12

PO16047A

VALVE SPRING

SPRING, seed

2шт.

13

480698R1

STUD

agitator drive

1шт.

14

621717R3

PLATE

cotton seed, 38 large cells, requires 622481R1 filler ring

1шт.

15

621719R3

PLATE

cotton seed, 42 cells

1шт.

16

621723R1

KNIFE

CUTOFF

1шт.

17

486797R91

BOTTOM

COMPLETE, cotton, for fiberglass hoppers

1шт.

18

622424R1

PLATE

seed, 19 large cells, for gin run and reginned cotton

1шт.

18

477025R1

PLATE

seed, 16 cells 5/16 x 11/32, for machine delinted cotton seed

1шт.

18

477026R1

PLATE

seed, 16 cells 3/8 x 13/32, for machine delinted cotton seed

1шт.

18

477027R1

PLATE

seed, 16 cells 7/16 x 17/32, for machine delinted cotton seed

1шт.

18

477028R1

PLATE

seed, 16 cells 1/2 x 19/32, for machine delinted cotton seed

1шт.

19

622480R1

PLATE

seed, 40 small tin cells, for acid and machine delinted cotton seed, also order ring, 622481R1

1шт.

20

622481R1

RING

filler, for 621717R3 and 622480R1 seed plates

1шт.

Выбрано товаров: 30
