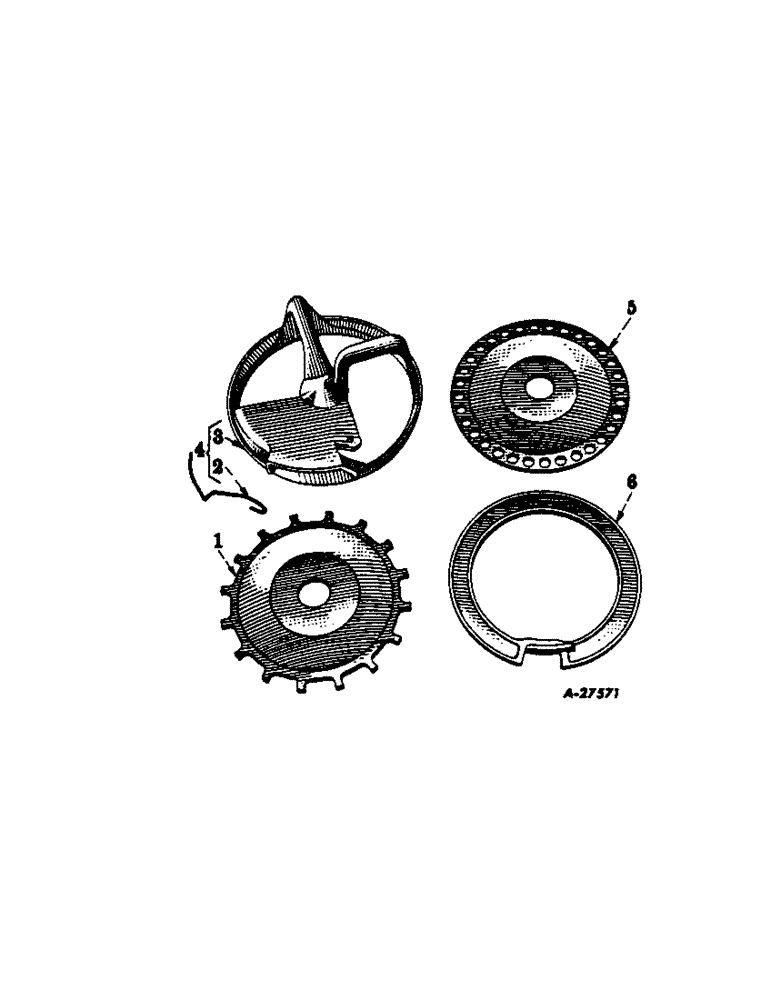

Запчасти Case IH 90 (R-27[A]) - PEANUT PLANTING EQUIPMENT, 1966, ONE PER ROW

PLATE, seed, refer to seed plate section

1шт.

RING, filler, refer to seed plate section

1шт.

1

621731R2

PLATE, seed, 16 cell, for peanuts in shell

1шт.

2

621734R2

SPRING, cutoff

1шт.

120583

SCREW,Sl Rnd Hd, 1/4" - 20 x 5/8"

1/4-20 x 5/8 rd-hd slt mach

1шт.

843381C1

SQUARE NUT,Sq. 1/4"-20

1/4-20 C-Z sq. machine screw

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .065 C-Z

2шт.

3

BOTTOM, hopper, order 622187R92

1шт.

4

622187R92

BOTTOM W/CUT-OFF SPRING ASSY, hopper

1шт.

5

621732R2

PLATE, seed, 32 cell, also order filler ring, 621733R2

1шт.

6

621733R2

RING, filler, used w/621732R2 seed plate

1шт.
