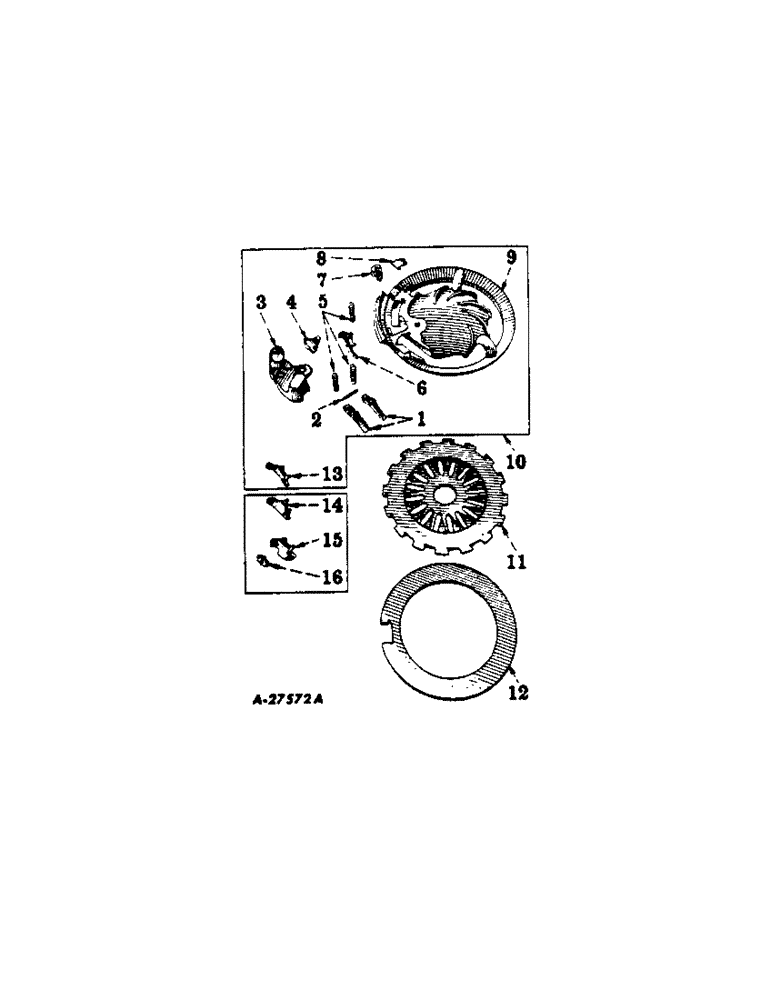

Запчасти Case IH 90 (R-26[A]) - CORN PLANTING EQUIPMENT

1

622184R91

PAWL

ASSY, inner & outer cut-off

1шт.

1

622278R91

JAW

PAWL ASSY, inner & outer cut-off, used with segmented of decorticated beet seed plates, special

1шт.

2

2000AA

PIN

hinged cutoff pawl

1шт.

3

621727R3

CAP

cutoff and knocker

1шт.

4

621728R2

SEAT

adjusting knocker

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 x 1/2 rd-hd-slt mach

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .065 C-Z

1шт.

5

2064A

SPRING

cutoff and knocker

3шт.

6

464336R11

KNOCKER

ARM ASSEMBLY, roller knocker

1шт.

7

622124R3

HOLDER

RETAINER, filler ring

1шт.

133781

SCREW,Sl Flat Hd, 1/4" - 20 x 1 1/4"

1/4-20 x 1-1/4 C-Z f-hd slt mach

1шт.

843381C1

SQUARE NUT,Sq. 1/4"-20

1/4-20 C-Z sq. machine screw

1шт.

138604

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, 1/4 C-Z csk ext-tooth lock

1шт.

8

13607AB

HINGE

GATE, hinged, pawl, Serial Range: cap-bottom

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

9

BOTTOM HOPPER, not serviced separately, order hopper assy, 480697R91

1шт.

10

480697R91

BOTTOM

COMPLETE, corn

1шт.

11

PLATE, seed, for service see index to units under seed plates

1шт.

12

RING, filler, for service see index to units under seed plates

1шт.

13

3460AC

KNOCKER

regular

1шт.

14

1223AB

PAWL

KNOCKER, special, see note

1шт.

15

43169AA

ARM

W/STUD ASSY, roller knocker, special, see note

1шт.

16

3616AA

KNOCKER

roller, special, see note

1шт.

16

464259R1

ROLLER

KNOCKER, roller

1шт.
