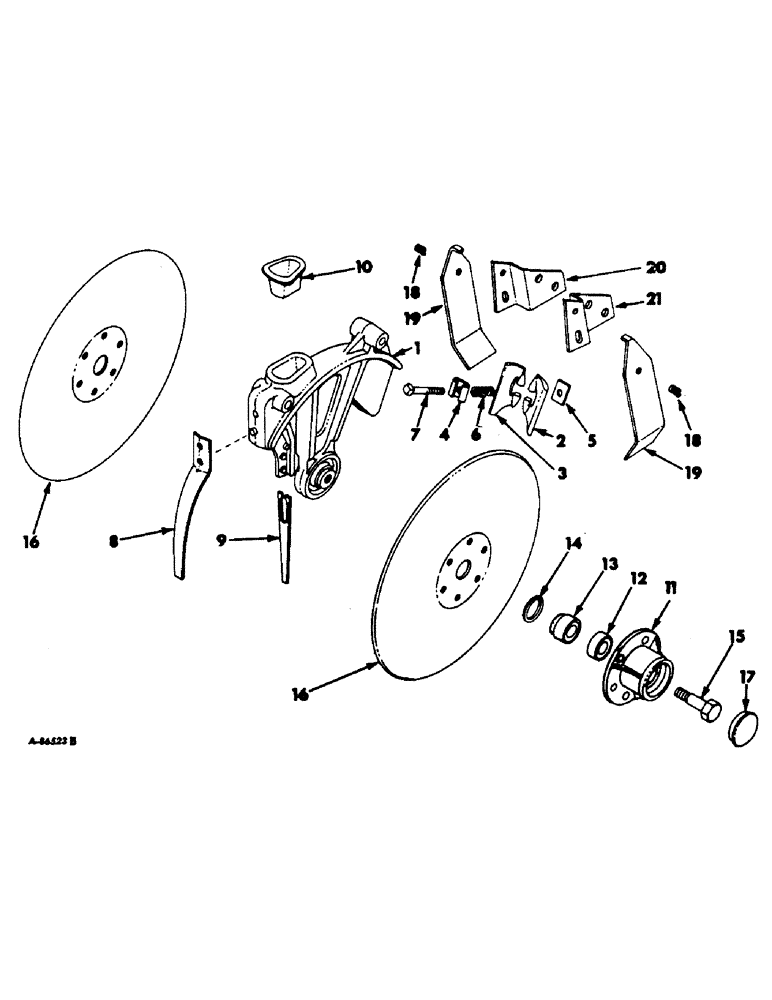

Запчасти Case IH 90 (R-25) - HEAVY DUTY STUBBLE MULCH DOUBLE DISK OPENER AND SCRAPER

1

484083R1

BOOT

double disk opener

1шт.

17768R1

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2

1/2 x 4-1/2 hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

2

N2567

LARGE PLATE

SCRAPER, inside LH

1шт.

3

N2568

SCRAPER

inside RH

1шт.

4

N62537

HINGE

inside scraper

1шт.

5

N62538

KNIFE ASSY

SPREADER, inside scraper

1шт.

6

N62536

VALVE SPRING

SPRING, inside scraper

1шт.

7

620723R1

BOLT

5/16-24 x 2-1/2 sq-hd mach, inside, Serial Range: scraper-boot

1шт.

274312

SHAFT

NUT, 5/16-24 C-Z self-locking hex.

1шт.

8

522305R1

GUARD

weed

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

522306R1

DEFLECTOR

seed

1шт.

10

491000R1

TUBE

seed, replaces 484084R1

1шт.

11

524053R1

HUB

HOUSING, brg

2шт.

12

ST262

BALL BEARING,17mm ID x 40mm OD x 12mm W

BEARING, disk inner

2шт.

13

ST620

BALL BEARING,17 mm ID x 40 mm OD x 18.2549 mm

BEARING, disk outer

2шт.

14

524061R1

SPACER

brg

2шт.

15

524039R1

BOLT,Hex, 5/8" - 11 x 2", LH Thd

sprindle LH thread, disk brg/bolt

1шт.

131045

LOCK WASHER

WASHER, 11/16 C-Z med lock

1шт.

15

524040R1

BOLT,5/8" - 11 x 2", RH Thd

spindle RH thread, disk brg/bolt

1шт.

131045

LOCK WASHER

WASHER, 11/16 C-Z med lock

1шт.

16

523951R1

DISC

BLADE, disk, 13-7/8 in.

2шт.

22138R1

RIVET, 1/4 x 3/4 C-Z rd-hd

12шт.

17

522021R1

CAP

brg

2шт.

18

6633

SPRING

outside scraper

2шт.

19

464475R1

SUPPORT

SCRAPER, outside

2шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/8 x 1-3/4 C-Z hex-hd mach

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

4шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16-18 C-Z ESNA stop

2шт.

20

484094R1

SUPPORT, scraper LH

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

21

484095R1

SUPPORT, scraper RH

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.
