Запчасти Case IH 90 (R-23) - RUNNER OPENERS, ONE PER ROW

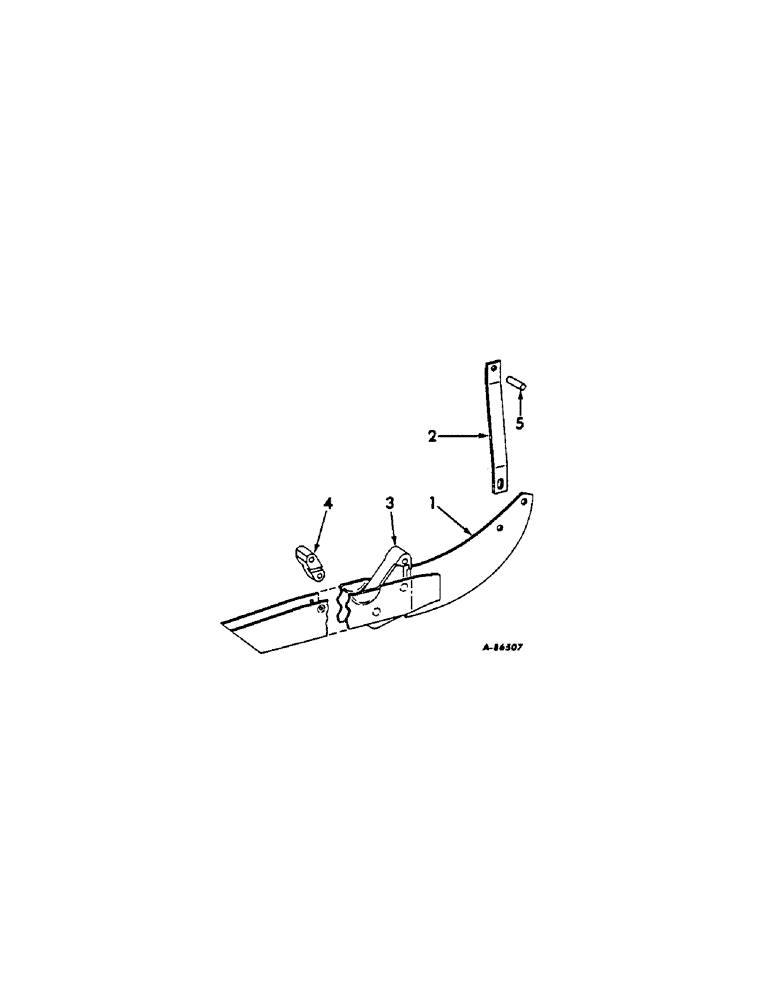

Схема запчастей Case IH 90 - (R-23) - RUNNER OPENERS, ONE PER ROW
2
4
3
1
5

Артикул

Название

Примечание

Количество

1

482471R91

OPENER ASSY, runner, 4 & 6 row long runner opener

1шт.

1

482479R91

OPENER ASSY, runner, 4 & 6 row short runner opener

1шт.

17548R1

BOLT, 3/8 x 2-1/4 hex-hd mach

1шт.

17550R1

BOLT,Hex, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 hex-hd mach

1шт.

17673R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 2

3/8 x 3-1/2 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Q1505

WASHER

13/32 x 1 x 16 ga

2шт.

2

482478R1

BRACE, runner

2шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

3

482476R1

FROG, runner

1шт.

4

482477R1

BLOCK, runner

1шт.

14072R1

RIVET, 3/8 x 2, 74 deg csk-hd solid

3шт.

5

294610R1

SPACE

1шт.

17675R1

BOLT, 1/2 x 3-1/2 hex-hd mach

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.
