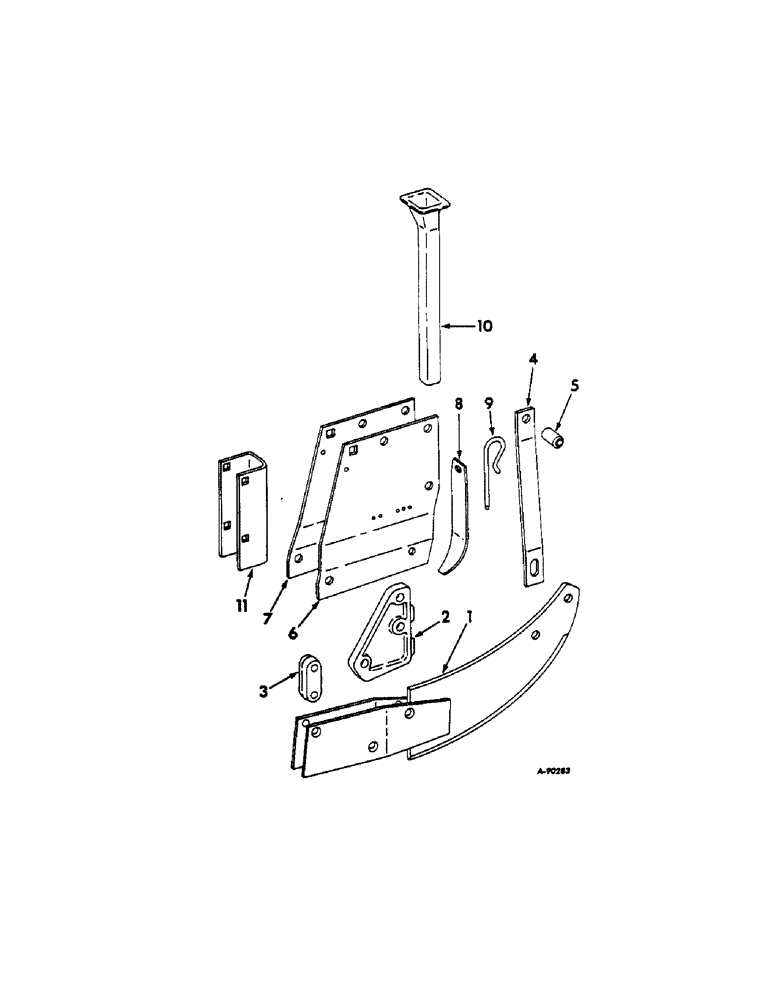

Запчасти Case IH 90 (R-23[A]) - RUNNER OPENERS FOR DRILL PLANTERS, ONE PER ROW

1

489403R91

OPENER

ASSY, runner

1шт.

2

489404R1

FROG, runner

1шт.

3

489406R1

BLOCK

runner

1шт.

22268R1

RIVET, 3/8 x 1-1/2 C-Z 74

1шт.

22269R1

RIVET, 3/8 x 1-1/316 C-Z 74 deg csk-hd

2шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 C-Z hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

18782R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 2

3/8 x 2-1/4 C-Z hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

4

482478R2

BRACE, runner

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

5

294610R1

SPACER, runner brace

1шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2 x 3-1/2 C-Z hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

6

472239R4

PLATE, valve side RH

1шт.

7

472238R4

PLATE, valve side LH

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120377

NUT,3/8" - 16, Gr 5

1/2-13 C-Z hex.

4шт.

8

490029R1

COVER, front valve

1шт.

9

471207R1

PIN

quick attachable cot.

1шт.

10

479603R1

TUBE

drill

1шт.

22262R1

PIN, 1/8 x 2-3/4 C-Z cot.

2шт.

11

472236R1

BRACKET

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z sq-nk crg

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.
