Запчасти Case IH 90 (R-19) - SEMI-AUTOMATIC MARKER, MARKER RODS AND CHAINS

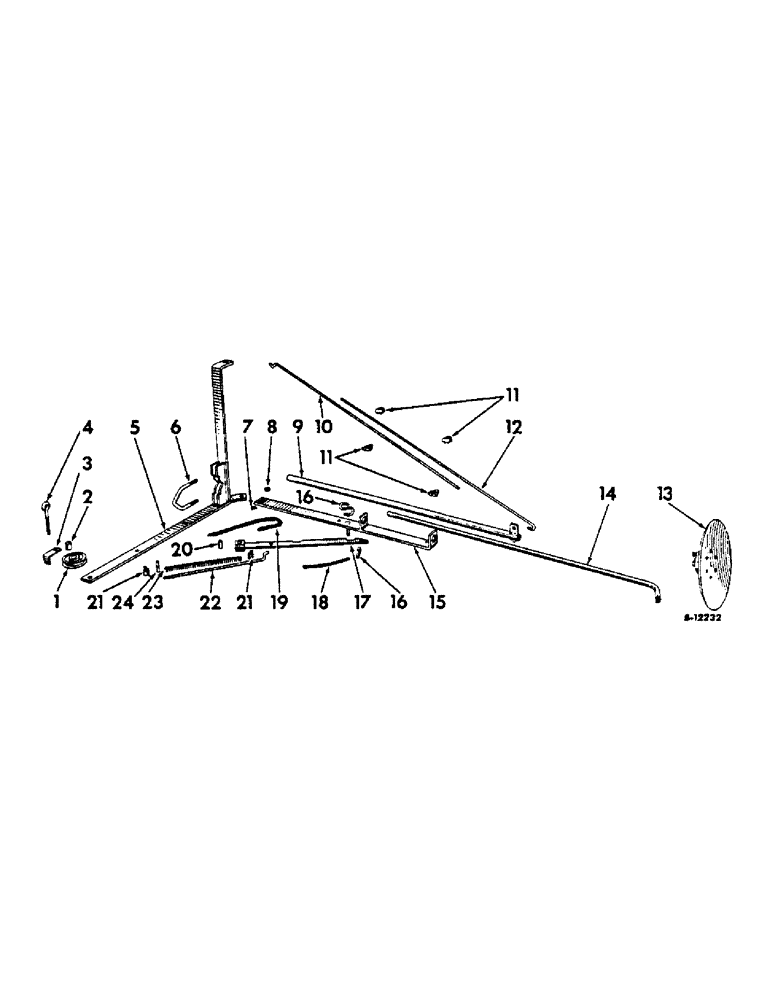

Схема запчастей Case IH 90 - (R-19) - SEMI-AUTOMATIC MARKER, MARKER RODS AND CHAINS
6
21
18
13
11
21
16
24
8
9
11
17
7
16
10
12
2
15
23
1
5
20
19
3
14
22
4

Артикул

Название

Примечание

Количество

1

527206R1

SHEAVE

2шт.

2

527207R1

BUSHING, sheave

2шт.

3

527208R1

RETAINER, chain

2шт.

4

527222R1

EYE BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

5

527201R92

SUPPORT ASSY, LH marker

1шт.

5

527202R92

SUPPORT ASSY, RH marker

1шт.

6

477105R1

U-BOLT

3шт.

102639

NUT,5/8"-11, G5

6шт.

10620P

WASHER

21/32 x 1-1/2 x 16 ga.

6шт.

7

PO2193

CLAMP

4шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1 sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

527216R1

BUSHING

marker pivot

2шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 C-Z hex-hd mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga. C-Z

2шт.

9

527214R11

PIPE ASSY, marker

2шт.

84983

SET SCREW,3/8" x 1"

SCREW, 3/8 x 1 C-Z cup-pt sq-hd set

2шт.

102635

NUT,3/8"-16, G5

2шт.

10

527218R1

TRUSS, upper

2шт.

11

5938

CLAMP, truss

8шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

527217R1

TRUSS, lower

2шт.

13

620446R91

DISK ASSY, with hub and bearing, disk marker

1шт.

14

525006R1

SHAFT, marker

1шт.

15

527219R11

ARM ASSY, pipe adj

2шт.

110452

SET SCREW

1/2 x 1-1/2 cup pt-sq-hd

2шт.

16

PO12729

HOOK

S HOOK, 1/4

2шт.

17

527209R11

LATCH ASSEMBLY

2шт.

18

ROPE, marker, 1/4 sisal 16 ft, purchase locally

2шт.

19

527226R91

CHAIN, lift, 26 feet

1шт.

20

527211R1

BUSHING

latch arm

2шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga. C-Z

2шт.

21

517951R11

WEAR PAD

COLLAR ASSY, set

4шт.

105111

FITTING

SCREW, 5/16-18 x 3/8 sq-hd cup-pt set

4шт.

22

527212R1

ROD, spring

2шт.

23

PO189

SPRING, compression

2шт.

24

527213R1

EYE, swivel

2шт.

13066R1

Pin, Split (Cotter), 1/8" x 1" 1/8" x 1"

2шт.

Выбрано товаров: 47
