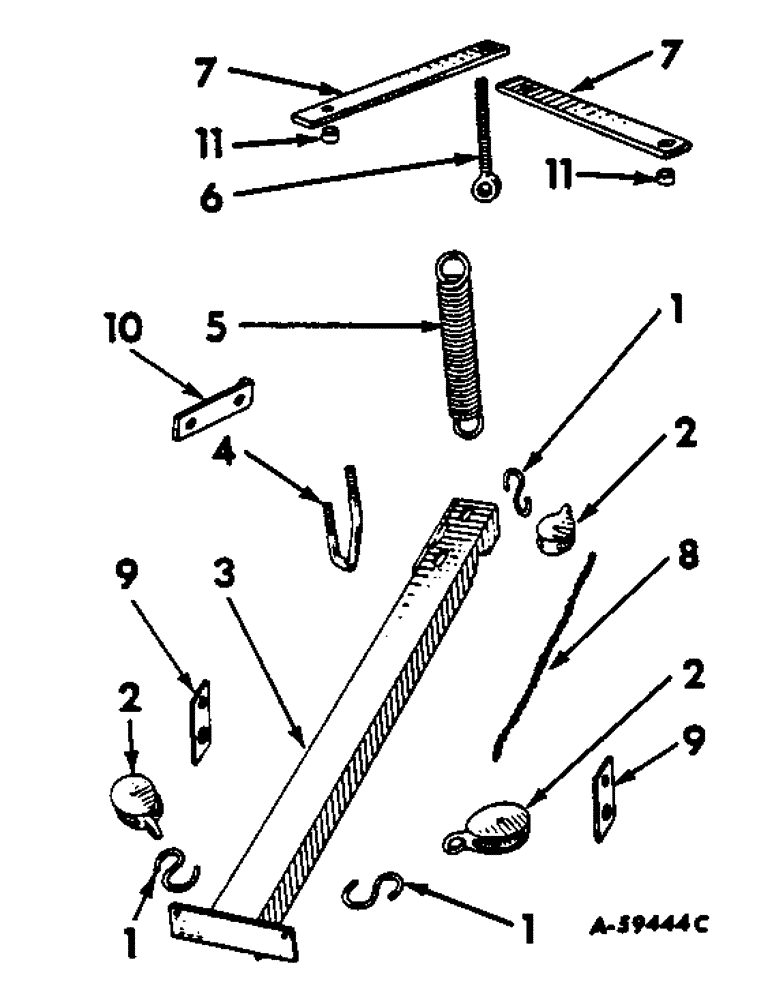

Запчасти Case IH 90 (R-18) - SEMI-AUTOMATIC MARKER, CENTER SUPPORT

1

520841R1

S HOOK

3шт.

2

527225R91

PULLEY

3шт.

3

527196R12

SUPPORT ASSY, center pulley

1шт.

4

477105R1

U-BOLT

3шт.

102639

NUT,5/8"-11, G5

6шт.

10620P

WASHER

21/32 x 1-1/2 x 16 ga

6шт.

5

462461R1

SPRING, marker lift chain

1шт.

6

527200R1

EYEBOLT,Eye, 3/4" - 10 x 6"

EYE BOLT

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

2шт.

280954

NUT,3/4"-10, G5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

527199R2

ANCHOR, spring

2шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 C-Z hex-hd mach

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

8

527226R91

CHAIN, lift, 26 feet

1шт.

9

(Not used in this application)

1шт.

10

(Not used in this application)

1шт.

11

665434R1

SPACER

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 C-Z hex-hd cap

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
