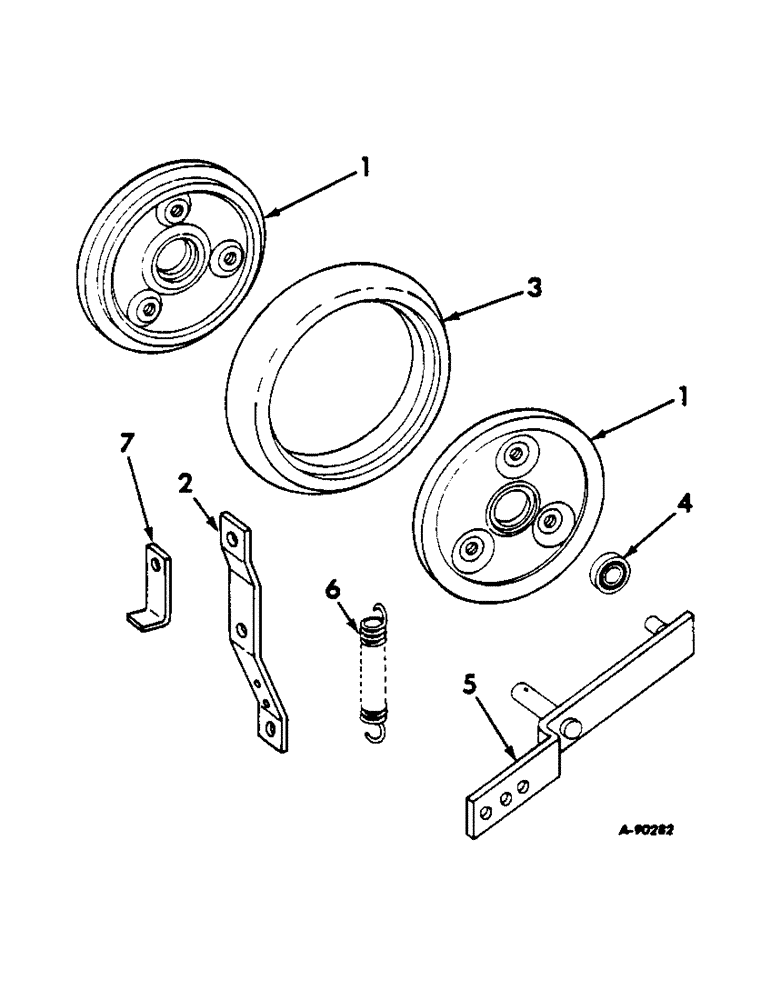

Запчасти Case IH 90 (R-12) - SEED FIRMING WHEEL ATTACHMENT, FOR DRILL ONLY, ONE PER ROW

1

527151R1

PLATE

WHEEL, seed firming disc

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

2

490317R1

SUPPORT, firming wheel

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

527227R1

TYRE/TIRE

TIRE, 7 x 1 semi-pneumatic

1шт.

467880R91

BALL BEARING,0.503" ID x 1.375" OD x 0.4331"

ASSY, seed firming ball

1шт.

4

471214R91

BRACKET

PIVOT ASSY, wheel

1шт.

20869R1

WASHER

17/32 x 7/8 x 16 ga C-Z

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot.

1шт.

21634R1

PIN, 3/16 x 1 C-Z self-opening cot.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x 16 ga C-Z

1шт.

446354

WASHER,1/4"

5/16 x 7/8 x 16 ga C-Z

1шт.

5

622016R1

SPRING

extension

1шт.

6

477834R1

STOP, firming wheel

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.
