Запчасти Case IH 90 (R-11) - SEED FIRMING WHEEL, FOR LONG RUNNER OPENER

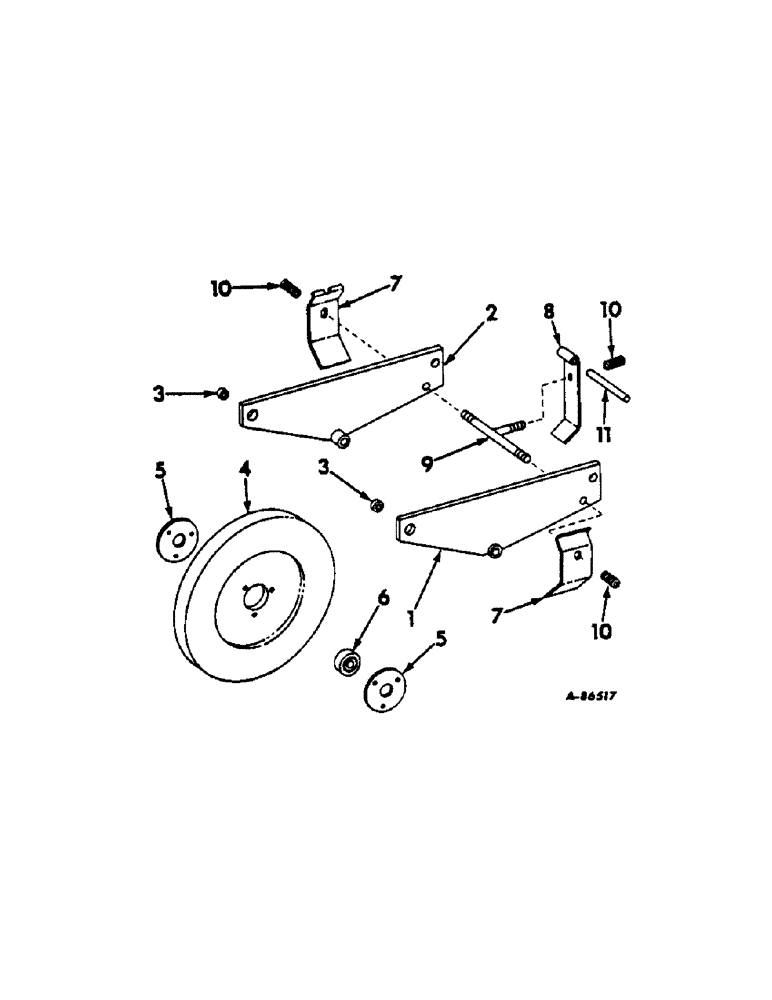

Схема запчастей Case IH 90 - (R-11) - SEED FIRMING WHEEL, FOR LONG RUNNER OPENER
8
10
4
6
10
7
10
5
11
1
7
3
2
9
3
5

Артикул

Название

Примечание

Количество

1

482510R91

PLATE ASSY, LH

1шт.

2

482511R91

PLATE ASSY, RH

1шт.

127507H

WASHER

13/32 x 7/8 x 7 ga

2шт.

3

104936R1

WASHER

SPACER, seed firming pivot

2шт.

575807R1

WASHER

13/32 x 1 x 11 ga

4шт.

4

482514R1

WHEEL, seed firming

1шт.

13856R1

RIVET, 1/4 x 7/8 54 deg csk-hd solid

3шт.

5

482515R1

RETAINER, wheel brg

2шт.

17650R1

BOLT, 1/2 x 3-1/4 hex-hd mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

102637

NUT,1/2"-13, G5

1шт.

6

467880R91

BALL BEARING,0.503" ID x 1.375" OD x 0.4331"

ASSY, firming wheel ball

1шт.

7

482516R1

SUPPORT

BLADE, side scraper

2шт.

8

482517R1

SUPPORT

BLADE, rear scraper

1шт.

9

482518R11

SHAFT

STUD ASSY, spring mounting

1шт.

Q397

WASHER

13/32 x 3/4 x 16 ga

6шт.

18252R1

NUT,5/16"-18, GB

5/16-18 hex. ESNA stop

3шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

2шт.

10

51354DA

VALVE SPRING

SPRING, replaces 6633

3шт.

11

482520R1

PIN, scraper pivot

1шт.

13054R1

PIN, 1/8 x 7/8 self-opening cot.

2шт.

Выбрано товаров: 21
