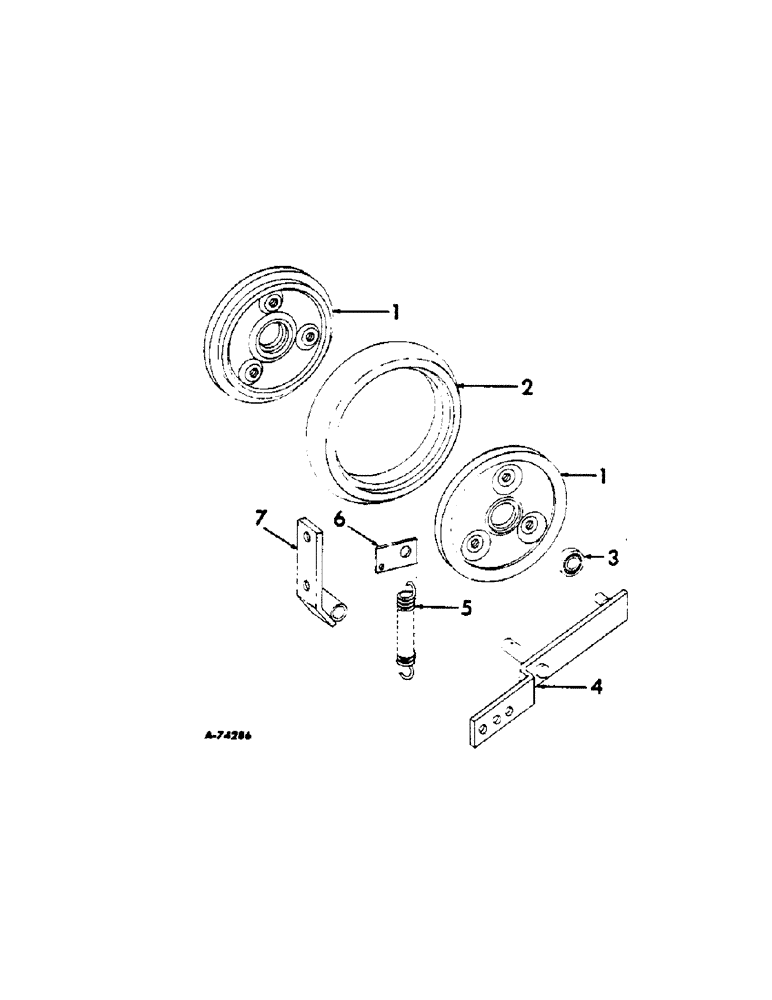

Запчасти Case IH 90 (R-11[A]) - SEED FIRMING WHEEL, FOR SHORT RUNNER OPENER

1

527151R1

PLATE

WHEEL, seed firming disc

4шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4-20 x 3/4 C-Z hex-hd mach

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

2

527227R1

TYRE/TIRE

TIRE, 7 x 1 semi-pneumatic

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

467880R91

BALL BEARING,0.503" ID x 1.375" OD x 0.4331"

ASSY, seed firming ball

2шт.

4

471214R91

BRACKET

PIVOT ASSY, wheel

2шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

2шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

2шт.

13069R1

PIN, 1/4 x 1 self-opening cot.

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4-20 x 1/2 hex-hd mach

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x 16 ga C-Z

2шт.

446354

WASHER,1/4"

5/16 x 7/8 x 16 ga C-Z

2шт.

5

207199R1

SPRING

extension

2шт.

6

471217R1

CLIP

spring

2шт.

7

471218R11

SUPPORT

ASSY, wheel pivot

2шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16-18 x 1-1/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
