Запчасти Case IH 90 (R-10) - 3 POINT HITCH AND TOOL BAR CLAMP

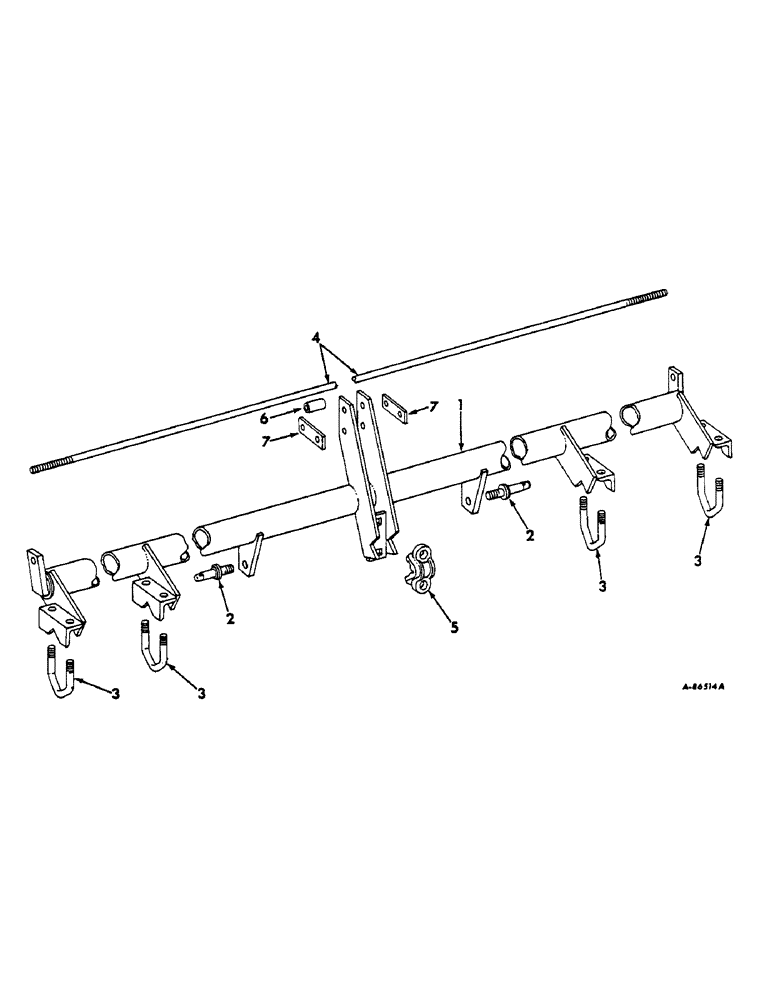

Схема запчастей Case IH 90 - (R-10) - 3 POINT HITCH AND TOOL BAR CLAMP
2
7
4
3
7
5
3
2
6
3
3
1

Артикул

Название

Примечание

Количество

1

482440R91

FRAME ASSY, 4 row

1шт.

1

485683R1

FRAME ASSY, orrder 486850R1

1шт.

1

486850R1

FRAME ASSY, 6 row and 4 row skip, also order ref. no. 6 and attaching hardware

1шт.

20577R1

BOLT,Hex, 7/8" - 9 x 7", Gr 5

SCREW, 7/8-9 x 7 C-Z hex-hd cap

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

427643

SLOTTED NUT,7/8"-9, G5

NUT, 7/8-9 C-Z hex.

2шт.

2

472790R1

STUD

lower

2шт.

131049

HYD CONNECTOR

1-1/8 C-Z med lock

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 C-Z hex.

2шт.

3

526003R1

BOLT

U, 2 for 4 row

1шт.

427643

SLOTTED NUT,7/8"-9, G5

NUT, 7/8-9 C-Z hex.

4шт.

131047

WASHER,7/8"

7/8"

4шт.

4

483167R1

ROD

tie

1шт.

280954

NUT,3/4"-10, G5

4шт.

5

523962R2

CLAMP

CAP, clamp, 4 row w/2-point hitch

1шт.

17886R1

BOLTS, 7/8 x 6 hex-hd mach

2шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

6

462425R1

SPACER

mast

1шт.

280954

NUT,3/4"-10, G5

1шт.

271618

BOLT,Hex, 3/4" - 10 x 3 3/4", Gr 5

SCREW, 3/4 x 3-3/4 hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

7

486851R1

BAR, truss rod clip

2шт.

280954

NUT,3/4"-10, G5

1шт.

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

SCREW, 3/4 x 4-3/4 hex-hd cap , Course threads

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

Выбрано товаров: 26
