Запчасти Case IH 90 (R-09) - COMBINATION HOPPER, OFFSET SIDE, ONE PER ROW

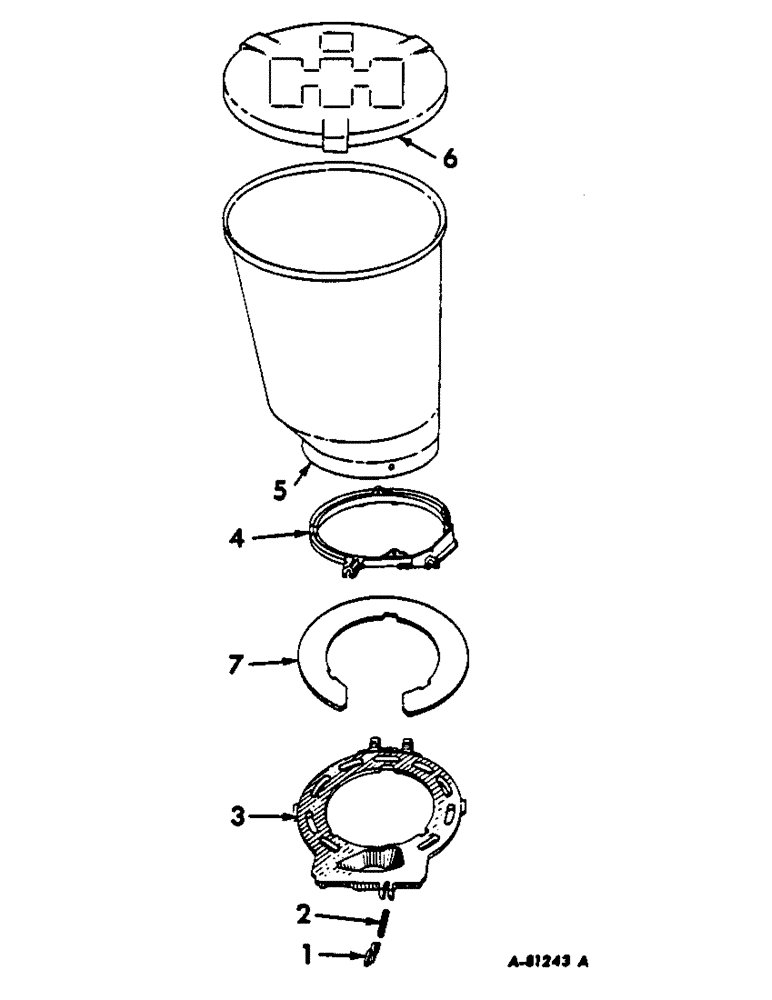

Схема запчастей Case IH 90 - (R-09) - COMBINATION HOPPER, OFFSET SIDE, ONE PER ROW
6
3
5
1
4
7
2

Артикул

Название

Примечание

Количество

1

621710R1

LATCH

hopper bottom plate

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , Ext prong 3/16" x 1"

1шт.

2

606245R1

SPRING

latch

1шт.

3

621704R1

PLATE

hopper bottom, for service replacement order one plate, 488816R1 and one bottom plate, 488815R1

1шт.

3

488815R1

PLATE, hopper bottom

1шт.

N95023

PIN, 5/16 x 3-5/8, std. no. 77

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

4

478563R1

RING

combination hopper bottom

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga C-Z

4шт.

138538

LOCK WASHER

WASHER, 5/16 C-Z int tooth lock

4шт.

5

478559R11

HOPPER

ASSY, fiberglass seed, offset

1шт.

6

474852R1

COVER

polyethylene seed hopper, offset

1шт.

7

488816R1

RING

PLATE, wear ring

1шт.

Выбрано товаров: 14
