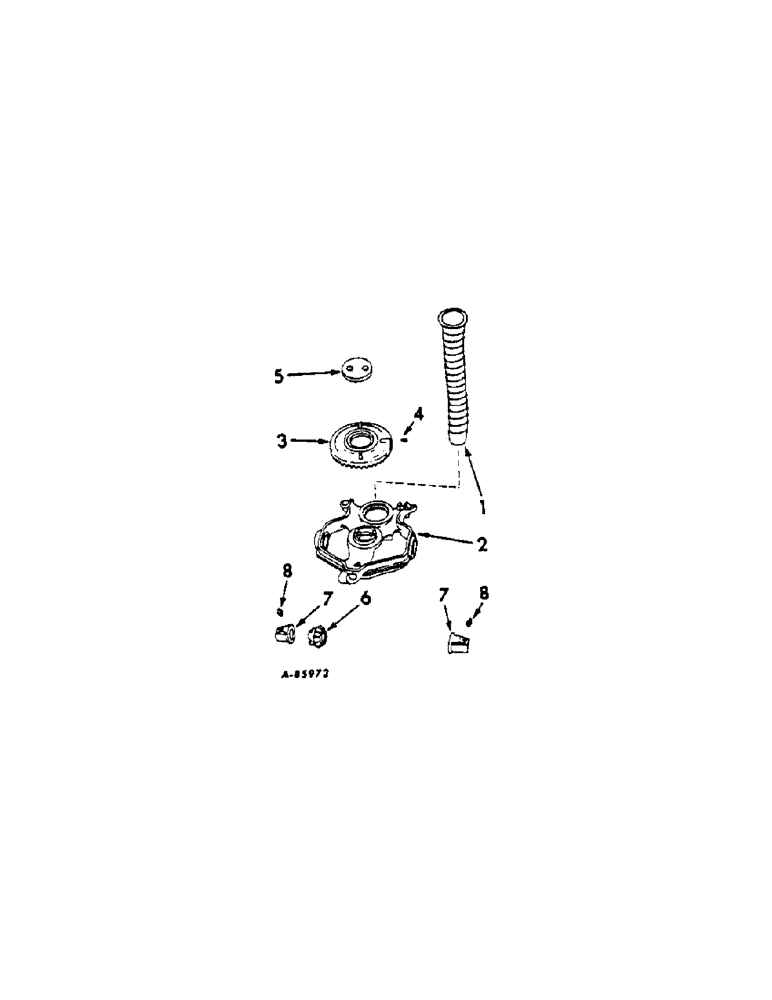

Запчасти Case IH 87 (Q-06) - HOPPER BRACKET, ONE PER ROW, 1966 TO 1977

1

512605R2

TUBE

seed 22 inches long

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

462500R2

FRAME

BRACKET, hopper

1шт.

18898R1

BOLT, 5/16 x 2-1/4 C-Z sq-hd mach

2шт.

13378R1

BOLT

1/2 x 2-1/2 sq-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

7500032

BUSHING

NUT, 5/16-18 C-Z wing

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

622120R21

GEAR

ASSY, double 20T and 40T ring

1шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 str drive type lub

1шт.

5

462502R1

RETAINER

WASHER, ring gear retainer

1шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8"

2шт.

138604

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, 1/4 C-Z cks ext-tooth lock

2шт.

6

471196R1

GEAR WHEEL

PINION, 12T bevel

1шт.

7

PO2507

BEARING

hopper drive bar

2шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, In shaft bearing 1/8"-27 x .66 lg

2шт.
