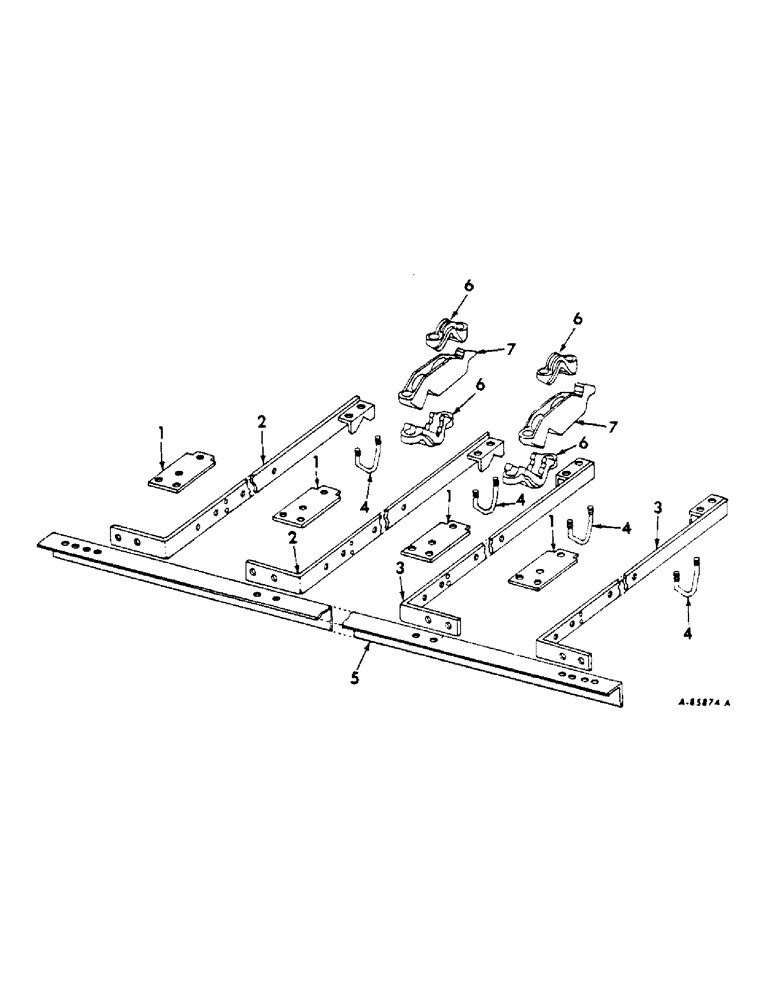

Запчасти Case IH 87 (Q-05) - HOPPER SUPPORT, ONE PER ROW

1

483054R1

BAR

PLATE, hopper support

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hed mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

483055R91

SUPPORT

BAR ASSY, hopper support left

1шт.

3

483056R91

BAR ASSY, hopper support right

1шт.

4

483045R1

BOLT,3/4" - 10 x 5.2"

attaching U

1шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

5

486401R1

ANGLE, hopper support, six row

1шт.

5

483059R1

ANGLE

hopper support, four row

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8-11 C-Z hex.

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

523962R2

CLAMP

CAP, beam

1шт.

271689

WASHER,Hex, 7/8" - 14 x 4 3/4", Gr 5

SCREW, 7/8-14 x 4-3/4 hex-hd cap

4шт.

426767

NUT,7/8"-14, G5

7/8-14 C-Z hex.

4шт.

7

475514R1

BRACKET

clamp

1шт.
