Запчасти Case IH 87 (Q-03) - MAIN FRAME AND GAUGE WHEEL, ONE PER ROW

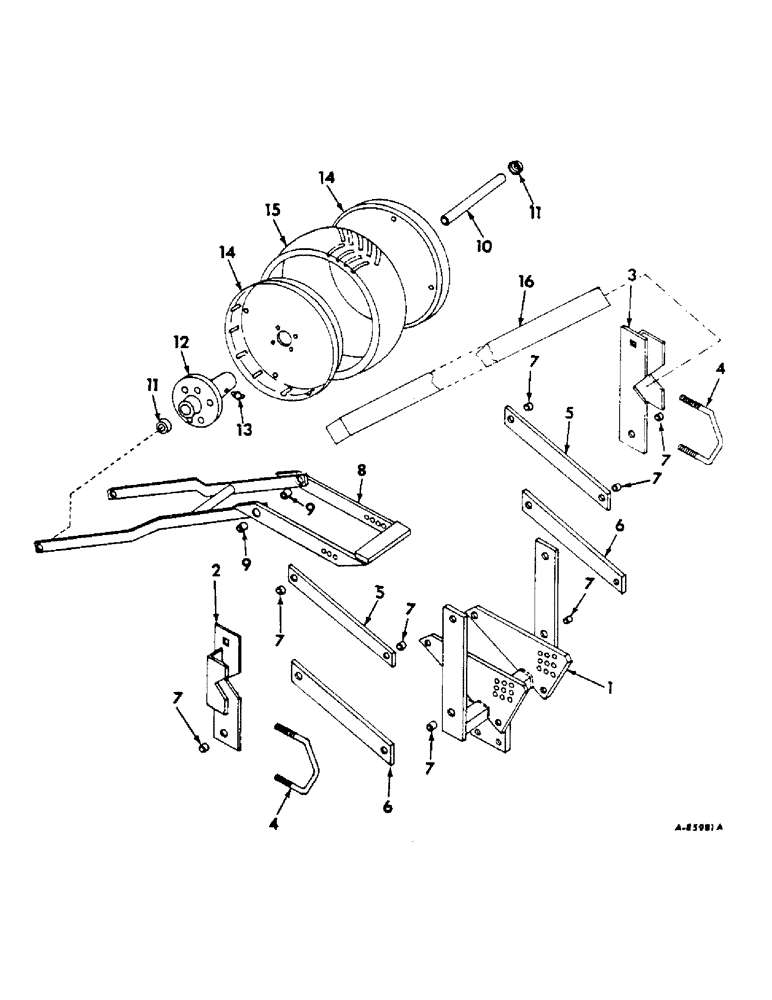

Схема запчастей Case IH 87 - (Q-03) - MAIN FRAME AND GAUGE WHEEL, ONE PER ROW
11
2
7
7
5
4
9
15
5
10
7
6
3
7
11
1
4
7
9
13
6
14
7
16
14
8
7
12
7

Артикул

Название

Примечание

Количество

1

483036R92

FRAME

ASSY, main unit

1шт.

483070R1

PIN

7/16 x 1-1/2 std-hd pointed

2шт.

473443R1

COTTER PIN

quick attachable cot.

2шт.

2

483041R91

BRACKET

ASSY, LH attaching

1шт.

3

483042R91

BRACKET

ASSY, RH attaching

1шт.

4

483045R1

BOLT,3/4" - 10 x 5.2"

attaching U

2шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

5

486400R1

BAR, parallel link strap upper, will work for 483017R1

2шт.

6

483046R1

BAR

parallel link strap lower

2шт.

7

483048R1

BUSHING

pivot

8шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z sq-nk crg

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

45794D

WASHER, pivot bushing

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

8

483049R91

FRAME

ASSY, gauge wheel, for 4 x 16 tire

1шт.

8

60103C1

FRAME

ASSY, gauge wheel, for 7 x 16 tire

1шт.

9

610399R1

SPACER,13.9mm ID x 21.34mm OD x 9.5mm L

BUSHING, gauge wheel bar

2шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2 x 2 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

10

519893R1

BUSHING

gauge wheel

1шт.

17275R1

BOLT,Hex, 3/4"-10 x 6 1/2", G2

3/4 x 6-1/2 C-Z hex-hd mach

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z

2шт.

11

516569R1

WASHER

COLLAR, sand

2шт.

12

516564R3

HUB, gauge wheel

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

1шт.

13

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub, gauge wheel hub

1шт.

14

517239R1

RIM, gauge wheel half, for 4 x 16 tire

2шт.

14

119729C1

WHEEL

RIM, gauge wheel half, for 7 x 16 tire

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

15

524666R1

TYRE/TIRE

TIRE, semi-pneumatic, 4 x 16 light duty

1шт.

15

119747C1

TYRE/TIRE

TIRE, semi-pneumatic, 7 x 16 flat tread

1шт.

16

524688R1

BAR, 2-1/4 solid square x 144 in. long

1шт.

16

517754R1

BAR, 2/1-4 solid square x 133 in. long, four row

1шт.

16

477002R1

BAR, 2-1/4 solid square x 230 in. long, six row

1шт.

Выбрано товаров: 44
