Запчасти Case IH 87 (Q-21) - TWO POINT FAST HITCH, FOR 4-ROW PLANTERS

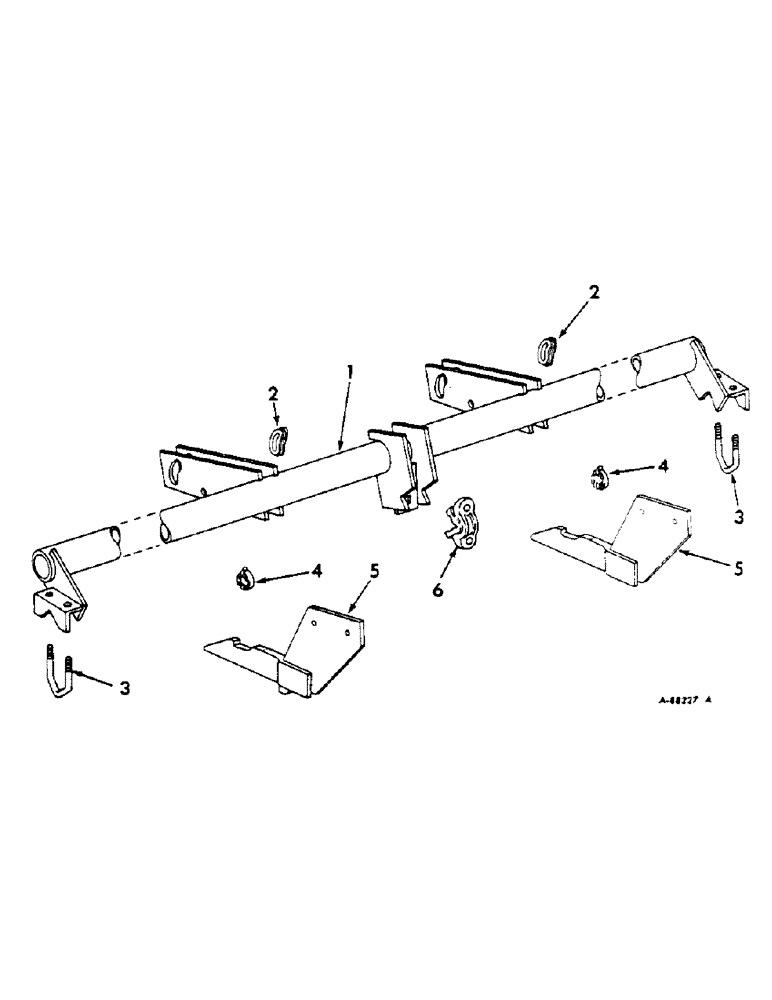

Схема запчастей Case IH 87 - (Q-21) - TWO POINT FAST HITCH, FOR 4-ROW PLANTERS
5
5
3
1
6
3
4
4
2
2

Артикул

Название

Примечание

Количество

1

486410R1

FRAME ASSEMBLY

1шт.

2

526288R1

ADJUSTER

coupling beam

4шт.

3

526003R1

BOLT

U

2шт.

NLS

NO LONGER SERVICED

7/8"

4шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

4

521084R2

WASHER

coupling beam, serrated

4шт.

5

475502R91

BEAM ASSY

2шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap

2шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 C-Z hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

6

523962R2

CLAMP

bracket

1шт.

20294R1

BOLT, 7/8 x 5-1/2 sq-nk crg

2шт.

131047

WASHER,7/8"

7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

Выбрано товаров: 15
