Запчасти Case IH 87 (Q-20) - THREE POINT HITCH, FOR 4 AND 6-ROW PLANTERS

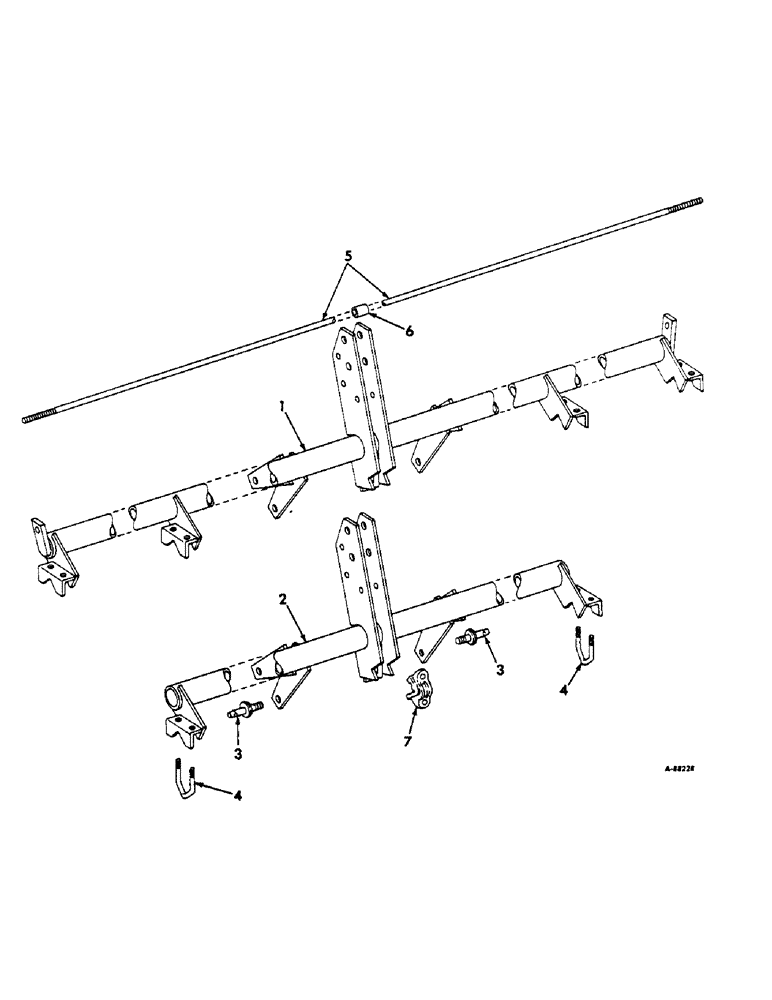

Схема запчастей Case IH 87 - (Q-20) - THREE POINT HITCH, FOR 4 AND 6-ROW PLANTERS
3
1
4
6
3
7
4
2
5

Артикул

Название

Примечание

Количество

1

486403R1

FRAME ASSY, six row

1шт.

2

486409R1

FRAME ASSY, four row

1шт.

3

472790R1

STUD

lower

2шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8 C-Z med lock

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 C-Z hex.

2шт.

4

526003R2

BOLT,U, 7/8" - 9 x 4

U, 4 used for six row, 2 used for four row

1шт.

NLS

NO LONGER SERVICED

8 used for six row, 4 used for four row 7/8"

1шт.

425-1014

NUT,7/8"-9, G5

NUT, ., 8 used for six row, 4 used for four row 7/8"-9, G5

1шт.

5

483167R1

ROD

TIE, six row

1шт.

280954

NUT,3/4"-10, G5

4шт.

6

462425R1

SPACER

mast

1шт.

18841R1

BOLT,Hex, 3/4"-10 x 4", G2

3/4-10 x 4 C-Z hex-hd mach

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

NLS

NO LONGER SERVICED

NUT, 3/4-10 C-Z thick hex. (PN 272254)

1шт.

7

523962R2

CLAMP

bracket

1шт.

20294R1

BOLT, 7/8 x 5-1/2 sq-nk crg

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

Выбрано товаров: 18
