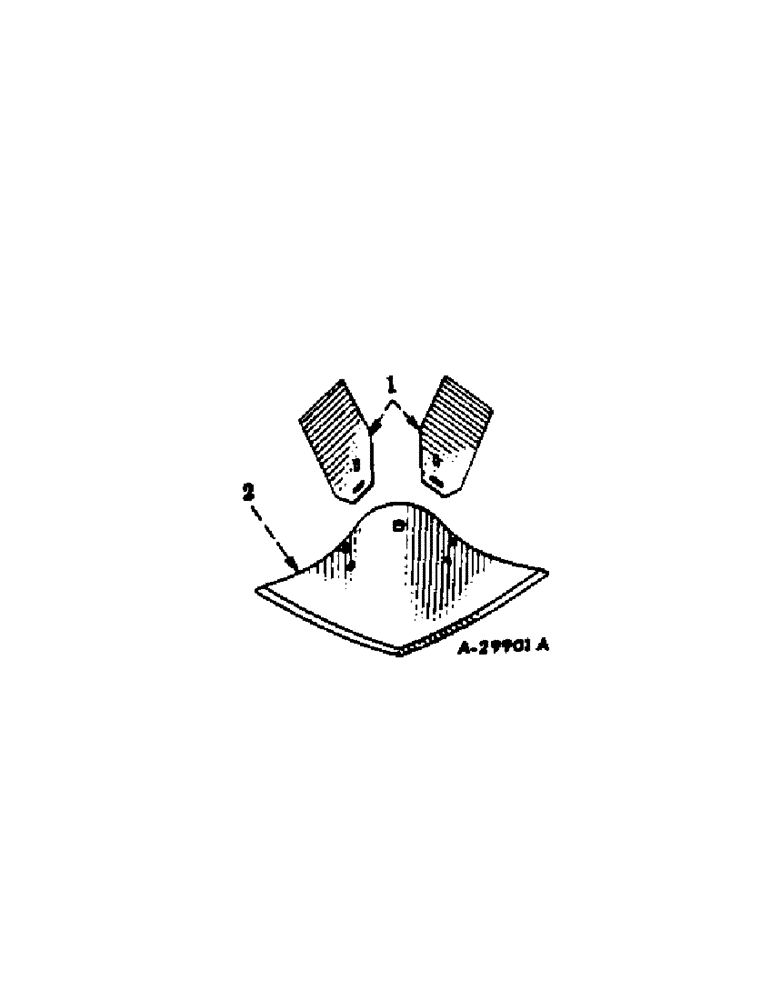

Запчасти Case IH 87 (Q-19[A]) - MODIFIED PLANTER SWEEPS

1

517675R1

WING, planter sweep

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

3/8 x 1 no. 3 plow

2шт.

Q1505

WASHER

13/32 x 1 x 16 ga

2шт.

102635

NUT,3/8"-16, G5

2шт.

2

517669R11

SWEEP W/STUD, 16 in.

1шт.

2

517670R11

SWEEP W/STUD, 18 in.

1шт.

2

517671R11

SWEEP W/STUD, 20 in.

1шт.

2

517672R11

SWEEP W/STUD, 22 in.

1шт.

2

517673R11

SWEEP W/STUD, 24 in.

1шт.

517674R1

STUD, sweep

1шт.
