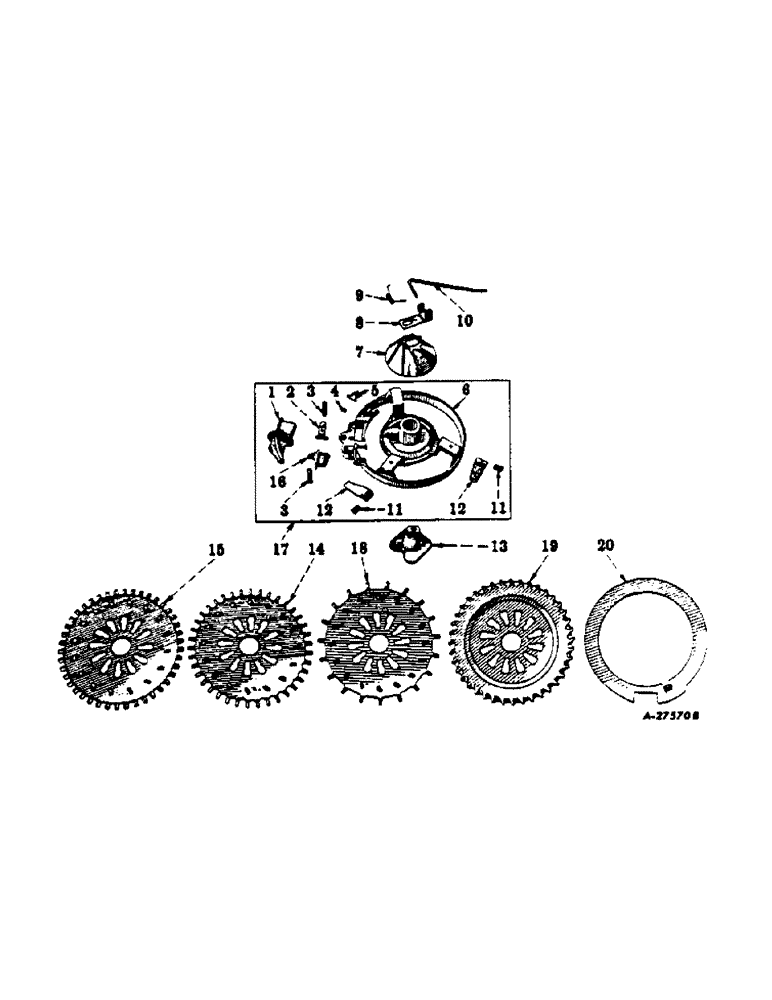

Запчасти Case IH 87 (Q-15) - COTTON PLANTING EQUIPMENT, ONE PER ROW, 1966 TO 1977
№
Артикул
Название
Примечание
Количество
1
621714R2
CAP, pawl cover, for combination steel hopper
1шт.
1
486796R1
CAP
pawl cover, for combination fiberglass hopper
1шт.
843381C1
SQUARE NUT,Sq. 1/4"-20
1/4-20 C-Z sq-hd mach
1шт.
133043
SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"
1/4-20 x 3/4 slt-rd-hd mach
1шт.
2
621721R6
KNOCKER
1шт.
3
PO51
SPRING
cut-off and knocker
2шт.
4
125617
LUBE NIPPLE,3/16" x .61 lg, Drive
FITTING, 3/16 drive type str lub
1шт.
5
13607AB
HINGE
GATE, hinged
1шт.
6
621713R31
BOTTOM ASSY, cotton
1шт.
7
621716R1
PLATE
cotton agitator
1шт.
8
621725R92
ARM
ASSY, agitator, main piece
1шт.
9
PO26760
SPRING
agitator
1шт.
10
622259R1
ARM
spring agitator
1шт.
11
445135
NUT
10-24 mach spring nut
2шт.
120221
NUT,Sl Rnd Hd, #10 - 24 x 1/2"
SCREW, 10-24 x 1/2 C-Z slt-rd-hd mach
2шт.
12
PO16047A
VALVE SPRING
SPRING, seed
2шт.
13
480698R1
STUD
agitator drive
1шт.
18495R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
3/8-16 x 1-1/4 C-Z hex-hd mach
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
551173R1
WASHER
13/32 x 1-1/8 x 16 ga
1шт.
14
621717R3
PLATE
cotton seed, 38 large cells, requires 622481R1 filler ring
1шт.
15
621719R3
PLATE
cotton seed, 42 cells
1шт.
16
621723R1
KNIFE
CUT-OFF
1шт.
17
622185R94
HOPPER
BOTTOM ASSY, cotton, for combination steel hopper
1шт.
17
486797R91
BOTTOM
ASSY, cotton, for combination fiberglass hopper
1шт.
18
622424R1
PLATE
seed, 19 large cells, for gin run and reginned cotton
1шт.
18
477025R1
PLATE
seed, 16 cells 5/16 x 11/32, for machine delinted cotton seed
1шт.
18
477026R1
PLATE
seed, 16 cells 3/8 x 13/32, for mach delinted cotton seed
1шт.
18
477027R1
PLATE
seed, 16 cells 7/16 x 17/32, for machine delinted cotton seed
1шт.
18
477028R1
PLATE
seed, 16 cells 1/2 x 19/32, for machine delinted cotton seed
1шт.
19
622480R1
PLATE
seed, 40 small tin cells, for acid & machine delinted cotton seed, also order ring, 622481R1
1шт.
20
622481R1
RING
filler, for 621717R1 and 622480R1 seed plates
1шт.
Выбрано товаров: 32
