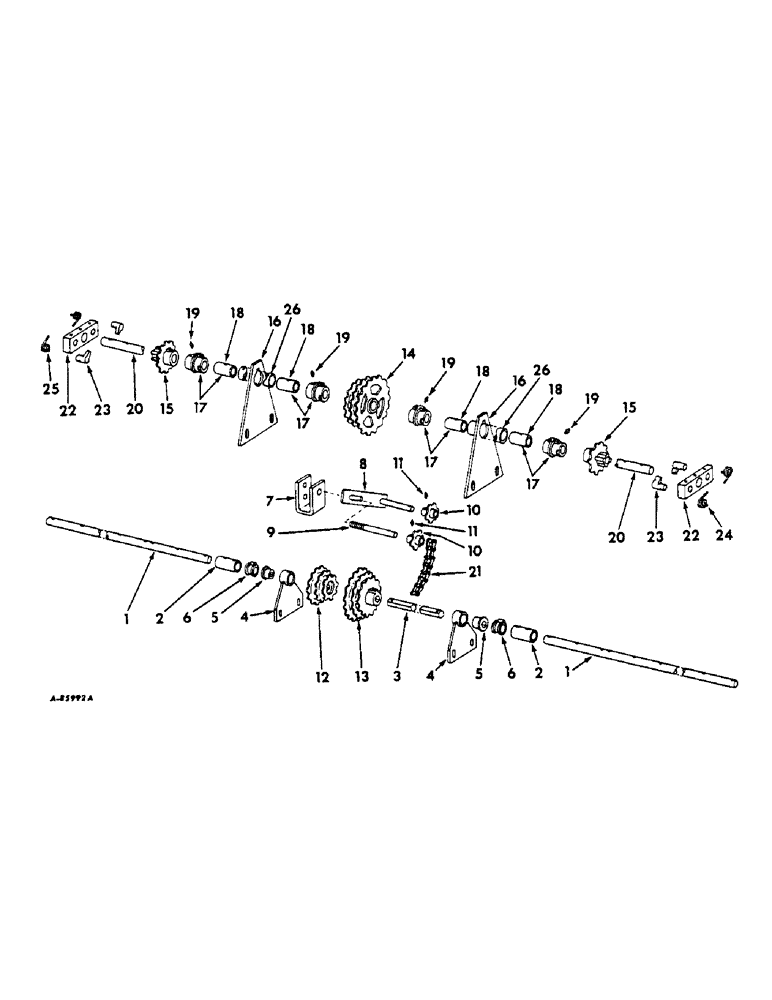

Запчасти Case IH 87 (Q-07) - HOPPER DRIVE

1

486416R1

ROD

hopper drive, six row

2шт.

1

483060R1

ROD

hopper drive, four row

2шт.

21961R1

PIN, 1/4 x 1-9/16 std-hd

1шт.

21977R1

PIN, 1/8 x 5/8 self-opening cot.

1шт.

33405A

WASHER

WASHER, 25/32 x 1-1/8 x 22 ga

3шт.

2

626102R1

SPACER

COUPLING, drive rod connector

2шт.

21983R1

PIN, 3/16 x 1-3/4 self-opening cot.

4шт.

3

483061R1

ROD

seed hopper drive

1шт.

4

483062R91

PLATE

ASSY, drive shaft bearing

2шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

625569R1

HUB CAP

BEARING, hopper drive bar

2шт.

6

1431BX

COLLAR CLAMP

COLLAR W/SET SCREW, feed bar

2шт.

21689R1

SCREW

1/2 x 3/4 znp sq/hd c/pt set

1шт.

6

PO2041X

COLLAR

W/SET SCREW

2шт.

21803R1

SET SCREW,1/2" - 13 x 5/8", Steel

SCREW, 1/2 x 5/8 znp c/pt sq/hd set

1шт.

7

483064R1

CHANNEL

BRACKET, chain tightener

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

475465R91

BRACKET

TIGHTENER ASSY, chain

1шт.

9

475464R1

SHAFT

PIVOT, chain tightener

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

13068R1

PIN,3/16" x 1"

3/16 x 1-1/4 self-opening cot.

2шт.

178374

SPARE PART

WASHER, 17/32 x 1-1/4 x 16 ga C-Z

1шт.

10

472344R2

DRIVE SPROCKET

SPROCKET, chain tighener idler, 6T

6шт.

11

66584D

FITTING

3/16 str drive type lub, in idler sprocket

6шт.

12

472337R1

SPROCKET ASSY.

SPROCKET, feed bar, 8T, 10T, 12T

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

126156

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW, 3/8-16 x 7/8 sq-hd cup-pt set

1шт.

13

473862R1

SPROCKET ASSY.

SPROCKET, feed bar, 13T, 16T, 17T

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

126156

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW, 3/8-16 x 7/8 sq-hd cup-pt set

1шт.

14

482443R1

SPROCKET ASSY.

SPROCKET

1шт.

21835R1

HEADED PIN,5/16" x 1 3/4"

PIN, 5/16 x 1-3/4 std-hd

1шт.

21628R1

PIN

1/8 x 3/4 self-opening cot.

1шт.

15

482616R1

SPROCKET ASSY.

SPROCKET, drive, 10T

2шт.

16

486415R1

BLOCK

PLATE, main drive bar brg

4шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z hex-hd mach

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

17

481812R11

BEARING ASSY

ASSY, main drive bar

6шт.

18

484060R1

BUSHING

brg

6шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot.

6шт.

481810R1

WASHER

keyed

2шт.

589937R1

WASHER

wear

8шт.

19

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 unf 2A str lub

2шт.

20

486402R1

ROD

main drive, center

1шт.

20

486412R1

ROD

main drive, outside

1шт.

13120R1

Pin, Split (Cotter), 3/16" x 1 1/2", self-opening 3/16" x 1 1/2"

4шт.

21

CHAIN, main drive rod to feed rod, use 43 links 1 inch extended pitch agriculture transmission roll chain from 10 ft roll marked, 569088R91, (1) connecting link, 457113R91, and (1) offset link, 457114R91

1шт.

22

472328R1

CARRIER

pivot

2шт.

21835R1

HEADED PIN,5/16" x 1 3/4"

PIN, 5/16 x 1-3/4 std-hd

2шт.

21630R1

COTTER PIN

PIN, 1/8 x 1 self-opening cot.

2шт.

137190

PIN,1/8" x 1 1/8"

1/8" x 1-1/8"

4шт.

23

472329R1

PAWL

drive sprocket

4шт.

24

472722R1

SPRING

RH wheel ratchet

2шт.

25

472721R1

SPRING

LH wheel ratchet

2шт.

26

486413R1

TUBE

main drive coupling, six row

2шт.

26

486414R1

TUBE

main drive coupling, four row

1шт.

20945R1

HEADED PIN,1/4" x 2 3/4"

PIN, 1/4 x 2-3/4 std-hd C-Z

4шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x 16 ga C-Z

4шт.

21628R1

PIN

1/8 x 3/4 self-opening cot.

4шт.
